Drum Clamp F89701, 2,000 lb. Capacity
π Hover to zoom Β· Click βΆ for gallery

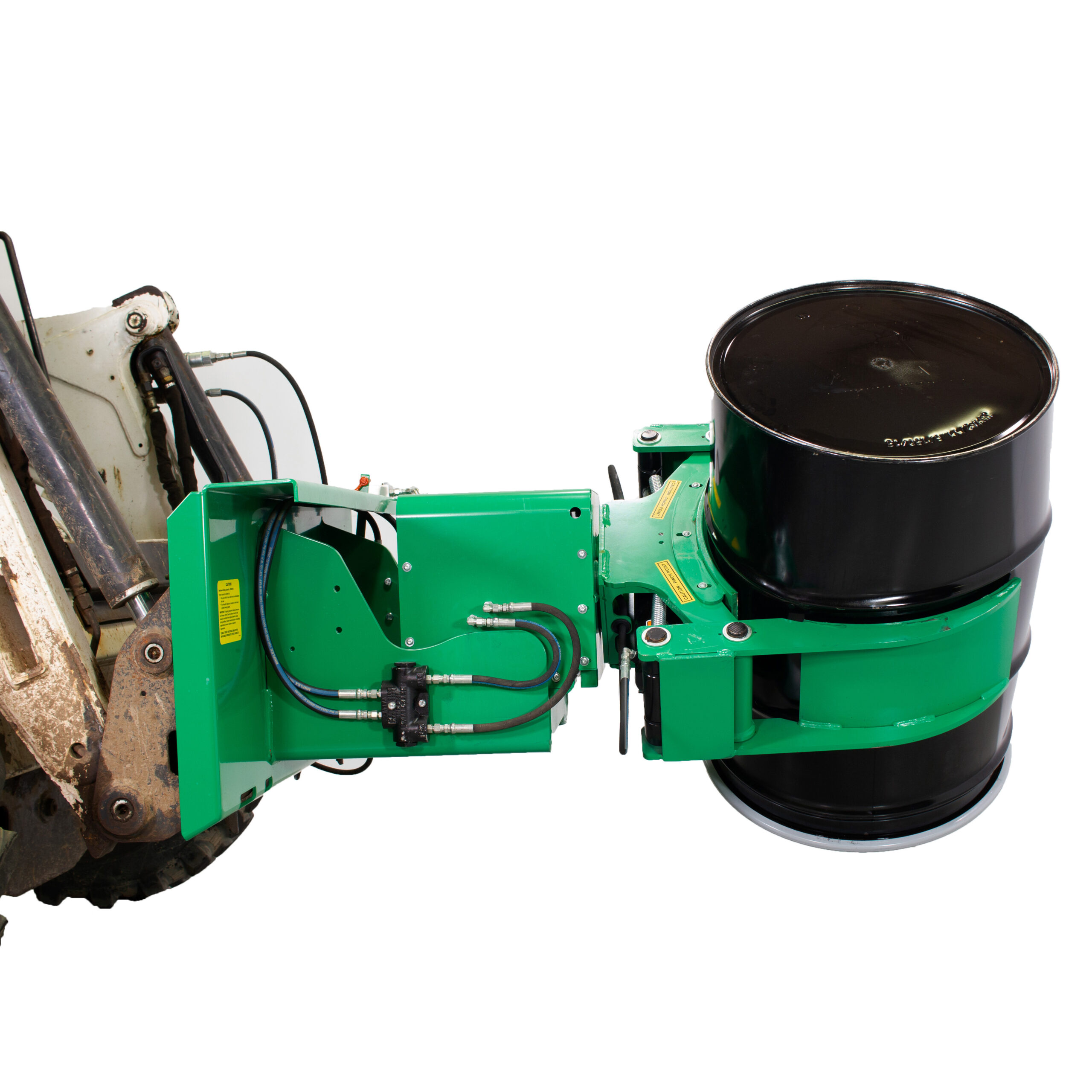

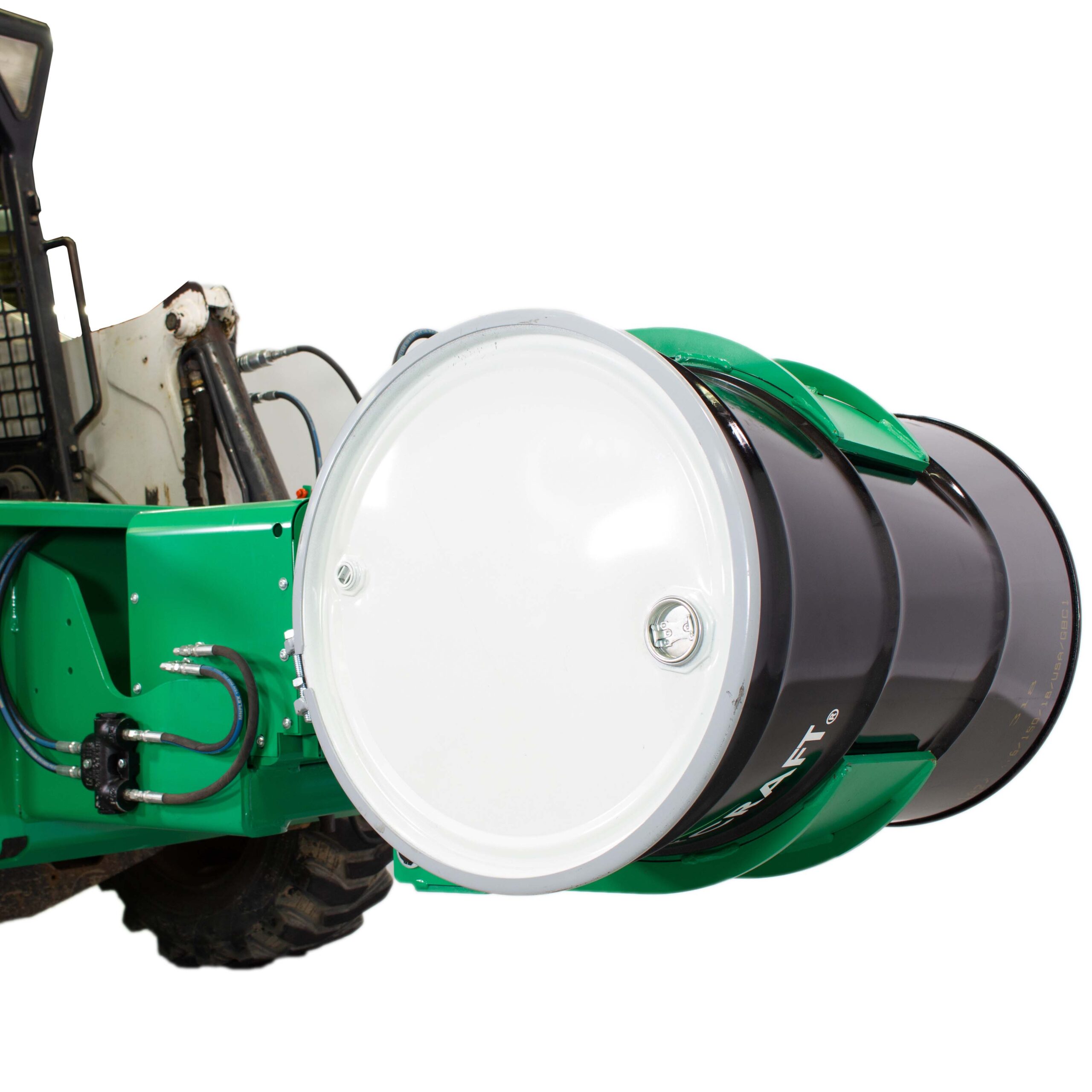

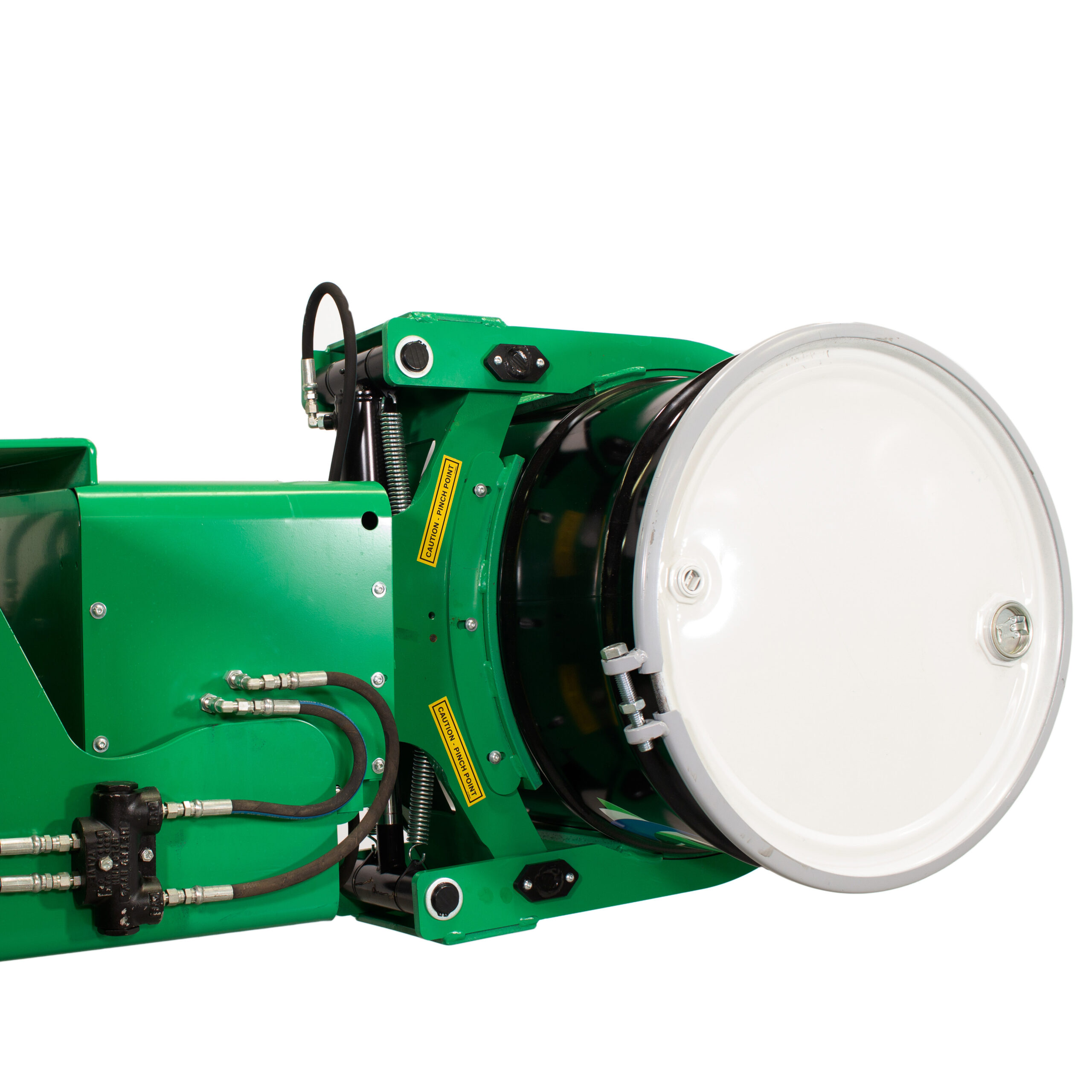

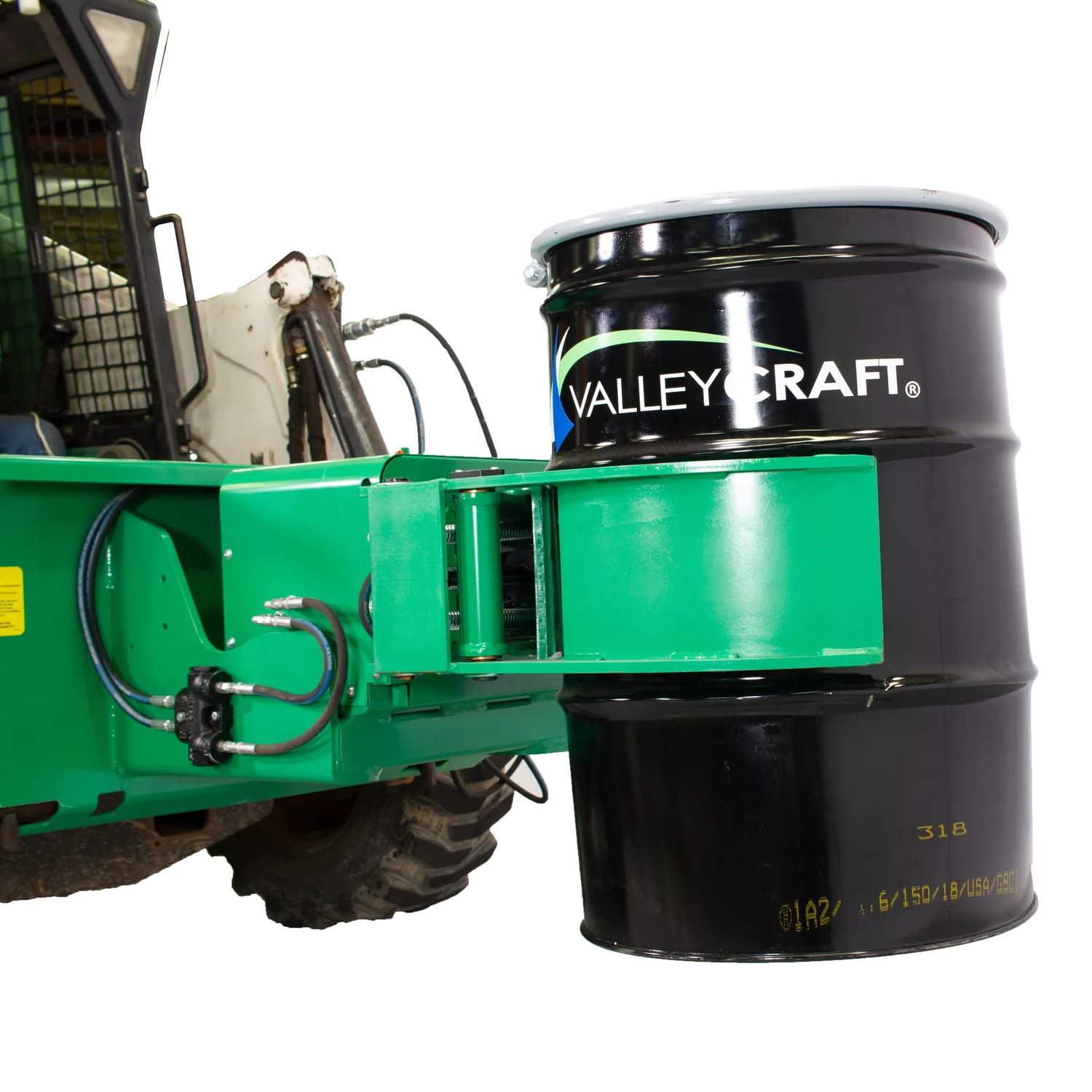

Valley Craft (F89698)Drum Clamp & Rotate Powered Skid Steer Attachment is the perfect tool for efficiently transporting, rotating, and storing drums. This skid steer powered unit features an easy to use quick-connect coupler system for attachment to your skid steer auxiliary circuit. The hydraulic actuated jaws with adjustable pressure gauge provide a powerful grip, and the unit offers variable speed control. Compatible with steel, plastic, and fiber drums ranging from 30-85 gallons in size, it has a load capacity of 2,000 lbs. Made from heavy gauge steel with a premium powder coat paint finish in green, this unit is built to last and ships fully assembled.
β’ Quickly and ergonomically transport, rotate, dump, and store drums.
β’ Powered grip, release, and rotate (360Β°).

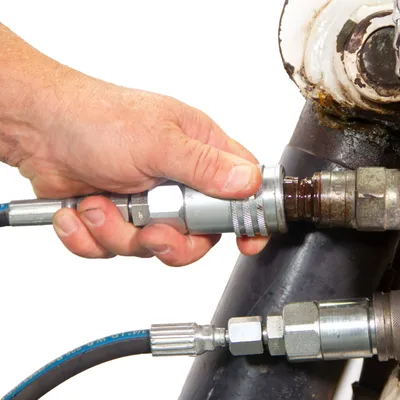

β’ Skid Steer powered, connect unit by attaching included quick-connect couplers to skid steer auxiliary circuit.
β’ Clamp/Unclamp: activate selector valve (via rope pull) on top of the frame.
β’ Rotate: use hydraulic lever (when rope is not being pulled).
β’ Hydraulic actuated jaws, with adjustable pressure gauge.
β’ Variable speed control.
β’ Compatible with steel/plastic/fiber drums, 30-85 gallons (18-28β in diameter).
β’ 52"L x 46"W x 21"H.
β’ 2,000 lb. capacity.
β’ Heavy gauge steel construction.
β’ Premium powder coat paint finish in green.
β’ Ships fully assembled, ready to use.
β’ Made in the U.S.A.
| Item Number | F89698 |
|---|---|
| Manufacturer Part # | F89698 |
| Brand | |
| Weight | 697 lb |
| Dimensions (in.) | 52"x46"x21" |
| Load Capacity (lbs.) | 2000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Drum Type | Fiber drums, Plastic, Steel |
| Drum Diameter (in.) | 18"-28" |
| Drum Capacity (gal.) | 30/55/85 gal |
| Function - Grip | Hydraulic Cylinder with Jaws |
| Function - Rotate | Hydraulic Rotate 360Β° |
| Rotation Speed | 360Β°, 6 RPM |
| Jaw Size W x H (in.) | 15" x 9" |
| Power Source | Auxilary hydraulics on skid steer |
| Material | Steel |
| Lead Time | 5 days |
