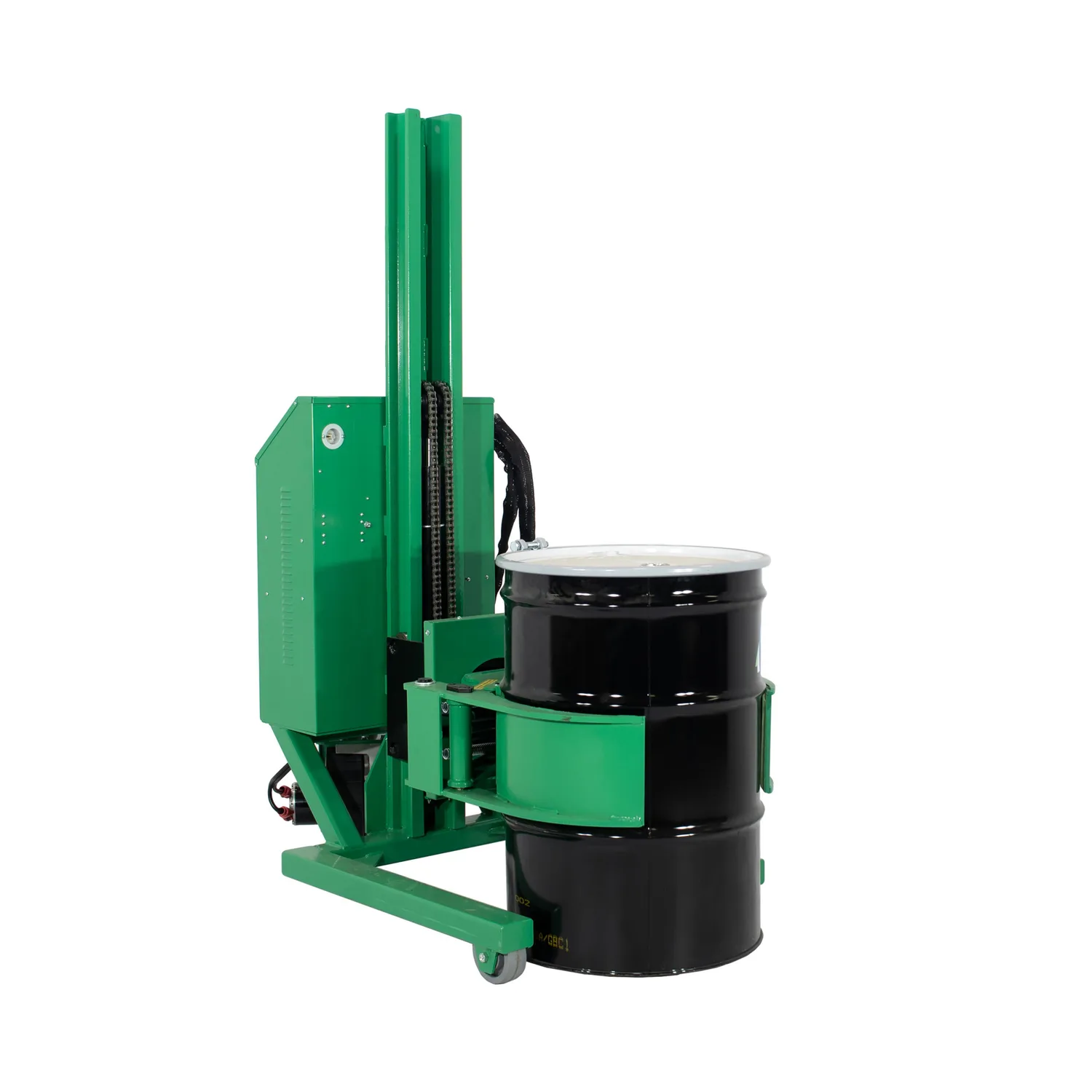

Drum Lift & Rotator Fully Powered F80146A9, 1,000 lb. Capacity
π Hover to zoom Β· Click βΆ for gallery
Valley Craft (F80143A6) delivers a robust drum handling solution designed to enhance safety and efficiency in your facility. This standalone unit, powered by a 24V battery, enables you to effortlessly lift, rotate, and maneuver drums up to a maximum height of 84β off the floor and a minimum center grip of 13β. The unit features electronic jaws for solid drum security and can accommodate steel, plastic, or fiber drums ranging from 30-85 gallons in size. With its straddle legs that extend under pallets or shelving, a heavy gauge steel construction, and a premium green powder coat paint finish, this U.S.A-made product offers durability and longevity in addition to supreme functionality.
β’ Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
β’ Standalone unit (no forklift required).
β’ 24V battery powered drive, lift, and rotate.
β’ Raise middle of drum to a maximum height of 84β off the floor.
β’ Minimum center grip height of 13β off the floor.
β’ Rotate 360Β° continuously in either direction, at 6 RPM
β’ Straddle legs extend under pallets, shelving, or on outside of drums.
β’ Electronic jaws for securing drums.
β’ Compatible with steel/plastic/fiber drums, 30-85 gallons (18-28β in diameter).
β’ Drive up to 2.5 MPH on (2) 5" front swivel casters and (1) 12" powered rear wheel.
β’ 62"L x 32"W x 90"H.
β’ 1,000 lb. capacity.
β’ Heavy gauge steel construction.
β’ Premium powder coat paint finish in green.
β’ Ships fully assembled, ready to use.
β’ Made in the U.S.A.
| Item Number | F80143A6 |
|---|---|
| Manufacturer Part # | F80143A6 |
| Brand | |
| Weight | 1115 lb |
| Dimensions (in.) | 62" x 32" x 90" |
| Load Capacity (lbs.) | 1000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Drum Type | 18 - 28" in diameter, and fiber drums, Plastic, Steel |
| Drum Diameter (in.) | 18"-28" |
| Drum Capacity (gal.) | 30/55/85 gal |
| Function - Lift | Battery Powered Hydraulic Motor |
| Function - Grip | Hydraulic Cylinder with Jaws |
| Function - Rotate | Hydraulic Rotate 360Β° |
| Max Lift Height (in.) | 84" |
| Lift Distance (in.) | 71" |
| Lift Speed (in./sec) | 3.4 |
| Turning Radius (in.) | 47" |
| Drive Speed (mph) | 1 - 2.5mph |
| Rotation Speed | 360Β°, 6 RPM |
| Jaw Size W x H (in.) | 15" x 9" |
| Base Style | Straddle |
| Power Source | 24V Battery Powered, Rechargable |
| Material | Steel |
| Wheel/Caster Makeup | 1 power wheel, 2 rigid |
| Wheel/Caster Qty | 3 |
| Wheel/Caster Dia. (in.) | 12" power wheel, 5" front wheels |
| Lead Time | 15 days |
