Drum Lift & Rotator Fully Powered F89831A4, 1,000 lb. Capacity
π Hover to zoom Β· Click βΆ for gallery

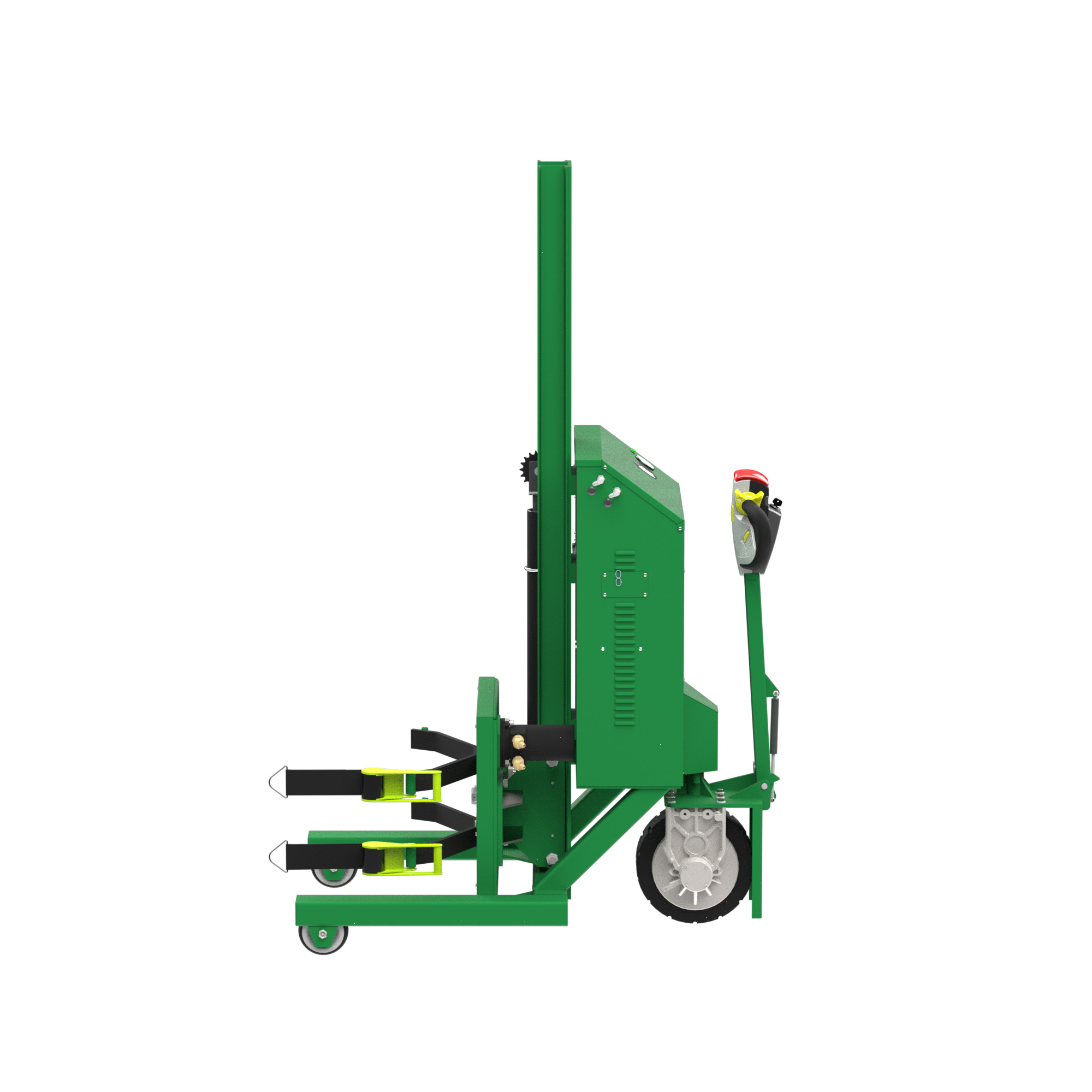

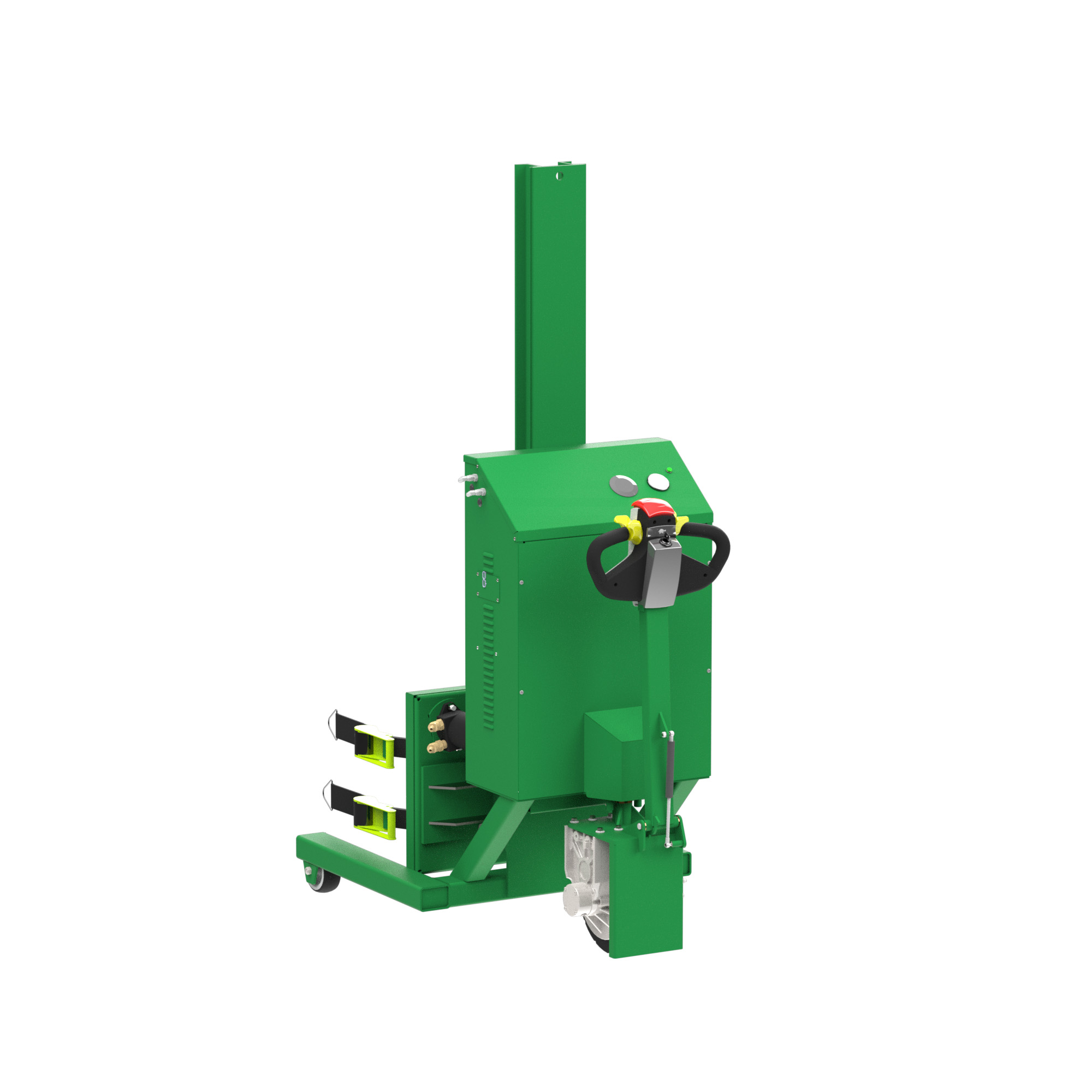

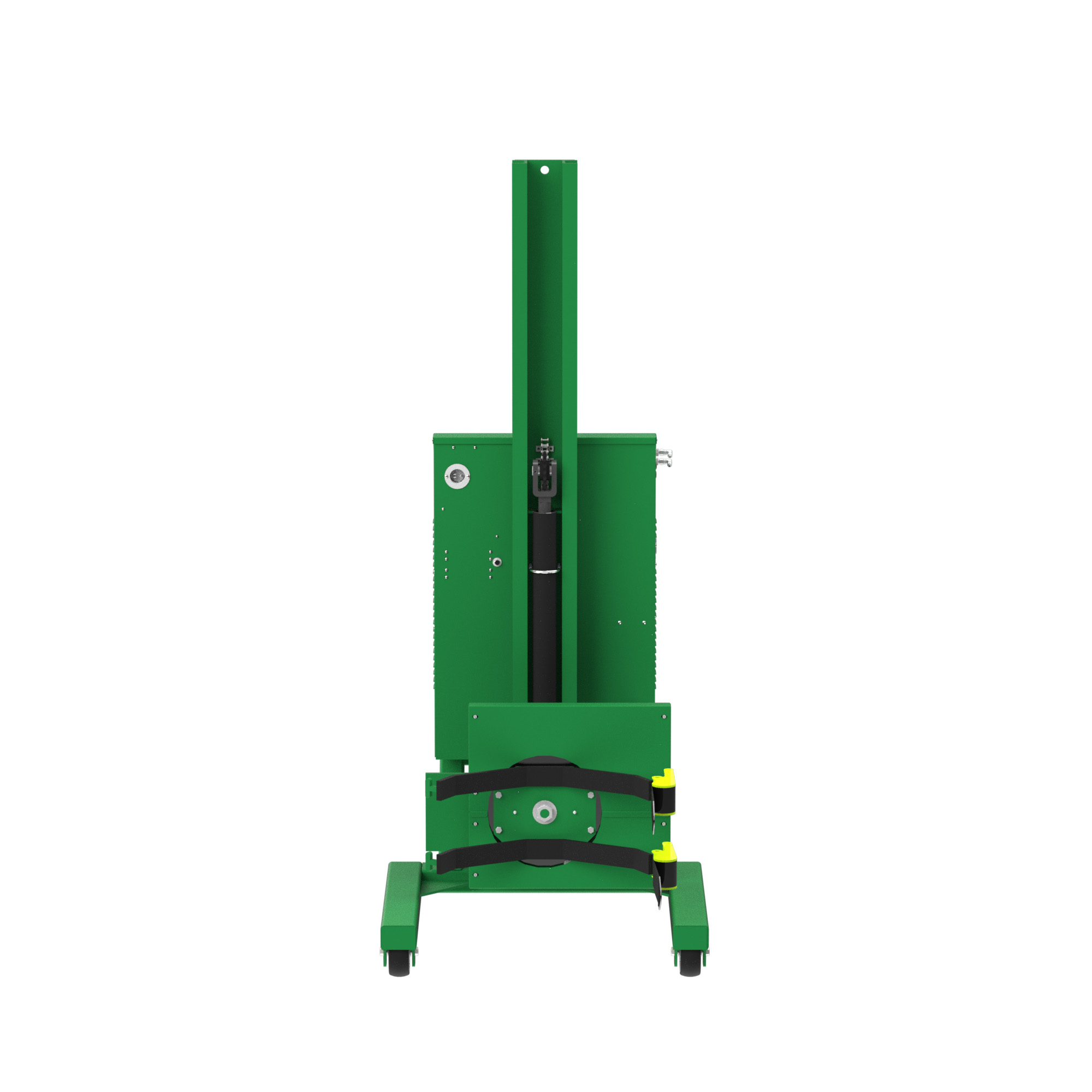

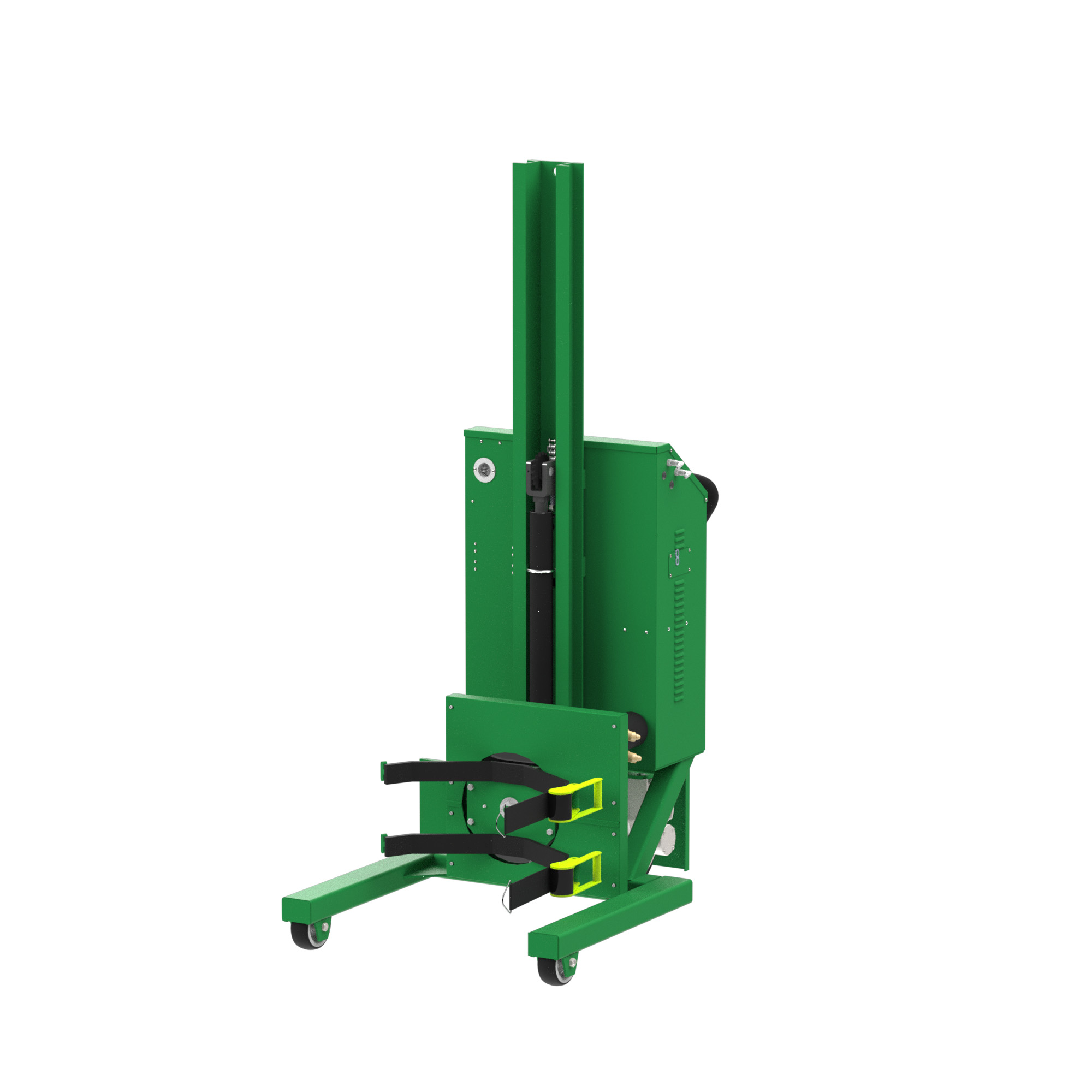

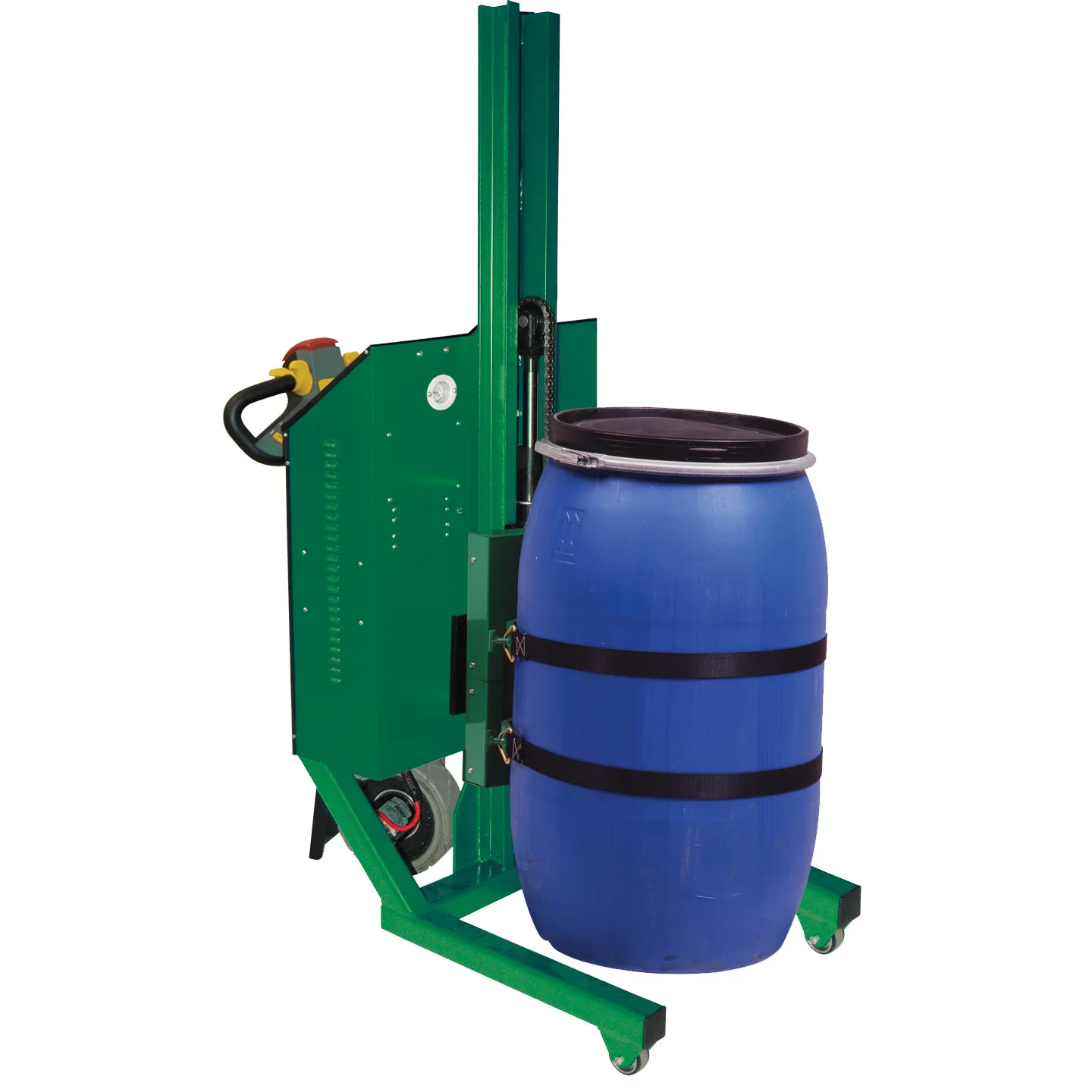

The Valley Craft (F89837A1) represents a new standard in drum handling. Designed to safely and ergonomically lift, rotate, and maneuver drums throughout your facility, this standalone unit requires no forklift. Powered by a 24V battery, it can raise a drum to a maximum height of 84" and rotate it 360Β° continuously in either direction. Built with heavy gauge steel and a premium green powder coat paint finish, it can handle drums of 10-55 gallons, driving at speeds up to 2.5 MPH on its three sturdy wheels. Proudly made in the U.S.A., this device ships fully assembled and ready to revolutionize your operations.
β’ Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
β’ Standalone unit (no forklift required).
β’ 24V battery powered drive, lift, and rotate.

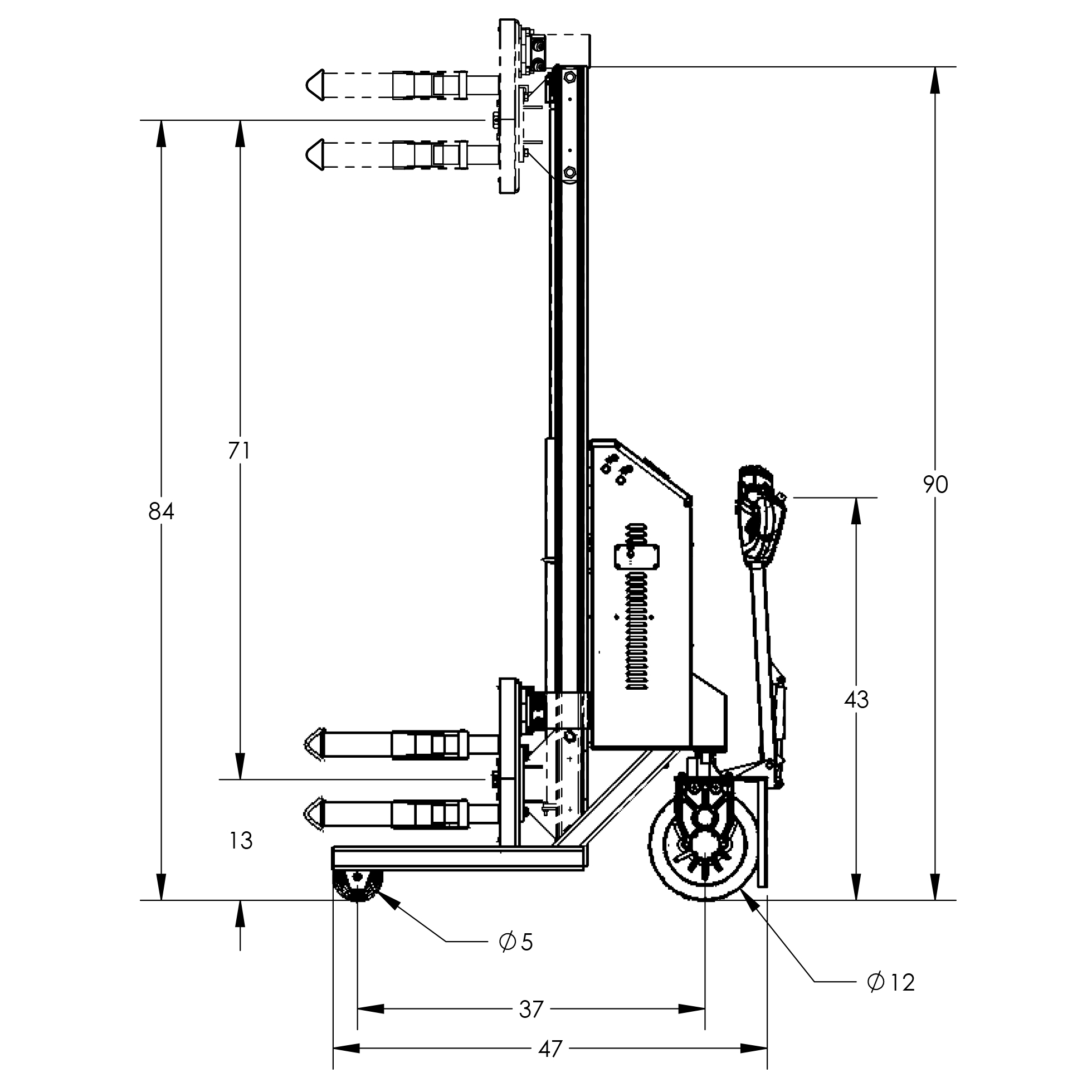

β’ Raise middle of drum to a maximum height of 84β off the floor.
β’ Minimum center grip height of 13β off the floor.
β’ Rotate 360Β° continuously in either direction, at 6 RPM
β’ Straddle legs extend under pallets, shelving, or on outside of drums.
β’ Dual ratchet straps for securing drums.
β’ Compatible with steel/plastic/fiber drums, 10-55 gallons (14-24β in diameter).
β’ Drive up to 2.5 MPH on (2) 5" front swivel casters and (1) 12" powered rear wheel.

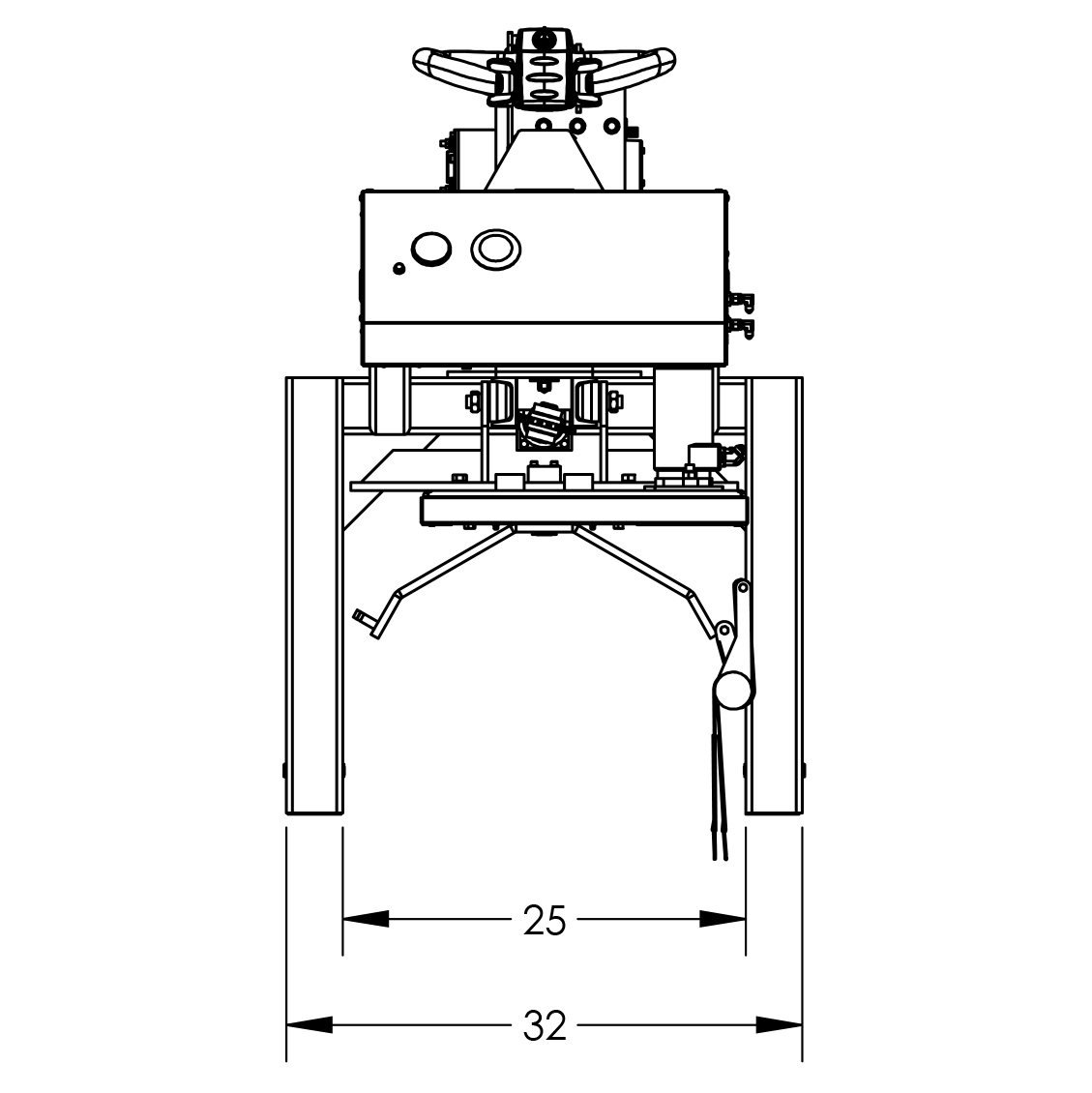

β’ 47"L x 32"W x 90"H.
β’ 1,000 lb. capacity.
β’ Heavy gauge steel construction.
β’ Premium powder coat paint finish in green.
β’ Ships fully assembled, ready to use.
β’ Made in the U.S.A.
| Item Number | F89837A1 |
|---|---|
| Manufacturer Part # | F89837A1 |
| Brand | |
| Weight | 834 lb |
| Dimensions (in.) | 47" x 32" x 90" |
| Load Capacity (lbs.) | 1000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Drum Type | 14 - 24" in diameter, and fiber drums, Plastic, Steel |
| Drum Diameter (in.) | 14 - 24" |
| Drum Capacity (gal.) | 30/55 gal |
| Function - Lift | Battery Powered Hydraulic Motor |
| Function - Grip | Ratchet Straps |
| Function - Rotate | Hydraulic Rotate 360Β° |
| Max Lift Height (in.) | 84" |
| Lift Distance (in.) | 71" |
| Lift Speed (in./sec) | 3.4 |
| Turning Radius (in.) | 40" |
| Drive Speed (mph) | 1 - 2.5mph |
| Rotation Speed | 360Β°, 6 RPM |
| Base Style | Straddle |
| Power Source | 24V Battery Powered, Rechargable |
| Material | Steel |
| Wheel/Caster Makeup | 1 power wheel, 2 rigid |
| Wheel/Caster Qty | 3 |
| Wheel/Caster Dia. (in.) | 12" power wheel, 5" front wheels |
| Lead Time | 15 days |
