Drum Lift & Rotator Fully Powered F80143A6, 1,000 lb. Capacity
π Hover to zoom Β· Click βΆ for gallery

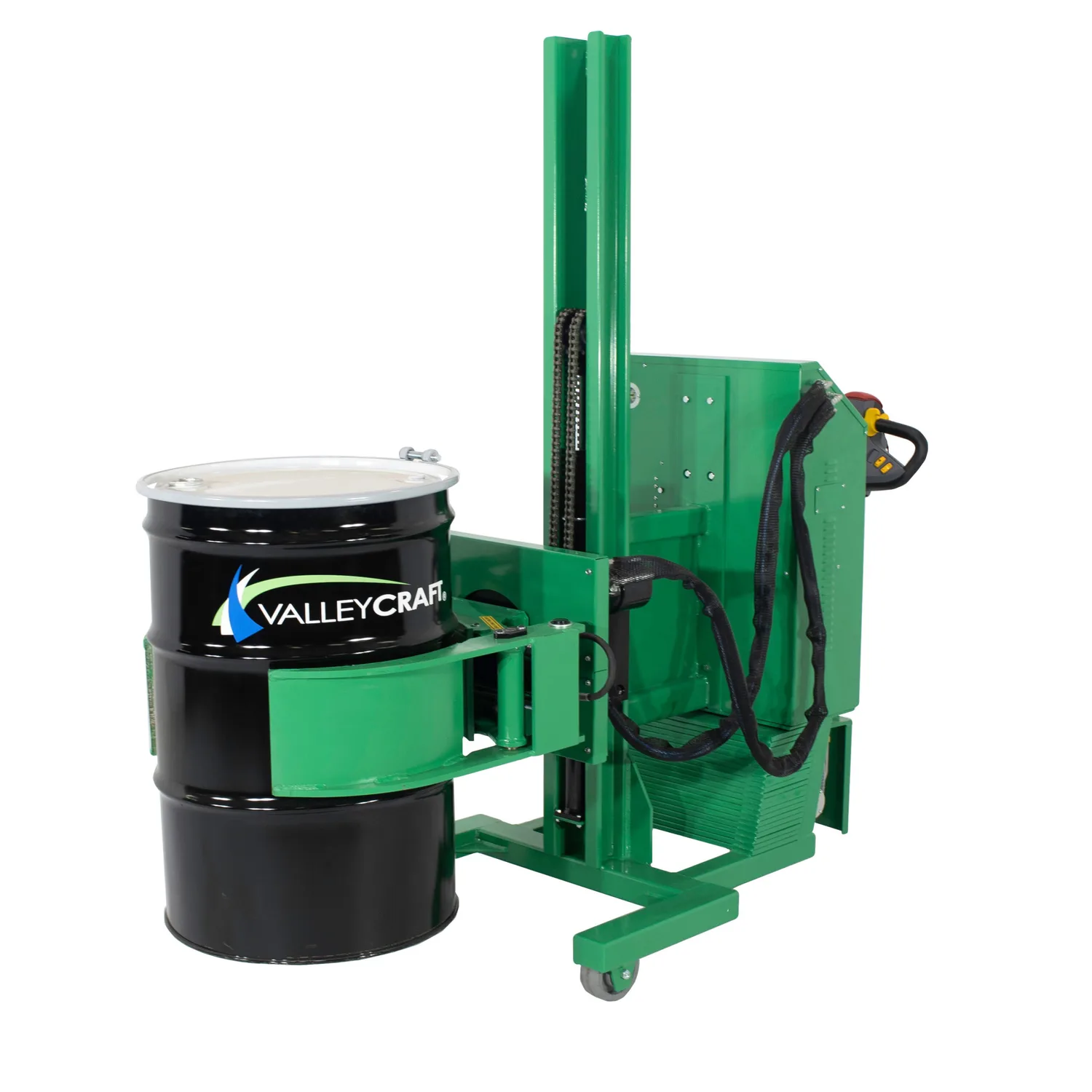

Valley Craft (F80146A9), a U.S. made standalone unit, is revolutionizing the way drums are handled in facilities. Engineered to lift, rotate, and maneuver drums upto 71" off the floor without requiring a forklift. This ergonomic solution, powered by a 24V battery, features electronic jaws for securing drums, and can rotate them 360Β° at 6 RPM. Its robust construction, heavy gauge steel, premium green powder coat paint finish, and a 1,000 lb. capacity, make it a durable and versatile addition to your workspace.
β’ Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
β’ Standalone unit (no forklift required).
β’ 24V battery powered drive, lift, and rotate.

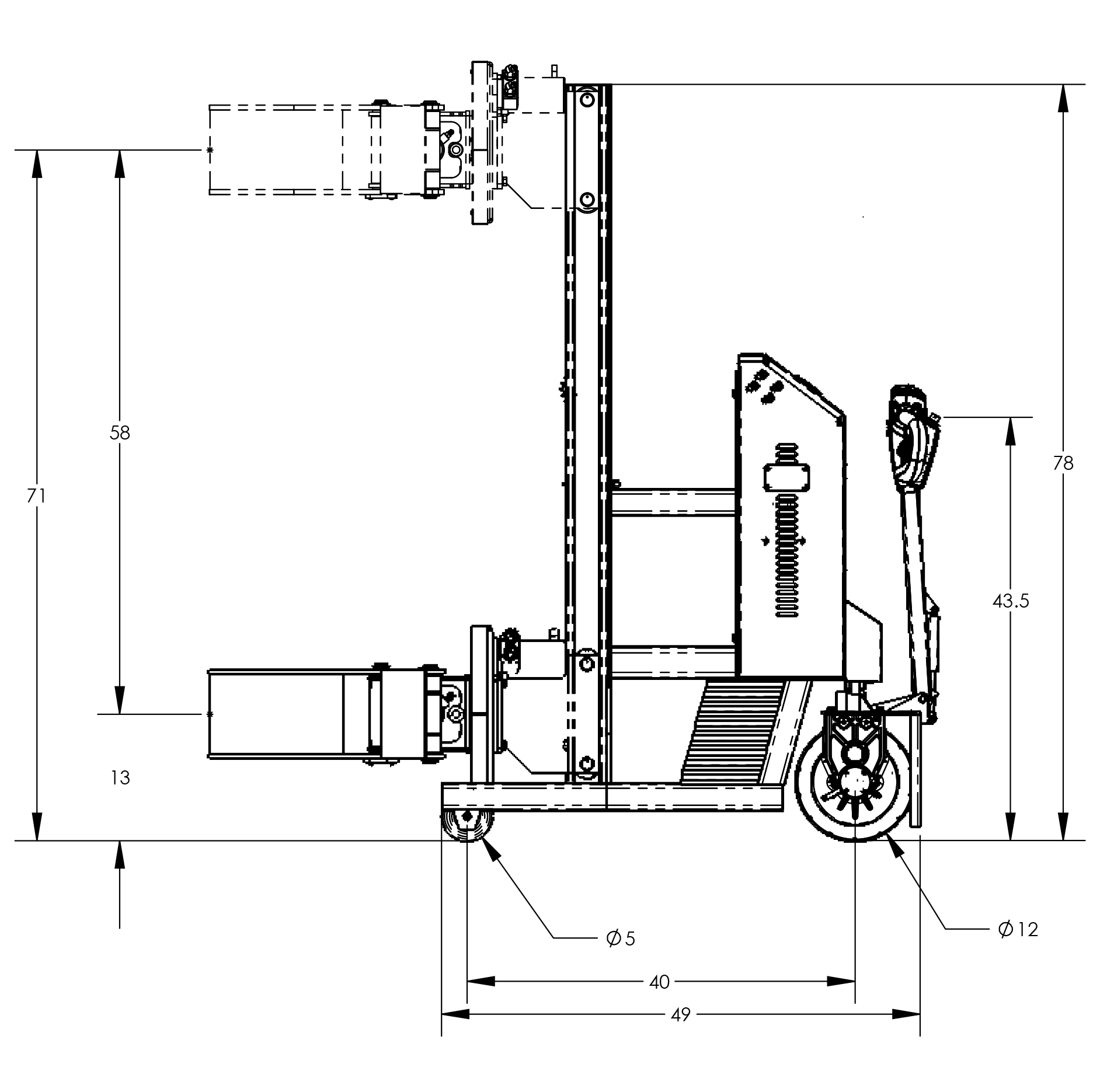

β’ Raise middle of drum to a maximum height of 71β off the floor.
β’ Minimum center grip height of 13β off the floor.
β’ Rotate 360Β° continuously in either direction, at 6 RPM
β’ Counterweighted unit butts directly up to pallets, shelving, or other items.
β’ Electronic jaws for securing drums.
β’ Compatible with steel/plastic/fiber drums, 30-85 gallons (18-28β in diameter).
β’ Drive up to 2.5 MPH on (2) 5" front swivel casters and (1) 12" powered rear wheel.

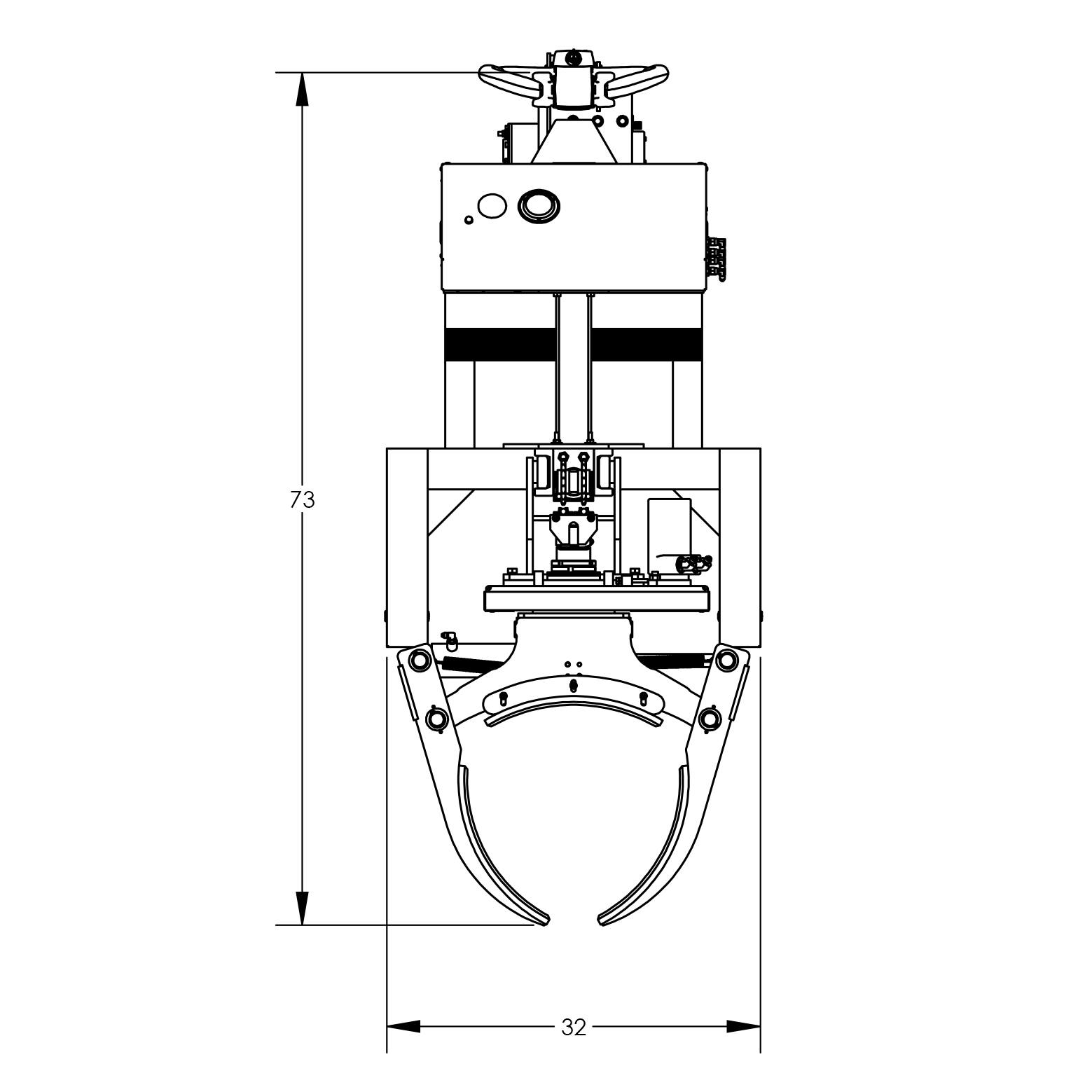

β’ 73"L x 32"W x 78"H.
β’ 1,000 lb. capacity.
β’ Heavy gauge steel construction.
β’ Premium powder coat paint finish in green.
β’ Ships fully assembled, ready to use.
β’ Made in the U.S.A.
| Item Number | F80146A9 |
|---|---|
| Manufacturer Part # | F80146A9 |
| Brand | |
| Weight | 1640 lb |
| Dimensions (in.) | 73" x 32" x 78" |
| Load Capacity (lbs.) | 1000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Drum Type | 18 - 28" in diameter, and fiber drums, Plastic, Steel |
| Drum Diameter (in.) | 18"-28" |
| Drum Capacity (gal.) | 30/55/85 gal |
| Function - Lift | Battery Powered Hydraulic Motor |
| Function - Grip | Hydraulic Cylinder with Jaws |
| Function - Rotate | Hydraulic Rotate 360Β° |
| Max Lift Height (in.) | 71" |
| Lift Distance (in.) | 58" |
| Lift Speed (in./sec) | 3.4 |
| Turning Radius (in.) | 41" |
| Drive Speed (mph) | 1 - 2.5mph |
| Rotation Speed | 360Β°, 6 RPM |
| Jaw Size W x H (in.) | 15" x 9" |
| Base Style | Counterweighted |
| Power Source | 24V Battery Powered, Rechargable |
| Material | Steel |
| Wheel/Caster Makeup | 1 power wheel, 2 rigid |
| Wheel/Caster Qty | 3 |
| Wheel/Caster Dia. (in.) | 12" power wheel, 5" front wheels |
| Lead Time | 15 days |
