Drum Lift & Rotator Fully Powered F89831A4, 1,000 lb. Capacity
π Hover to zoom Β· Click βΆ for gallery

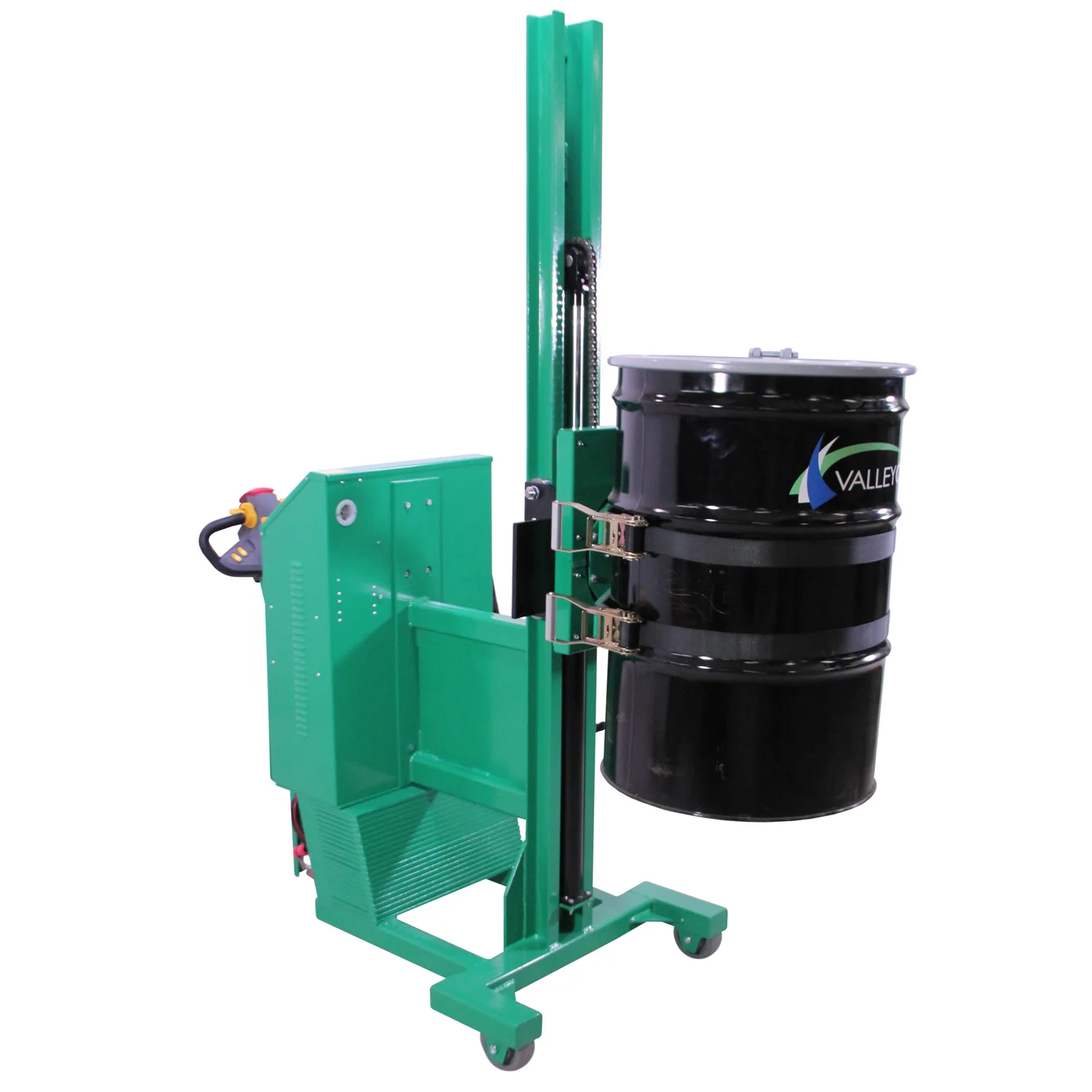

The Valley Craft F89832A5 stands as a superior solution for your drum handling needs. Its ergonomic design, powered by a 24V battery, enables the safe lifting, rotating, and maneuvering of drums up to 1,000 lbs. This standalone unit can raise the middle of your drum to a maximum height of 71β off the floor, or rotate 360Β° continuously at 6 RPM in any direction. Itβs not just its functionality that impresses, but also its durability with heavy gauge steel construction and a premium green powder coat paint finish.
β’ Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
β’ Standalone unit (no forklift required).
β’ 24V battery powered drive, lift, and rotate.
β’ Raise middle of drum to a maximum height of 71β off the floor.
β’ Minimum center grip height of 13β off the floor.
β’ Rotate 360Β° continuously in either direction, at 6 RPM
β’ Counterweighted unit butts directly up to pallets, shelving, or other items.

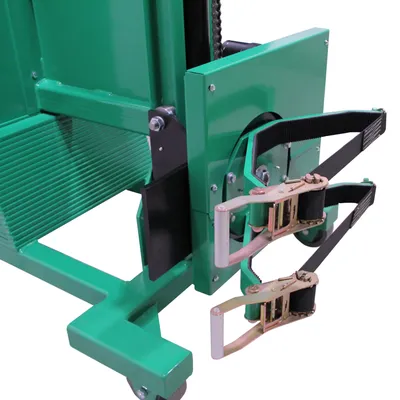

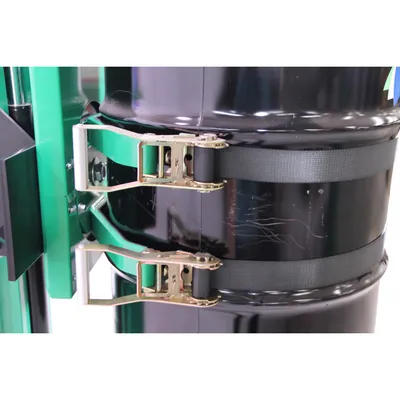

β’ Dual ratchet straps for securing drums.
β’ Compatible with steel/plastic/fiber drums, 10-55 gallons (14-24β in diameter).
β’ Drive up to 2.5 MPH on (2) 5" front swivel casters and (1) 12" powered rear wheel.

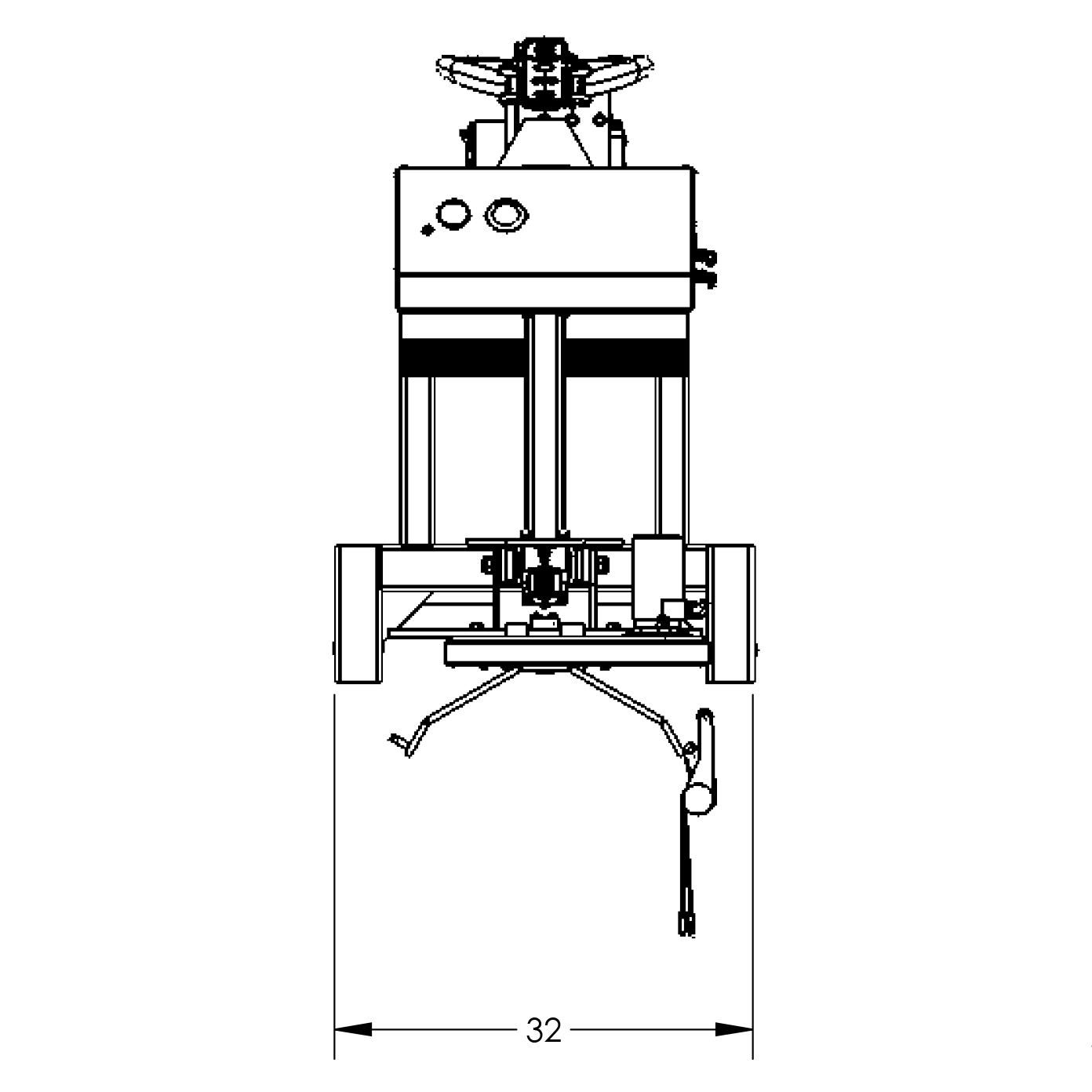

β’ 53"L x 32"W x 78"H.
β’ 1,000 lb. capacity.
β’ Heavy gauge steel construction.
β’ Premium powder coat paint finish in green.
β’ Ships fully assembled, ready to use.
β’ Made in the U.S.A.
| Item Number | F89832A5 |
|---|---|
| Manufacturer Part # | F89832A5 |
| Brand | |
| Weight | 1339 lb |
| Dimensions (in.) | 53" x 32" x 78" |
| Load Capacity (lbs.) | 1000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Drum Type | 14 - 24" in diameter, and fiber drums, Plastic, Steel |
| Drum Diameter (in.) | 14 - 24" |
| Drum Capacity (gal.) | 30/55 gal |
| Function - Lift | Battery Powered Hydraulic Motor |
| Function - Grip | Ratchet Straps |
| Function - Rotate | Hydraulic Rotate 360Β° |
| Max Lift Height (in.) | 71" |
| Lift Distance (in.) | 58" |
| Lift Speed (in./sec) | 3.4 |
| Turning Radius (in.) | 39" |
| Drive Speed (mph) | 1 - 2.5mph |
| Rotation Speed | 360Β°, 6 RPM |
| Base Style | Counterweighted |
| Power Source | 24V Battery Powered, Rechargable |
| Material | Steel |
| Wheel/Caster Makeup | 1 power wheel, 2 rigid |
| Wheel/Caster Qty | 3 |
| Wheel/Caster Dia. (in.) | 12" power wheel, 5" front wheels |
| Lead Time | 15 days |
