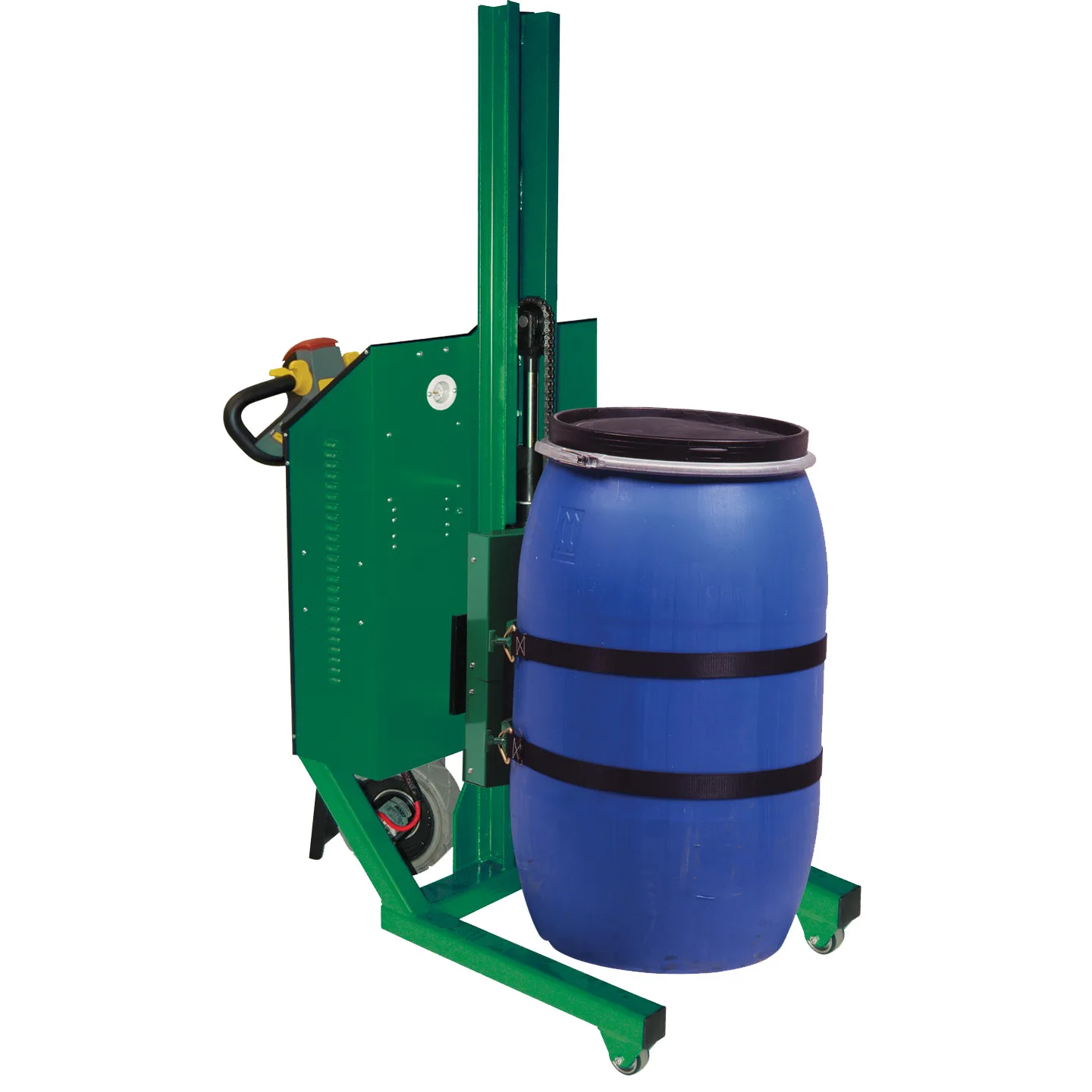

Drum Lift & Rotator Fully Powered F89831A4, 1,000 lb. Capacity
π Hover to zoom Β· Click βΆ for gallery
Valley Craft F89838A2 is a premium, standalone drum handler that promises to redefine your facility's operations. This 24V battery powered unit allows for ergonomic lifting, rotating, and maneuvering of drums up to a maximum height of 71". Exceptionally versatile, it is compatible with 10-55 gallon steel, plastic, or fiber drums and capable of rotating them 360Β° continuously at 6 RPM. Finished in a premium powder coat paint and constructed from heavy gauge steel, this American-made machine is designed for durability and performance, supporting up to 1,000 lbs. capacity with ease.
β’ Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
β’ Standalone unit (no forklift required).
β’ 24V battery powered drive, lift, and rotate.
β’ Raise middle of drum to a maximum height of 71β off the floor.
β’ Minimum center grip height of 13β off the floor.
β’ Rotate 360Β° continuously in either direction, at 6 RPM
β’ Straddle legs extend under pallets, shelving, or on outside of drums.
β’ Dual ratchet straps for securing drums.
β’ Compatible with steel/plastic/fiber drums, 10-55 gallons (14-24β in diameter).
β’ Drive up to 2.5 MPH on (2) 5" front swivel casters and (1) 12" powered rear wheel.
β’ 47"L x 32"W x 78"H.
β’ 1,000 lb. capacity.
β’ Heavy gauge steel construction.
β’ Premium powder coat paint finish in green.
β’ Ships fully assembled, ready to use.
β’ Made in the U.S.A.
| Item Number | F89838A2 |
|---|---|
| Manufacturer Part # | F89838A2 |
| Brand | |
| Weight | 799 lb |
| Dimensions (in.) | 47" x 32" x 78" |
| Load Capacity (lbs.) | 1000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Drum Type | 14 - 24" in diameter, and fiber drums, Plastic, Steel |
| Drum Diameter (in.) | 14 - 24" |
| Drum Capacity (gal.) | 30/55 gal |
| Function - Lift | Battery Powered Hydraulic Motor |
| Function - Grip | Ratchet Straps |
| Function - Rotate | Hydraulic Rotate 360Β° |
| Max Lift Height (in.) | 71" |
| Lift Distance (in.) | 58" |
| Lift Speed (in./sec) | 3.4 |
| Turning Radius (in.) | 40" |
| Drive Speed (mph) | 1 - 2.5mph |
| Rotation Speed | 360Β°, 6 RPM |
| Base Style | Straddle |
| Power Source | 24V Battery Powered, Rechargable |
| Material | Steel |
| Wheel/Caster Makeup | 1 power wheel, 2 rigid |
| Wheel/Caster Qty | 3 |
| Wheel/Caster Dia. (in.) | 12" power wheel, 5" front wheels |
| Lead Time | 15 days |
