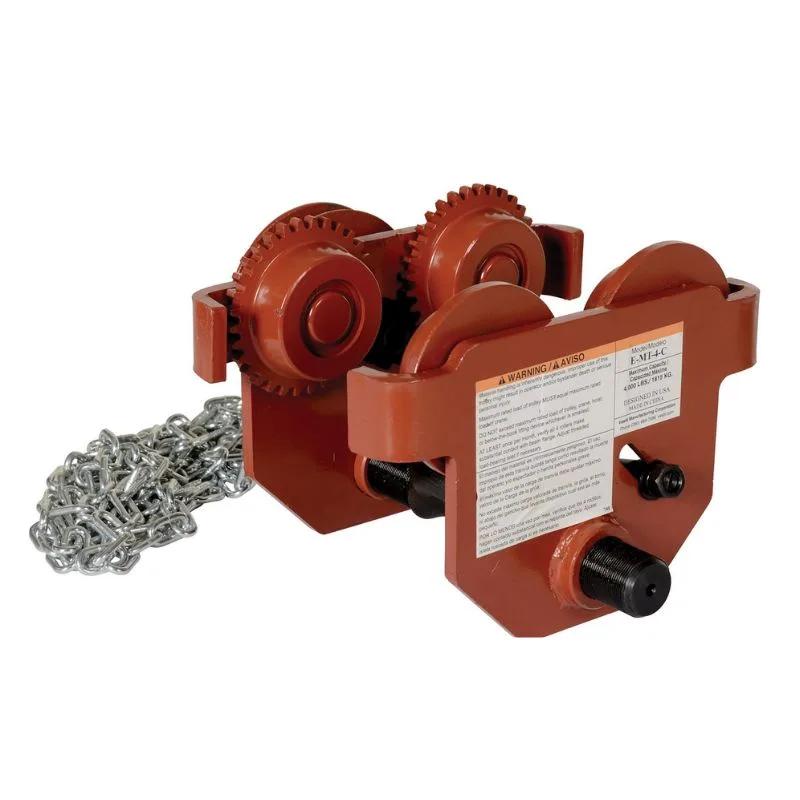

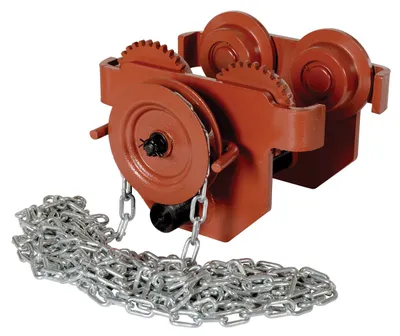

Vestil E-MT-4-C Steel Geared Eye Manual Trolley

Vestil Item #E-MT-4-C · MFR #E-MT-4-C
Quick Answer: The Vestil E-MT-4-C Steel Geared Eye Manual Trolley is a i beam trolley with 4000 load capacity and 3 to 6-1/2 beam flange width. Priced at $284.97, in stock with factory-direct shipping.

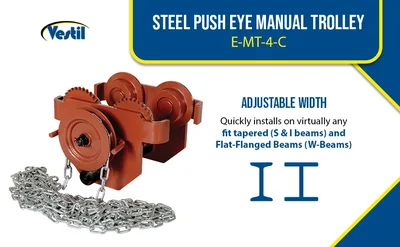

  • Introducing the Vestil E-MT-4-C Steel Geared Eye Manual Trolley, your solution for fast and easy installation on various I-beams.
  • Its adjustable center rod allows for customization of the trolley’s width by simply lifting the eye clockwise or counterclockwise.
  • Plus, its clever design ensures that the trolley width remains fixed once your hoist is attached.
  • Perfect for enhancing positioning accuracy, the trolley comes with four durable rollers with sealed bearings for maximum lifespan.
  • It’s also built with sturdy steel construction and features a sleek painted finish.
Brand
Vestil
Condition
New
Weight
38 lb
Dimensions
11.75″L × 12″W × 7.8125″H
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

Introducing the Vestil E-MT-4-C Steel Geared Eye Manual Trolley, your solution for fast and easy installation on various I-beams. Its adjustable center rod allows for customization of the trolley's width by simply lifting the eye clockwise or counterclockwise. Plus, its clever design ensures that the trolley width remains fixed once your hoist is attached. Perfect for enhancing positioning accuracy, the trolley comes with four durable rollers with sealed bearings for maximum lifespan. It's also built with sturdy steel construction and features a sleek painted finish. Don't miss its convenient lifting eye located at the bottom, too. Note: hoist not included.

  • Special design works with S, H, W, and M-type I-beams

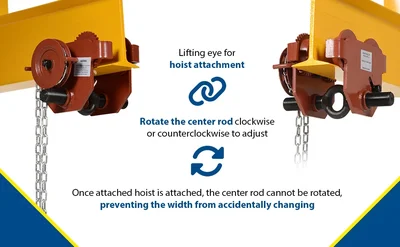

  • Turning the center screw with the eye easily adjusts the trolley width
  • Solid steel construction provides long-lasting rugged use
  • Sealed bearings provide long life

Specifications

Item NumberE-MT-4-C
Manufacturer Part #E-MT-4-C
Brand Vestil
Weight38 lb

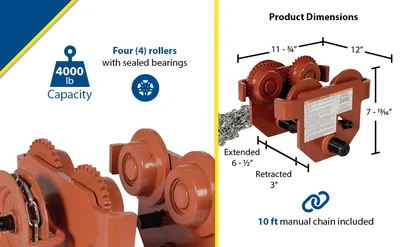

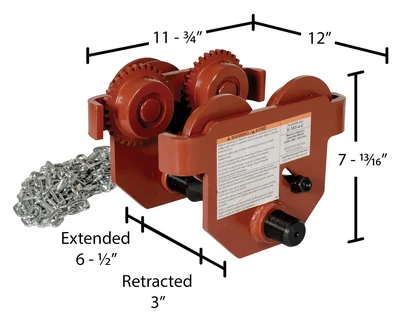

Dimensions (L×W×H)11.75″ × 12″ × 7.8125″
Lead Time2 days for 1–15 units · 5 days for 16–20 units · call for 21+ units
Load Capacity (lbs.)4000
Beam Flange Width (in.)3 to 6-1/2
Headroom (in.)6
OperationManual Chain Gear
Chain Length (ft.)10
Capacity (lbs)4000
MaterialSteel
ColorOrange
Freight Class70
Country of OriginCN
Warranty90 Days (Limited - Parts)

Documents & Resources

Approval Drawings

Testing Certificates

Warranty
