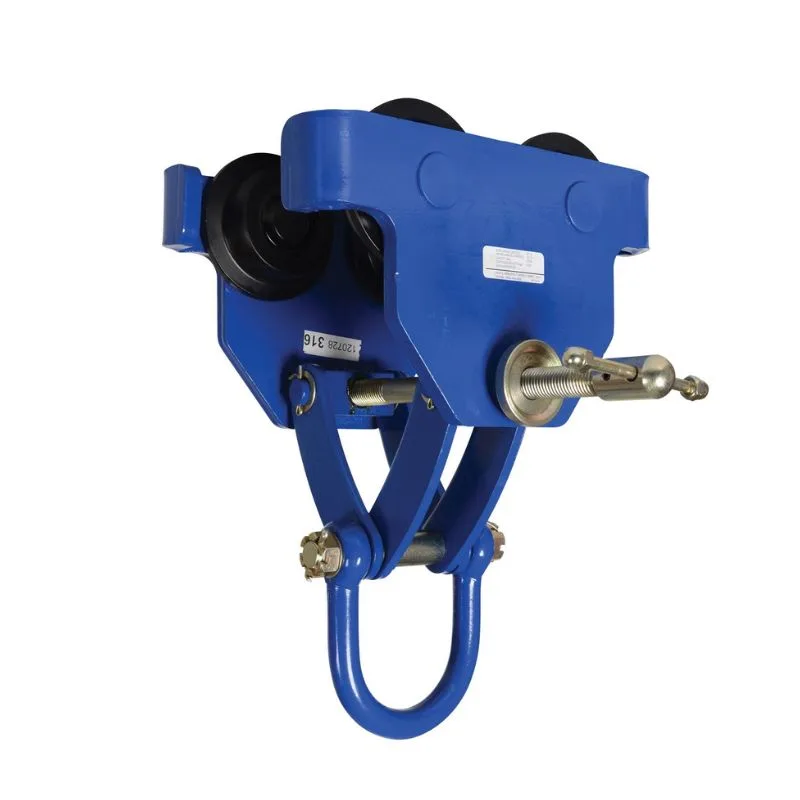

Vestil QIT-10 Steel Quick Install Manual Trolley

Vestil Item #QIT-10 · MFR #QIT-10
Quick Answer: The Vestil QIT-10 Steel Quick Install Manual Trolley is a i beam trolley with 10000 load capacity and 17 1/4 to 20 3/8 min max height. Priced at $448.84, in stock with factory-direct shipping.
  • Introducing the Vestil QIT-10 Steel Quick Install Manual Trolley – a reliable and user-friendly tool for all your lifting needs.
  • Designed to effortlessly fit onto various types of I-beams, including S, H, W, and M, this trolley boasts a manual screw mechanism for easy width adjustment.
  • It even comes with a locking ring to ensure the width stays in place.
  • Worried about unwanted movement? Simply tighten the manual screw mechanism and enjoy added safety, similar to a beam clamp.
  • Plus, with four rollers equipped with sealed bearings, you can trust in its durability and longevity.
Brand
Vestil
Condition
New
Weight
68 lb
Dimensions
13.625″L × 20.1875″W × 20.375″H
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

Introducing the Vestil QIT-10 Steel Quick Install Manual Trolley - a reliable and user-friendly tool for all your lifting needs. Designed to effortlessly fit onto various types of I-beams, including S, H, W, and M, this trolley boasts a manual screw mechanism for easy width adjustment. It even comes with a locking ring to ensure the width stays in place. Worried about unwanted movement? Simply tighten the manual screw mechanism and enjoy added safety, similar to a beam clamp. Plus, with four rollers equipped with sealed bearings, you can trust in its durability and longevity. Need to attach a hoist? Look no further - a convenient lifting eye is located at the bottom of the trolley. Don't miss out on this must-have tool for any lifting project (hoist not included).

  • Manual adjusting screw with locking collar for quick and easy width adjustment
  • The locking ring prevents the trolley width from changing accidentally
  • Sealed bearing rollers provide long life
  • The lifting eye is located at the bottom of the trolley for safe hoist attachment

Specifications

Item NumberQIT-10
Manufacturer Part #QIT-10
Brand Vestil
Weight68 lb
Dimensions (L×W×H)13.625″ × 20.1875″ × 20.375″
Lead Time2 days for 1–15 units · 5 days for 16–20 units · call for 21+ units
Load Capacity (lbs.)10000
Beam Flange Width (in.)4 to 11-3/4
Headroom (in.)13 7/8
Min Max Height (in.)17 1/4 to 20 3/8
Shackle Width (in.)4 1/4
Capacity (lbs)10000
MaterialSteel
ColorBlue
Freight Class70
Country of OriginCN
Warranty90 Days (Limited - Parts)

Documents & Resources

Owner's Manuals

Approval Drawings

Testing Certificates

Warranty
