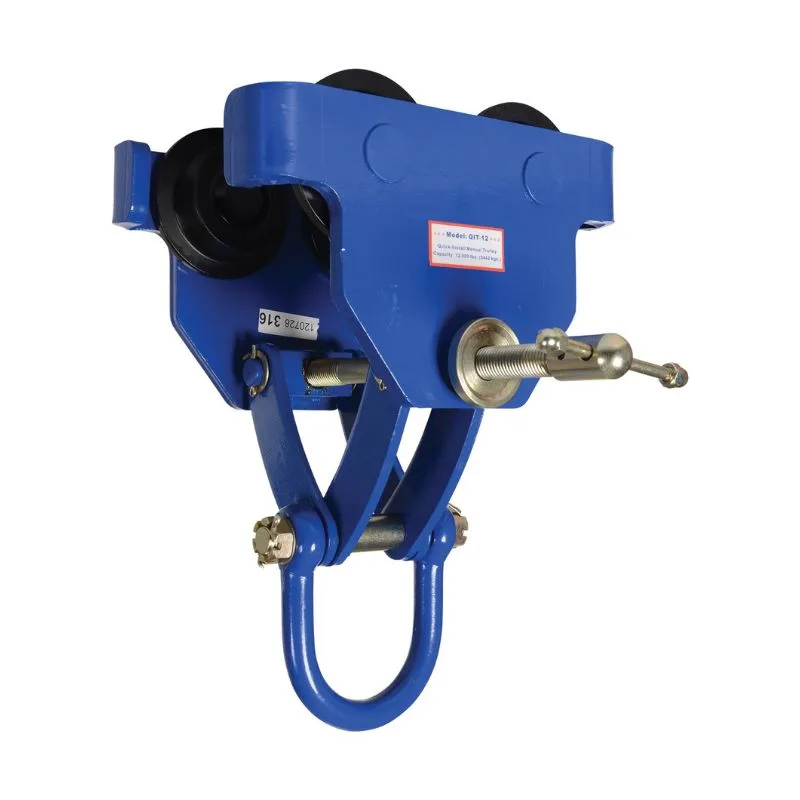

Vestil QIT-12 Steel Quick Install Manual Trolley

Vestil Item #QIT-12 · MFR #QIT-12
Quick Answer: The Vestil QIT-12 Steel Quick Install Manual Trolley is a i beam trolley with 12000 load capacity and 17 1/4 to 20 3/8 min max height. Priced at $484.77, in stock with factory-direct shipping.
  • Introducing the Vestil QIT-12 Steel Quick Install Manual Trolley – your reliable, easy-to-use, and safe solution.
  • This trolley is designed to fit seamlessly on virtually any S, H, W, and M-type I-beam, thanks to its adjustable width feature controlled by a manual screw mechanism.
  • Worried about accidental changes? We’ve got you covered with a locking ring that ensures the trolley width stays put.
  • Need additional stability? Simply tighten the manual screw mechanism to prevent the trolley from moving, just like a beam clamp.
  • With four rollers featuring sealed bearings, this trolley is built to last.
Brand
Vestil
Condition
New
Weight
70 lb
Dimensions
13.625″L × 20.1875″W × 20.375″H
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

Introducing the Vestil QIT-12 Steel Quick Install Manual Trolley - your reliable, easy-to-use, and safe solution. This trolley is designed to fit seamlessly on virtually any S, H, W, and M-type I-beam, thanks to its adjustable width feature controlled by a manual screw mechanism. Worried about accidental changes? We've got you covered with a locking ring that ensures the trolley width stays put. Need additional stability? Simply tighten the manual screw mechanism to prevent the trolley from moving, just like a beam clamp. With four rollers featuring sealed bearings, this trolley is built to last. Plus, we've added a lifting eye at the bottom, allowing you to easily attach a hoist (hoist not included). Elevate your lifting game with the Vestil QIT-12 Steel Quick Install Manual Trolley.

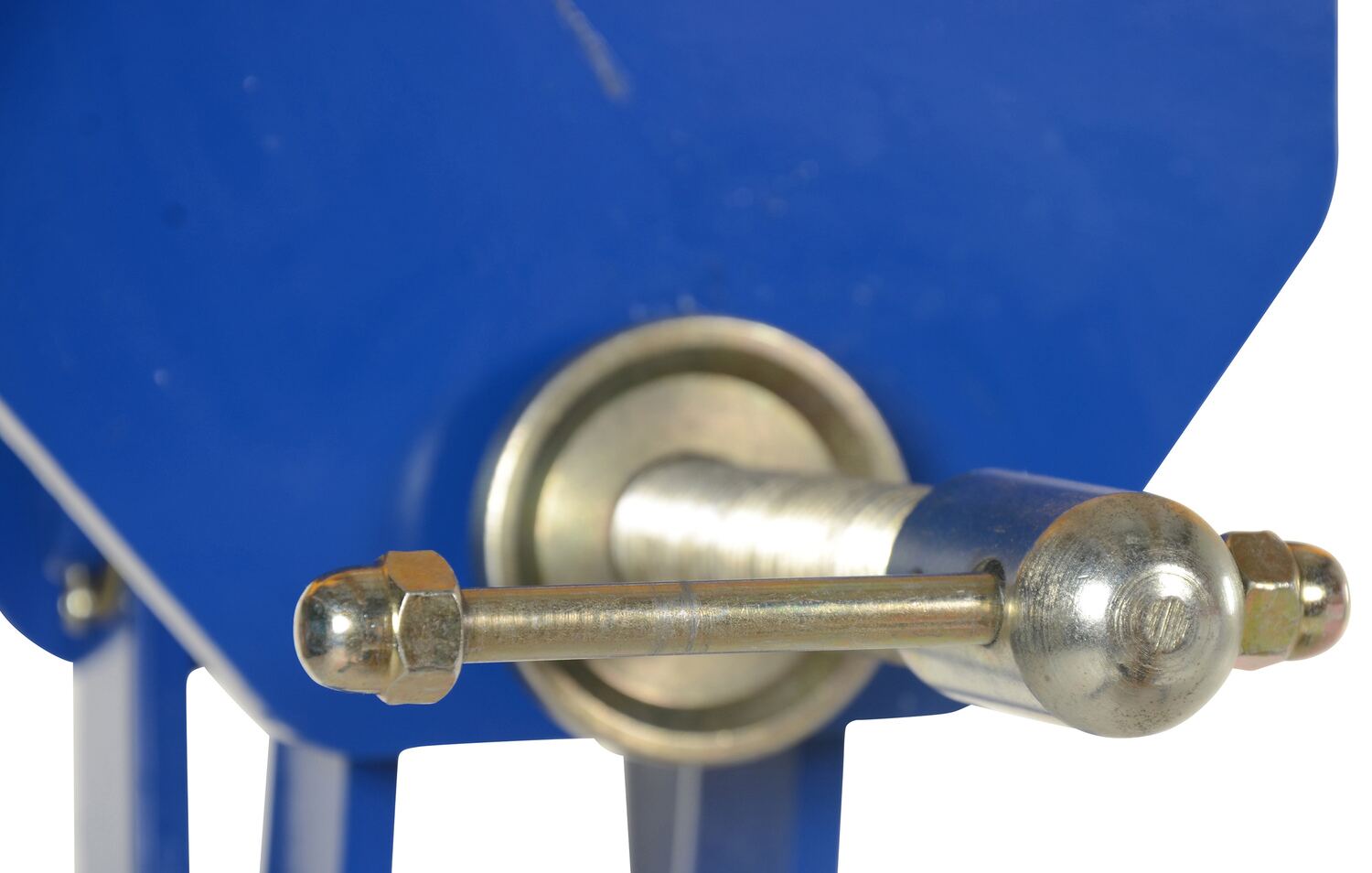

  • Manual adjusting screw with locking collar for quick and easy width adjustment
  • The locking ring prevents the trolley width from changing accidentally
  • Sealed bearing rollers provide long life
  • The lifting eye is located at the bottom of the trolley for safe hoist attachment

Specifications

Item NumberQIT-12
Manufacturer Part #QIT-12
Brand Vestil
Weight70 lb
Dimensions (L×W×H)13.625″ × 20.1875″ × 20.375″
Lead Time2 days for 1–15 units · 5 days for 16–20 units · call for 21+ units
Load Capacity (lbs.)12000
Beam Flange Width (in.)4 to 11-3/4
Headroom (in.)13 7/8
Min Max Height (in.)17 1/4 to 20 3/8
Shackle Width (in.)4 1/4
Capacity (lbs)12000
MaterialSteel
ColorBlue
Freight Class70
Country of OriginCN
Warranty90 Days (Limited - Parts)

Documents & Resources

Owner's Manuals

Approval Drawings

Testing Certificates

Warranty
