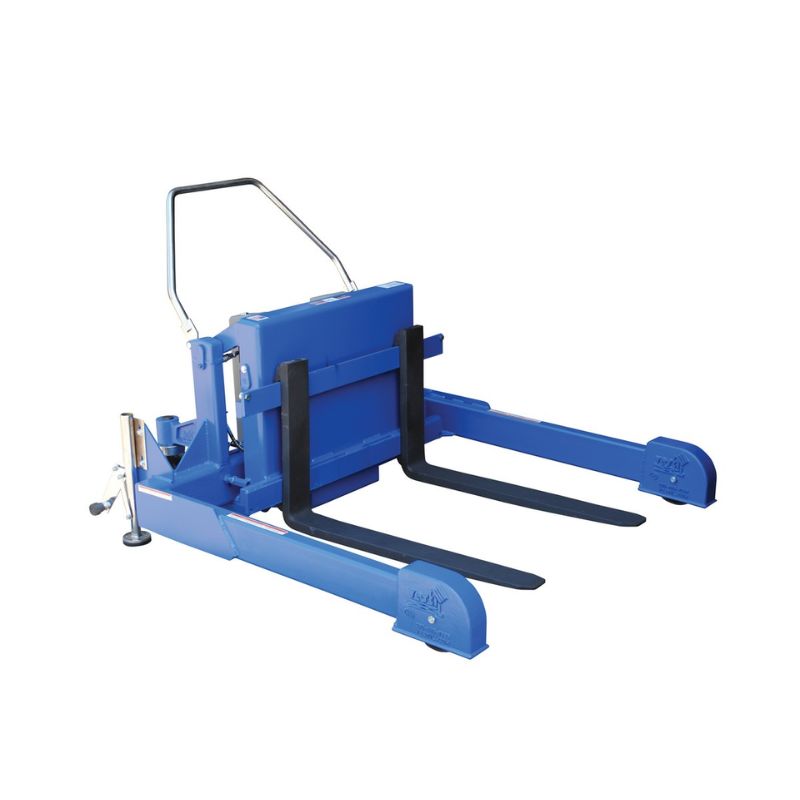

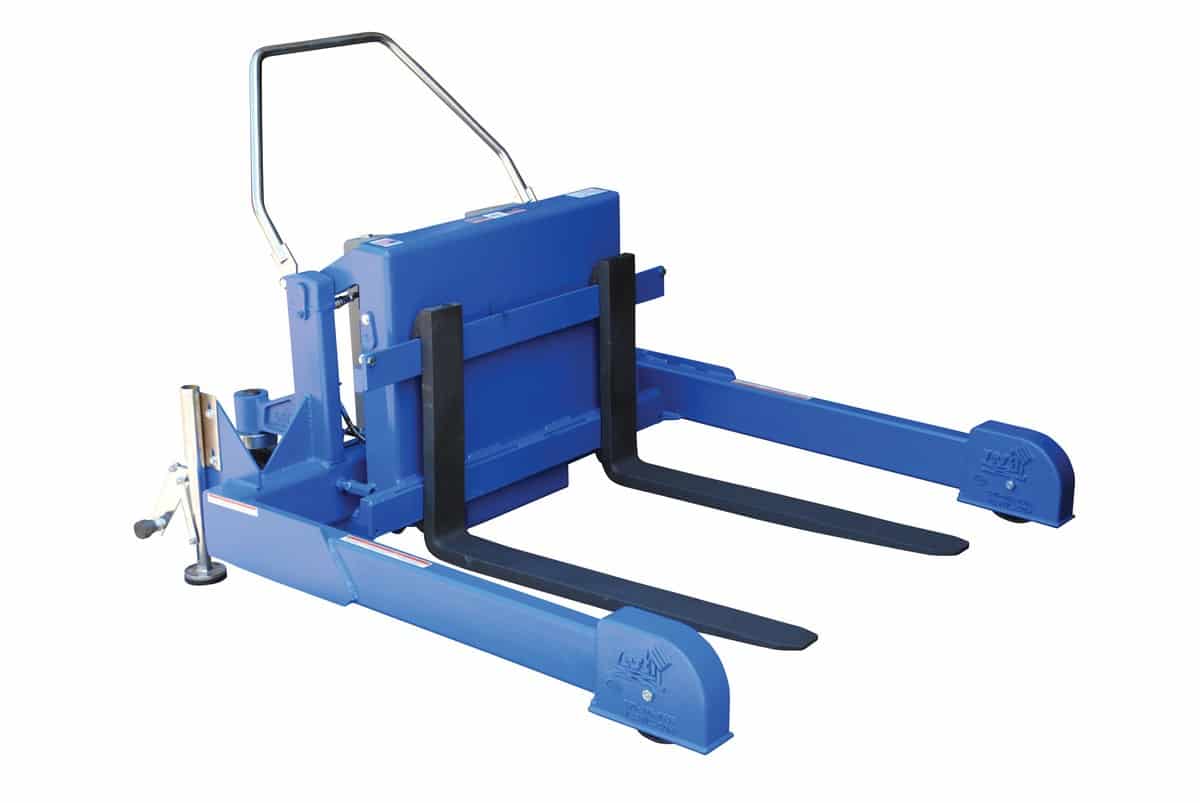

The Vestil TMS-60-DC Steel Tilt Master Straddle lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. It features a folding ergonomic handle for quick and easy maneuverability. This Lift has a thin profile to allow the user to get as close to the load as possible. It also has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with virtually any kind of container or pallet. The unit is powered by a DC electric motor that includes an on-board battery charger, battery charge indicator and comes standard with a push-button hand control on a coil cord.
| Item Number | TMS-60-DC |
|---|---|
| Manufacturer Part # | TMS-60-DC |
| Brand | |
| Weight | 1002 lb |
| Dimensions (LΓWΓH) | 73.1875β³ Γ 57.25β³ Γ 29β³ |
| Lead Time | 35 days for 1β2 units Β· call for 3+ units |
| Load Capacity (lbs.) | 6000 |
| Operator Reach (in.) | 13-1/2 |
| Fork Width (in.) | 4 |
| Fork Length (in.) | 35-1/2 |
| Rotated Height (in.) | 37 |
| Lowered Height (in.) | 3 |
| Max Tilt (degrees) | 90 |
| Wheel Dia. (in.) | 8 |
| Power Type | 12V DC |
| Wheel Width (in.) | 3 |
| Wheel Type | Phenolic |
| Folding Handle Length (in.) | 20 |
| Load Center (in.) | 18 |
| Compatible Products | Quick Ship |
| Capacity (lbs) | 6000 |
| Material | Steel |
| Color | Blue |
| Finish | Liquid Paint |
| Freight Class | 110 |
| Country of Origin | US |
| Warranty | 1 Year (Limited - Parts) |
