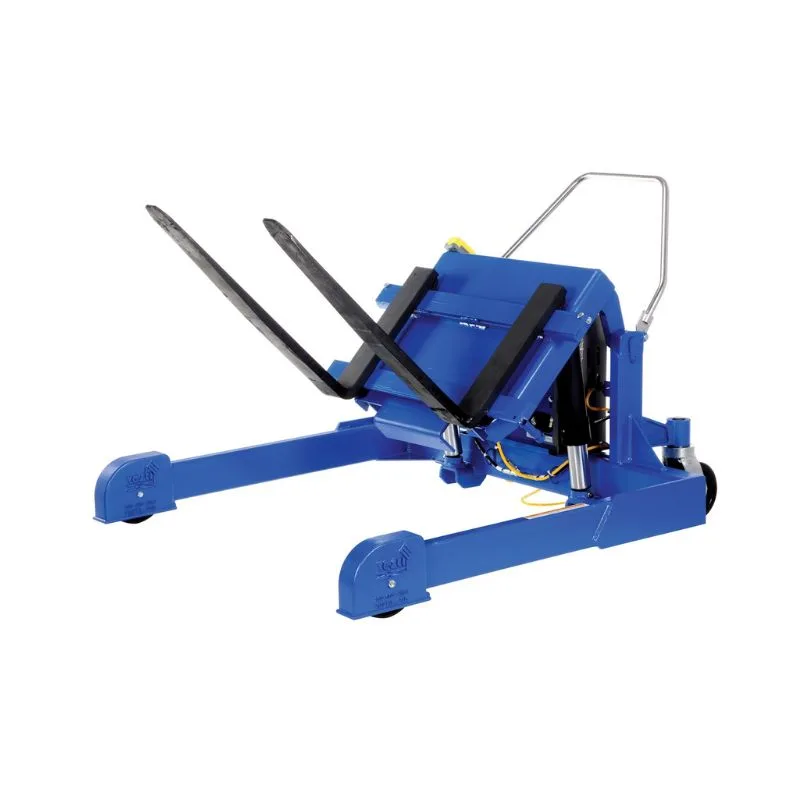

The Vestil TMS-60-AC Steel Tilt Master Straddle lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. It features a folding ergonomic handle for quick and easy maneuverability. This Lift has a thin profile to allow the user to get as close to the load as possible. The unit has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with virtually any kind of container or pallet and is powered by an AC electric motor that. The unit comes standard with a push-button hand control on a coil cord.
| Item Number | TMS-60-AC |
|---|---|
| Manufacturer Part # | TMS-60-AC |
| Brand | |
| Weight | 978 lb |
| Dimensions (LΓWΓH) | 73.25β³ Γ 57.25β³ Γ 29β³ |
| Lead Time | 35 days for 1β2 units Β· call for 3+ units |
| Load Capacity (lbs.) | 6000 |
| Operator Reach (in.) | 13-1/2 |
| Fork Width (in.) | 4 |
| Fork Length (in.) | 35-1/2 |
| Rotated Height (in.) | 37 |
| Lowered Height (in.) | 3 |
| Max Tilt (degrees) | 90 |
| Power Type | 115V / 1 PH |
| Wheel Dia. (in.) | 8 |
| Wheel Width (in.) | 3 |
| Wheel Type | Phenolic |
| Folding Handle Length (in.) | 20 |
| Load Center (in.) | 18 |
| Compatible Products | Quick Ship |
| Capacity (lbs) | 6000 |
| Material | Steel |
| Color | Blue |
| Finish | Liquid Paint |
| Freight Class | 175 |
| Country of Origin | US |
| Warranty | 1 Year (Limited - Parts) |
