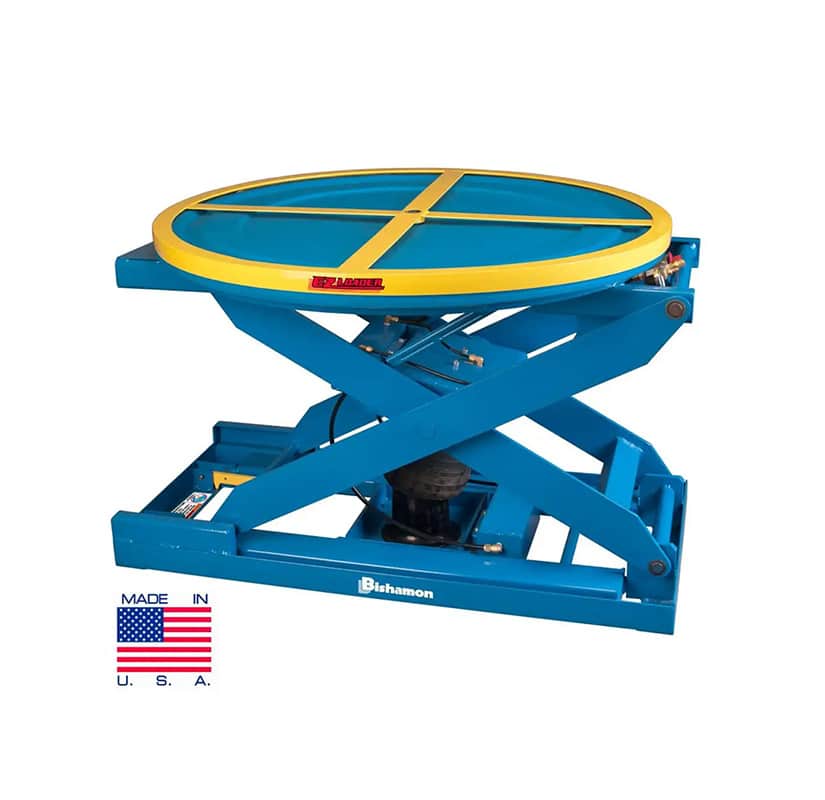

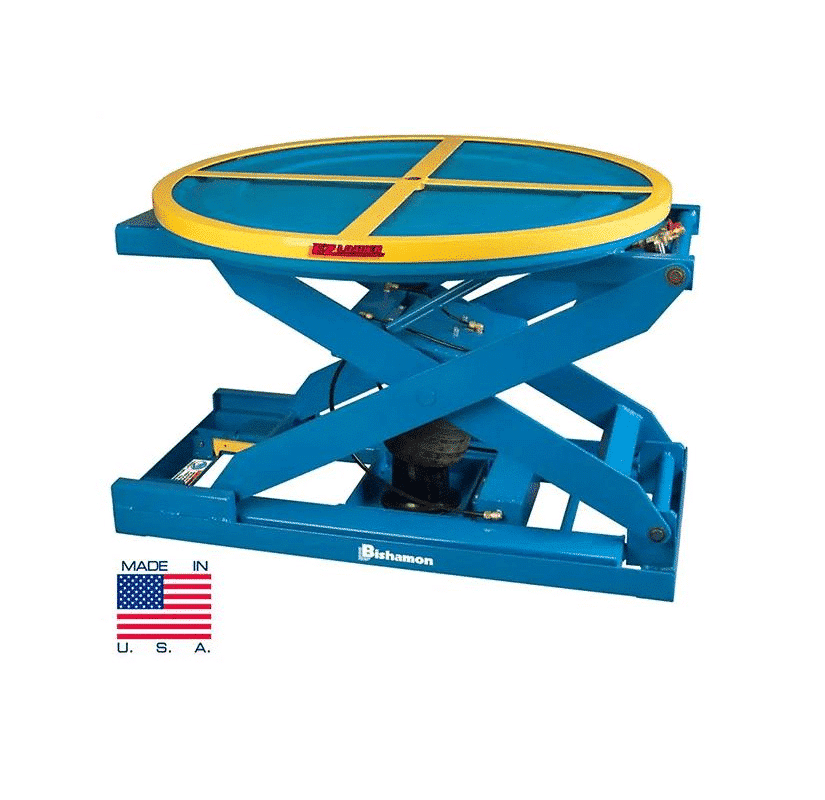

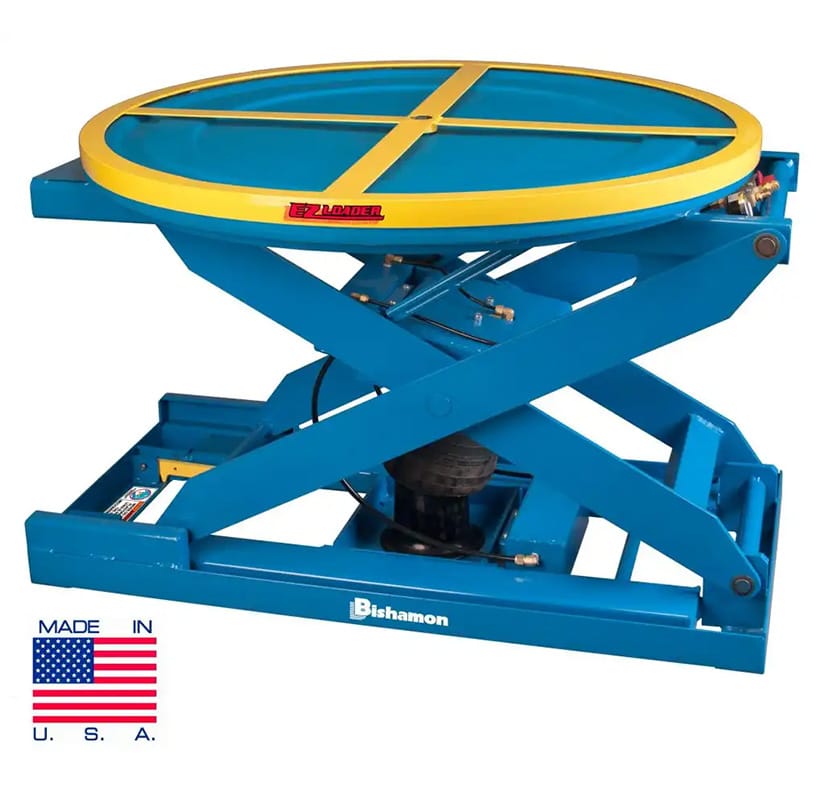

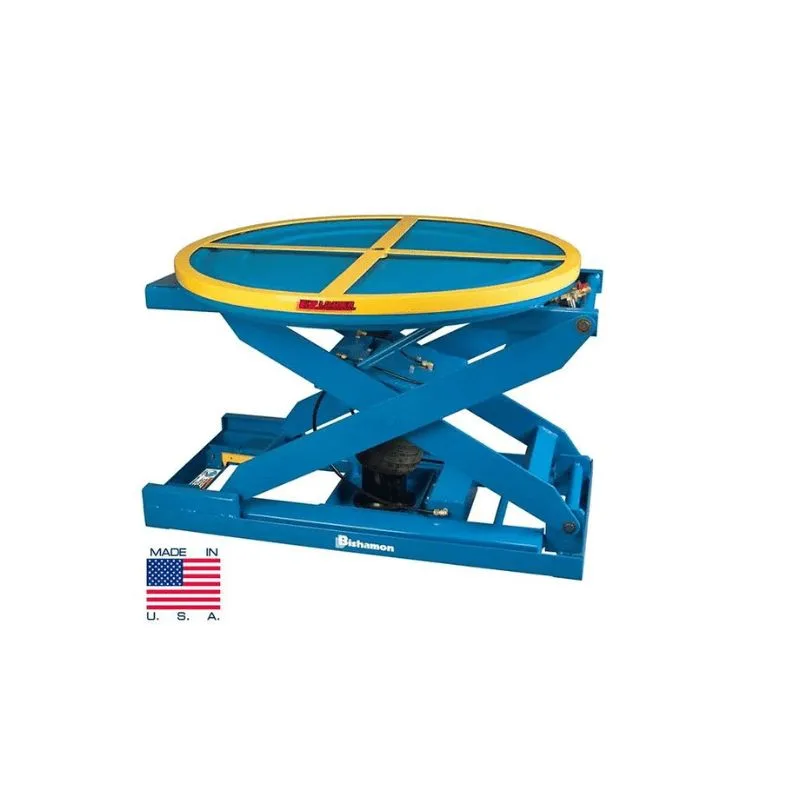

Bishamon EZ Loader Pallet Positioner

The Bishamon EZ Loader Pallet Positioner is a pneumatic pallet positioner here to make your life easier. It will handle a wide range of weight capacities from 250 lbs up to 4,000 LBS! To reduce even more stress on facility resources - we added an easy-to-use knob called "Ez Adjust". This three-position adjustment allows you control over how much air pressure there should be while operating the EZ loader pallet positioner without changing any settings in between uses too which saves time and money for companies who may not always have access at all hours due to their proximity or location within the workplace environment. We also carry Bishamon EZ Loader parts! Download the Bishamon EZ loader manual below.

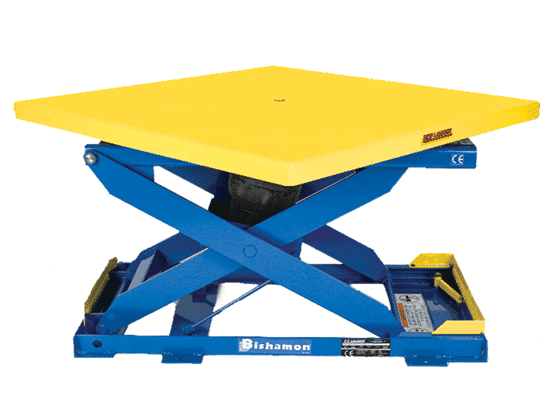

Bishamon Automatic Pallet Positioner

• Capacity: 4,000 lbs.
• Self-Leveling Capacity Range: 250 lbs. up to 3,500 lbs.
• Max. Height: 30.50 in. (29.53 in. for non-rotating model)
• Min. Height: 10.50 in. (9.63 in. for non-rotating model)
• Approx. Ship Weight: 500 lbs.

More About The Self Leveling Pallet Table

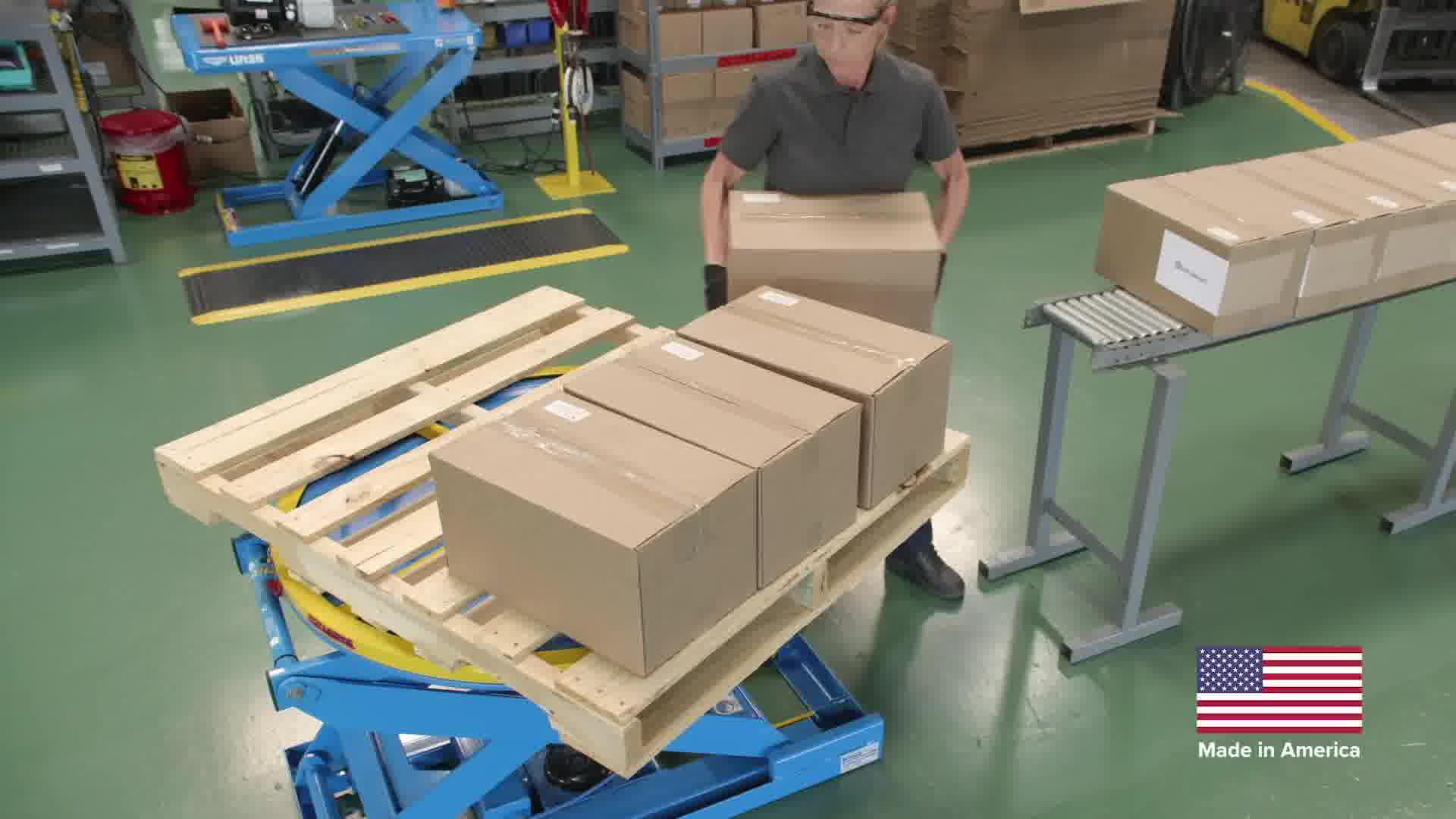

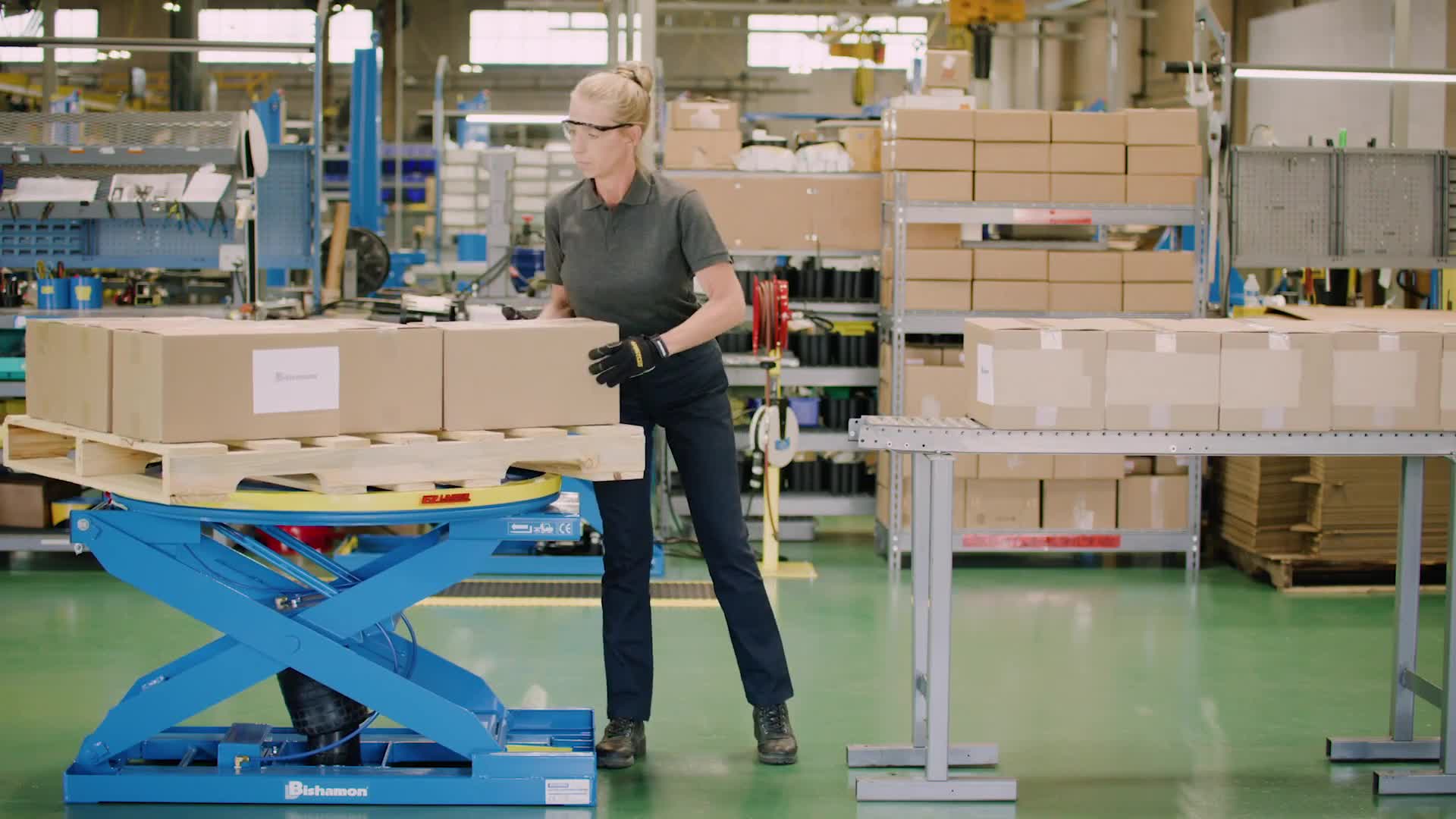

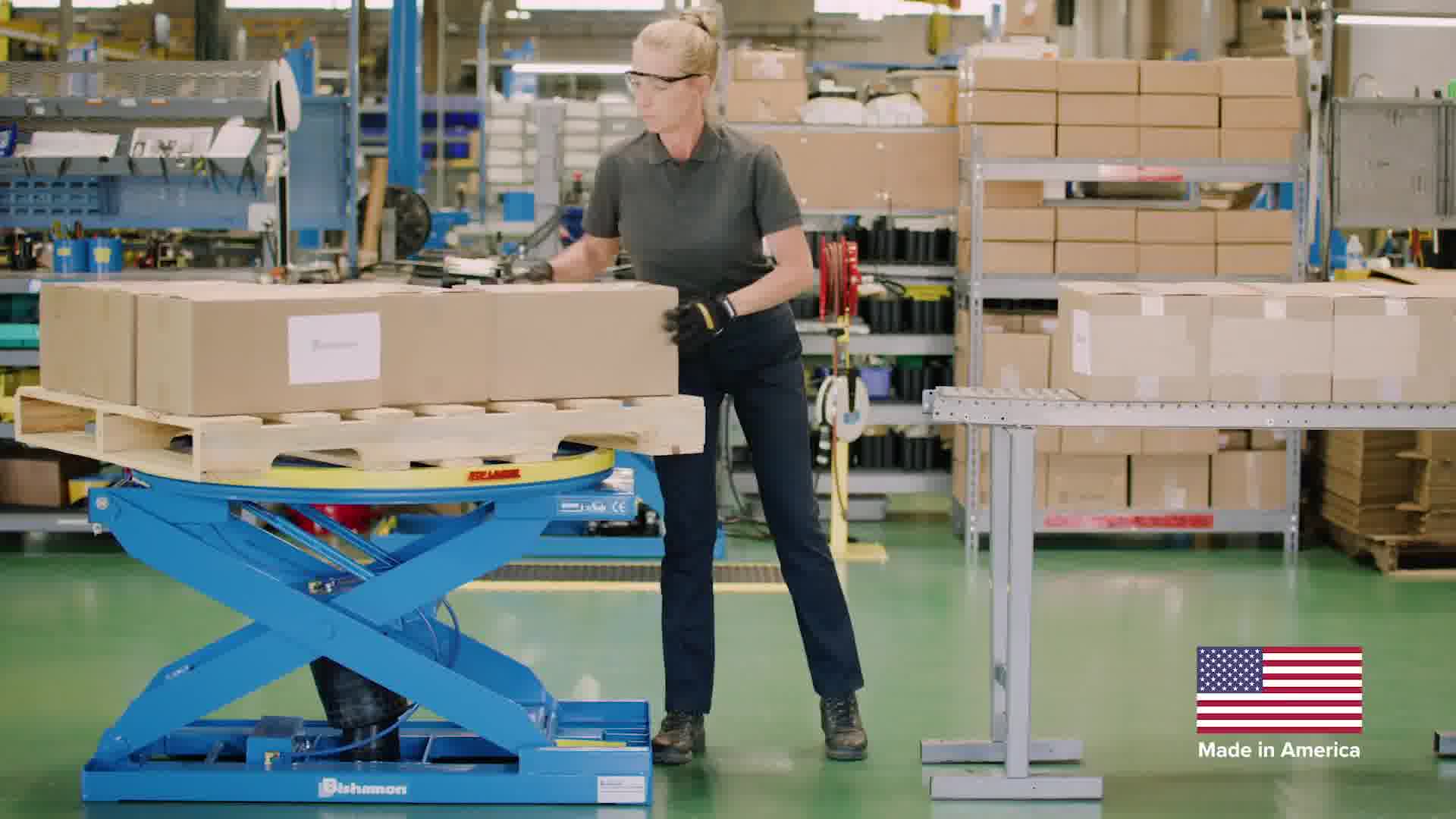

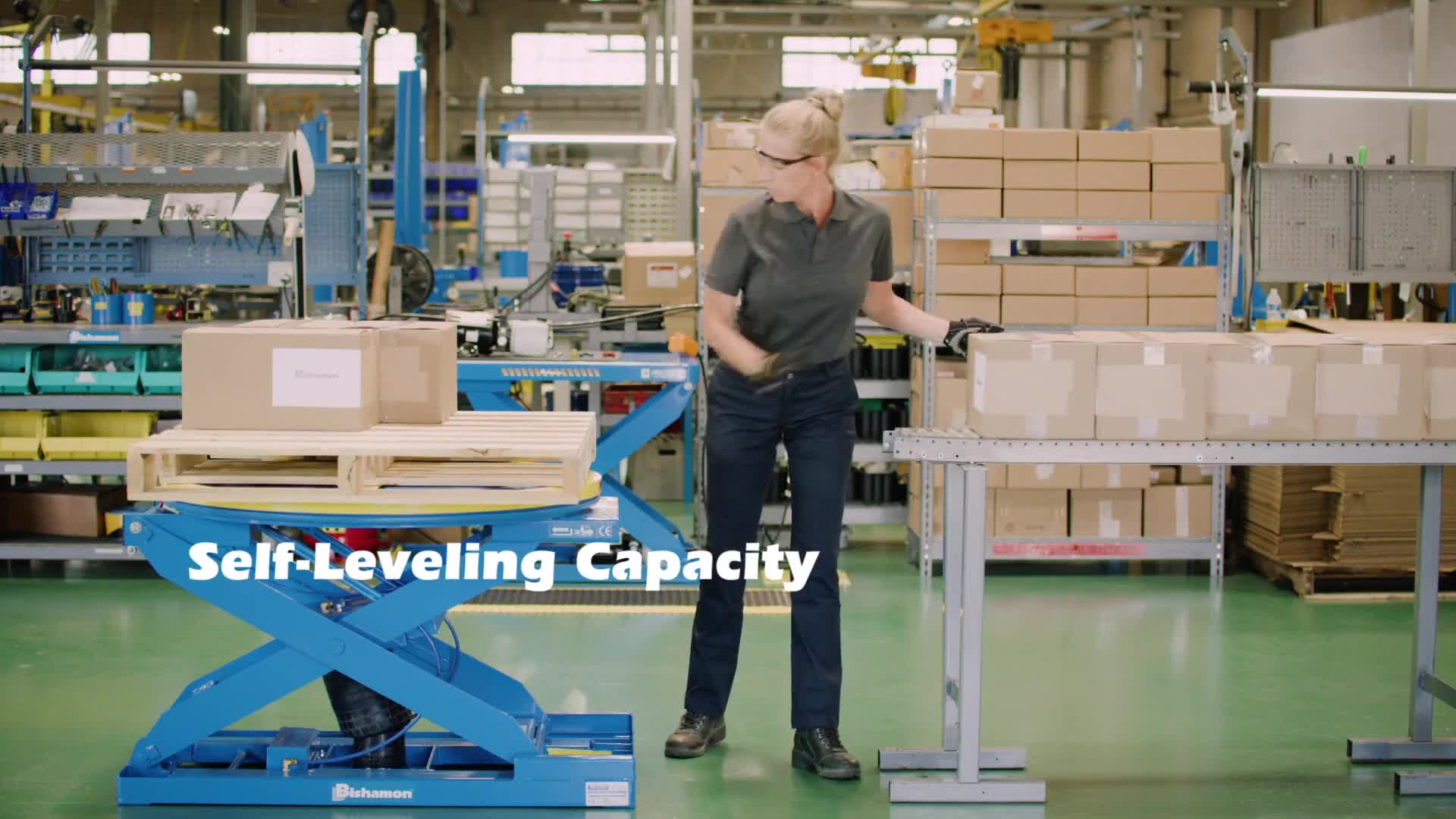

• Self-leveling design automatically keeps the top of the load at a convenient working height to help eliminate bending and improve productivity.

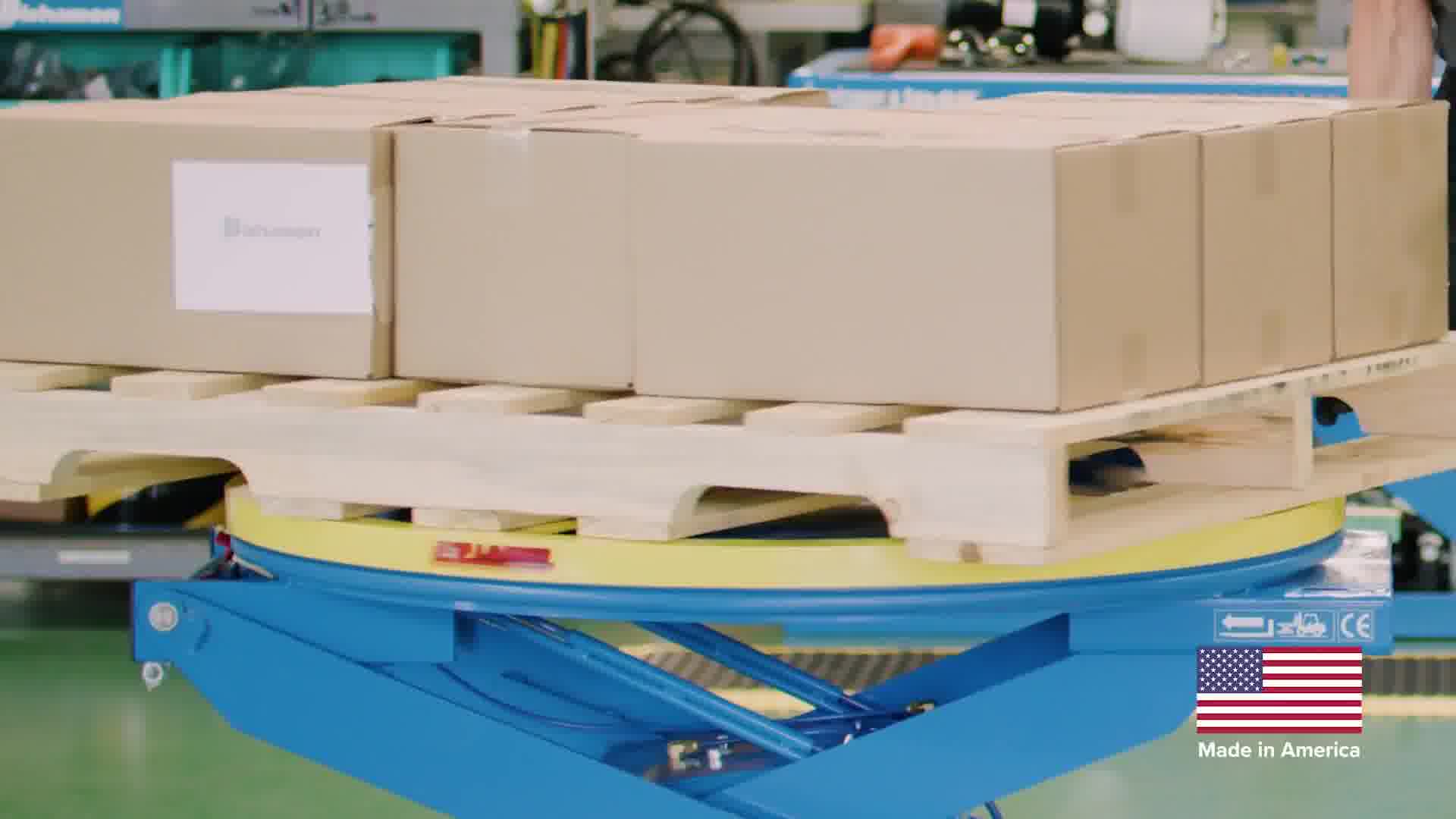

• The integral rotator ring helps eliminate reaching and stretching.
• Captive air operation eliminates cumbersome mechanical springs and gives more controlled (dampened) movement of the platform.

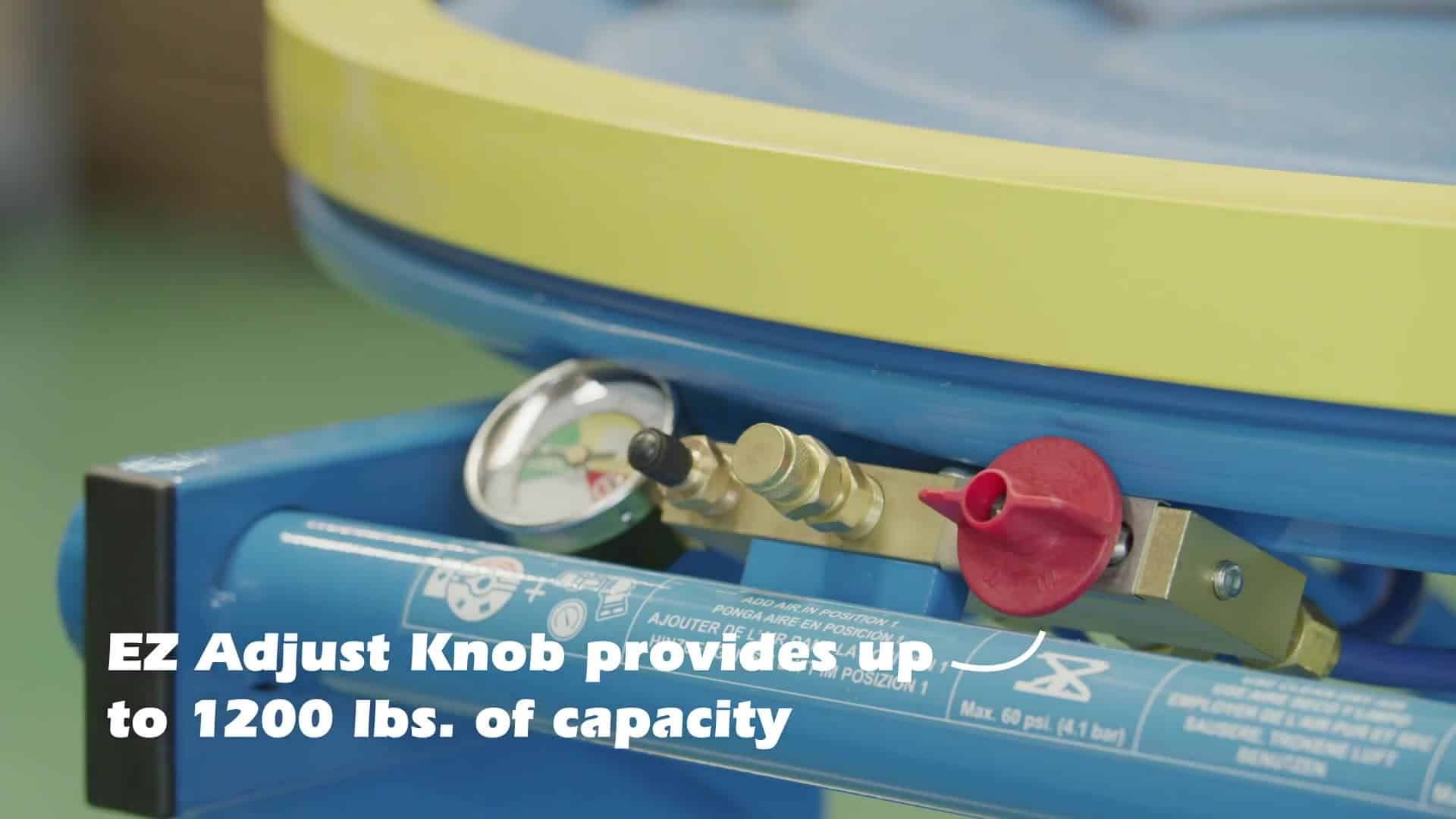

• A three-position EZ Adjust knob allows adjustment of the collapsed capacity without changing air pressure.
• The secured ball bearing center pivot of the 43 in. diameter rotator ring provides smooth, even rotation.
• The pressure relief valve prevents excess pressure build-up.

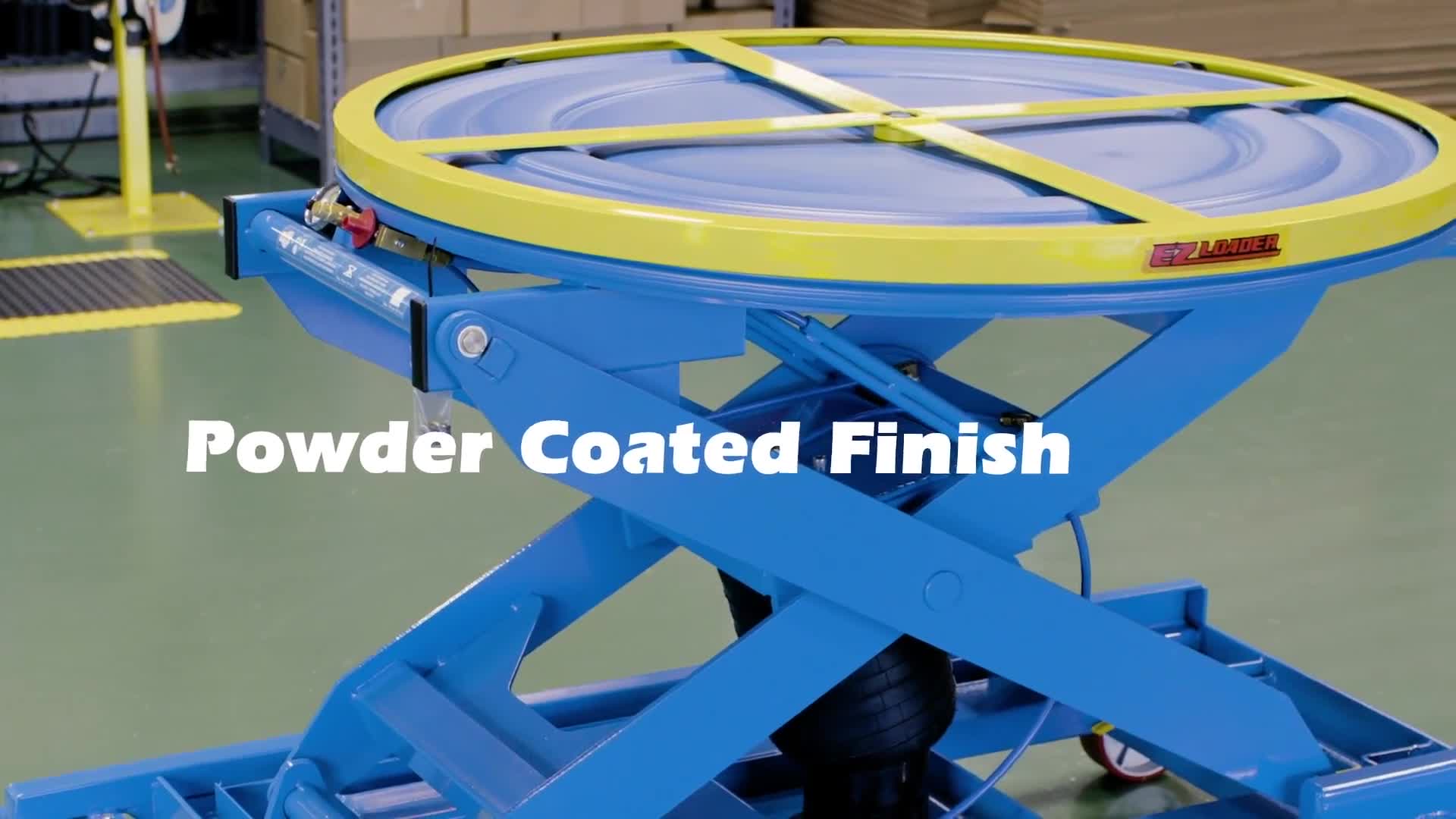

• Surfaces are phosphatized and powder coated with high-quality polyester for a lasting, durable finish.
• Rollers are entrapped in the base frame and platform for added stability.

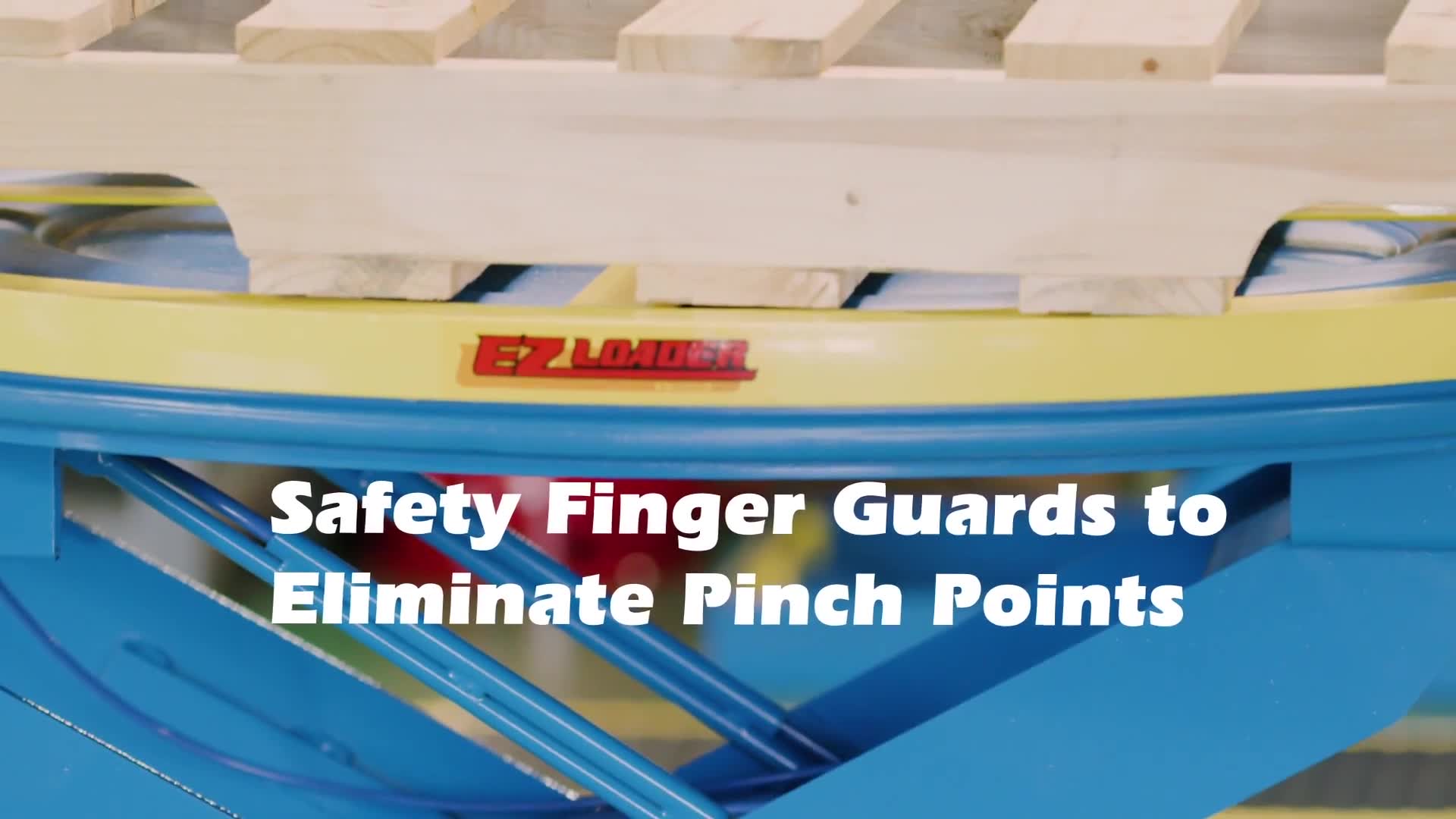

• A safety finger guard eliminates pinch points with the rotator spoke and bearings.

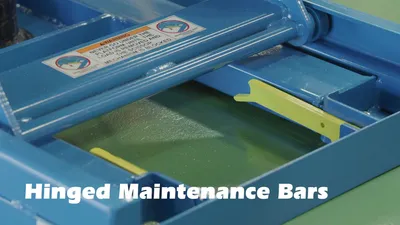

• Integral maintenance blocks.

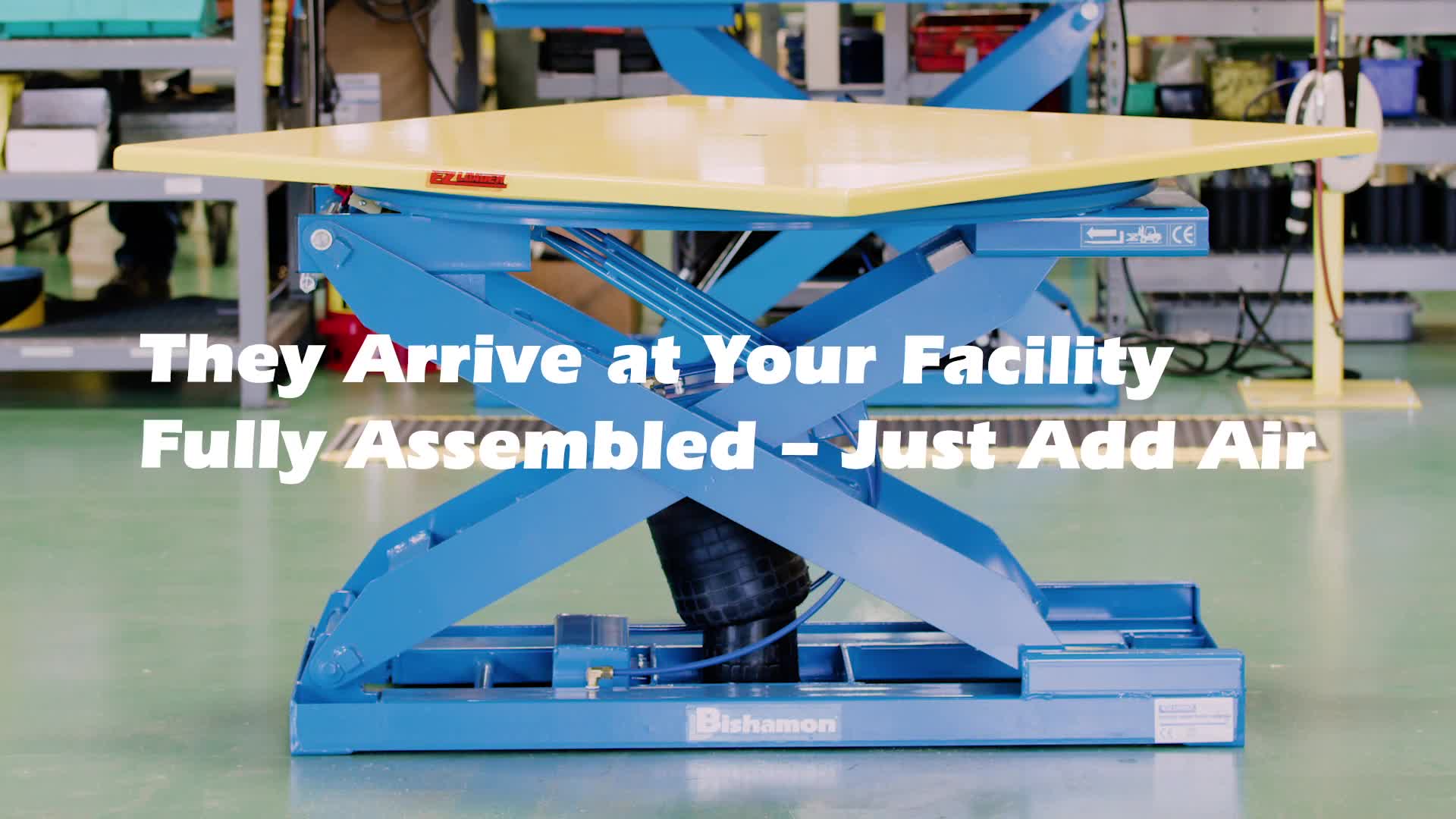

• EZ Loaders arrive at your facility fully assembled - just add air!

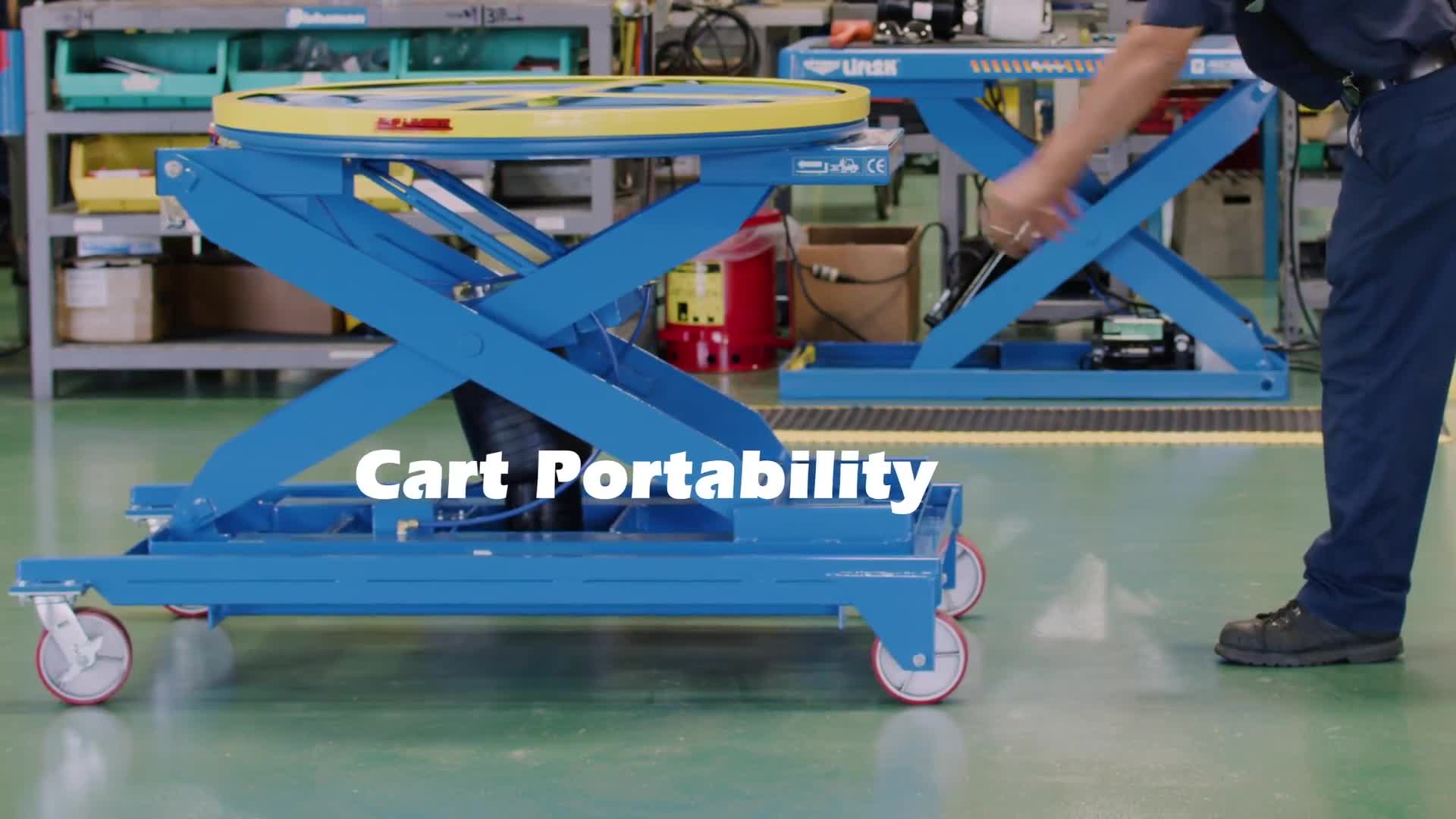

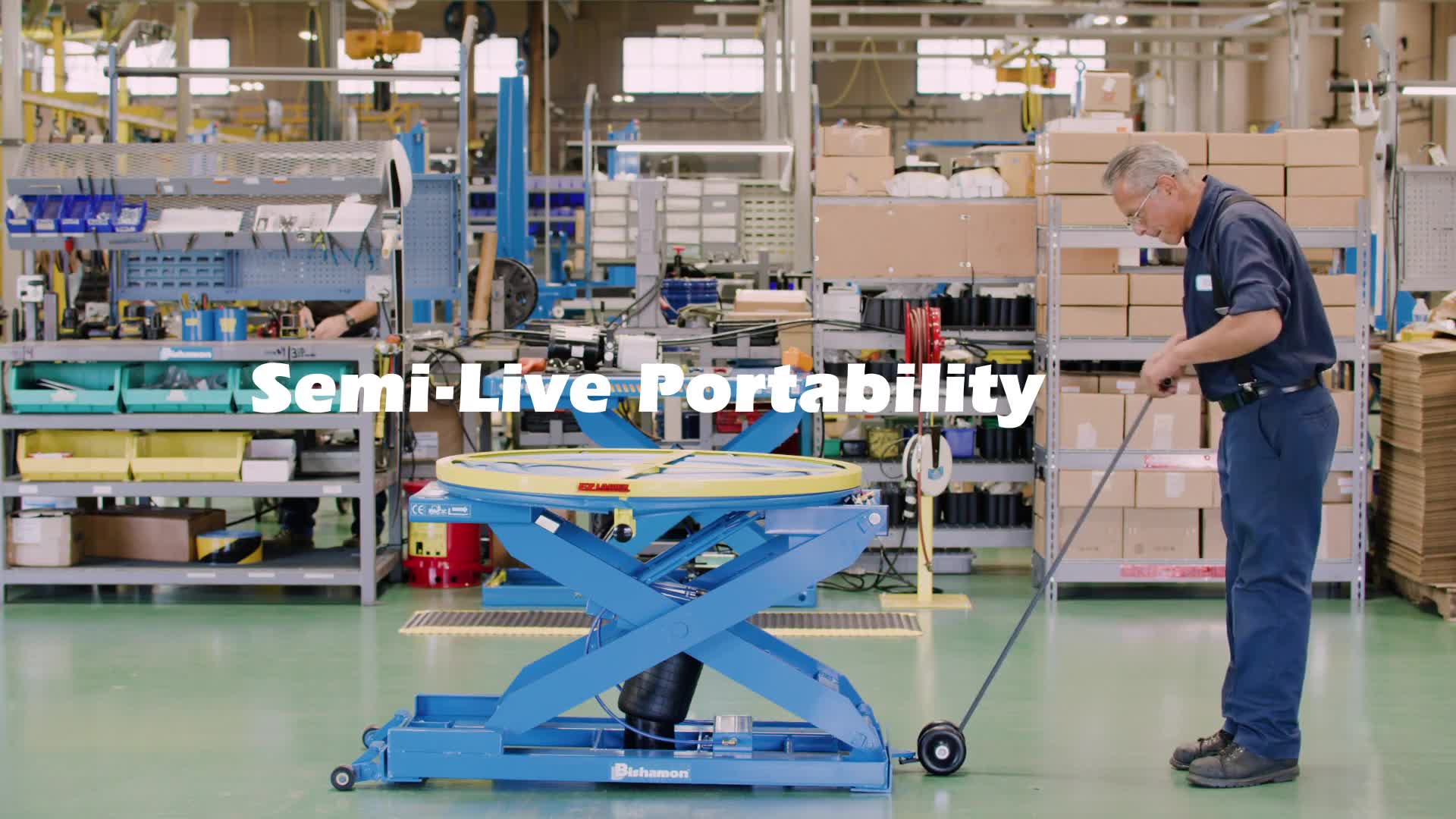

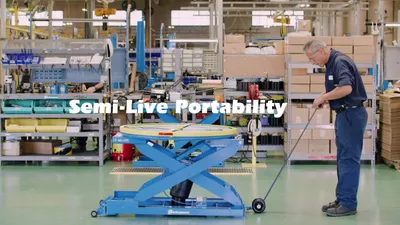

• Easily transported with a fork truck or via optional portability packages.
• The EZ Loader is CE marked under the Machinery Directive (2006/42/EC).
