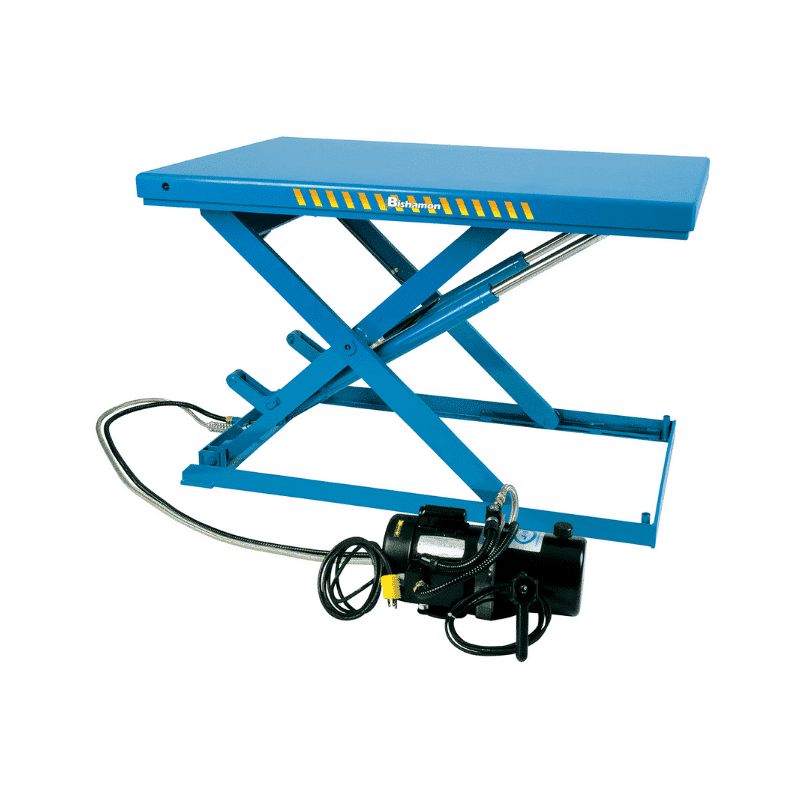

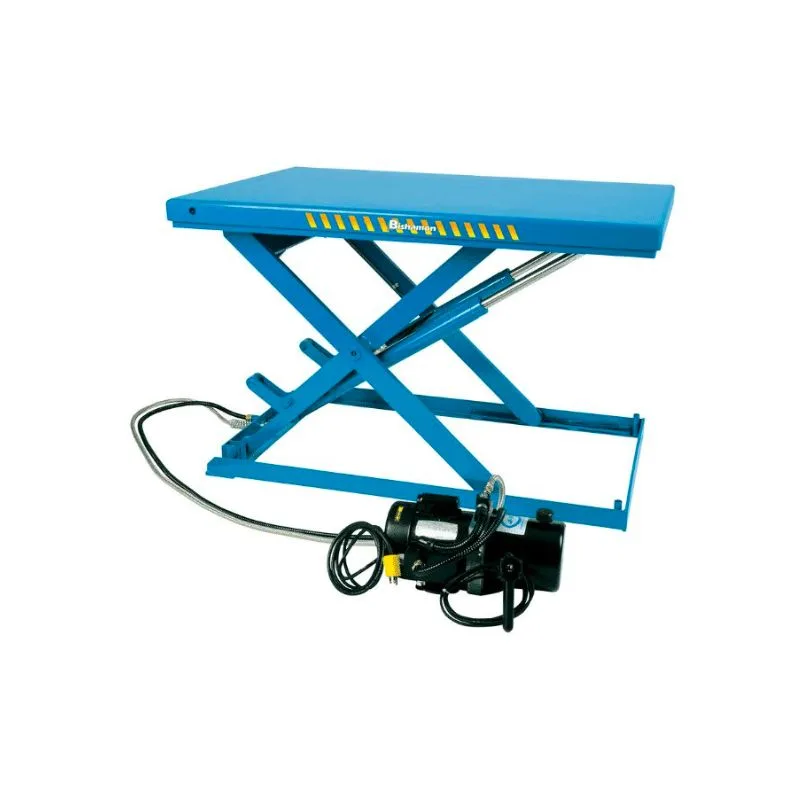

Bishamon LX-25L Low Profile Lift Table

The Bishamon LX-25L Low Profile Lift Table offers 550 pounds of lifting capacity with a convenient low profile. This table feature, optional foot-operated control, lowered heights of 2.9 inches, and a platform size of 23.5 x 40 inches. With the optional approach ramp accessory, these are ideal for pallet trucks, products, parts, carts, or other portable industrial equipment.

• Vertical Travel: 27.1 in.
• Max. Height: 30.0 in.
• Min. Height: 2.9 in.
• Time to Max. Height: 10 sec.
• Time to Min. Height: 8 sec.
• Power Units: 1/2 HP / 115V (single phase)
• Operator Control Voltage: 24V
• Approx. Ship Weight: 257 lbs.
• Extremely low collapsed heights of 2.9 in. to 4.3 in. provide access for rolling products, carts, or pallet trucks.

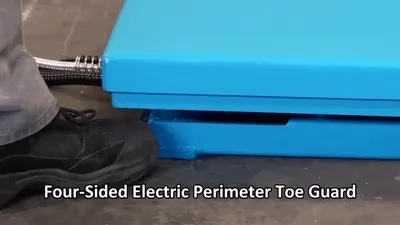

• Electric full-perimeter toe guard around the platform provides optimum operator safety.
• Heavy-duty construction with captured scissor rollers for maximum stability and baked enamel finish.

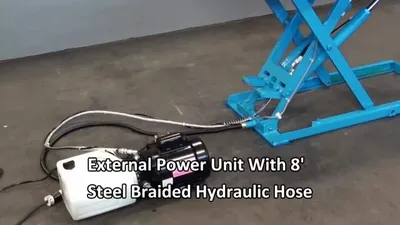

• High-performance external electric-hydraulic remote power unit with 8 ft. long steel braided hydraulic hose.
• Handheld operator control unit with 8 ft. of cord. (foot-operated control optional)

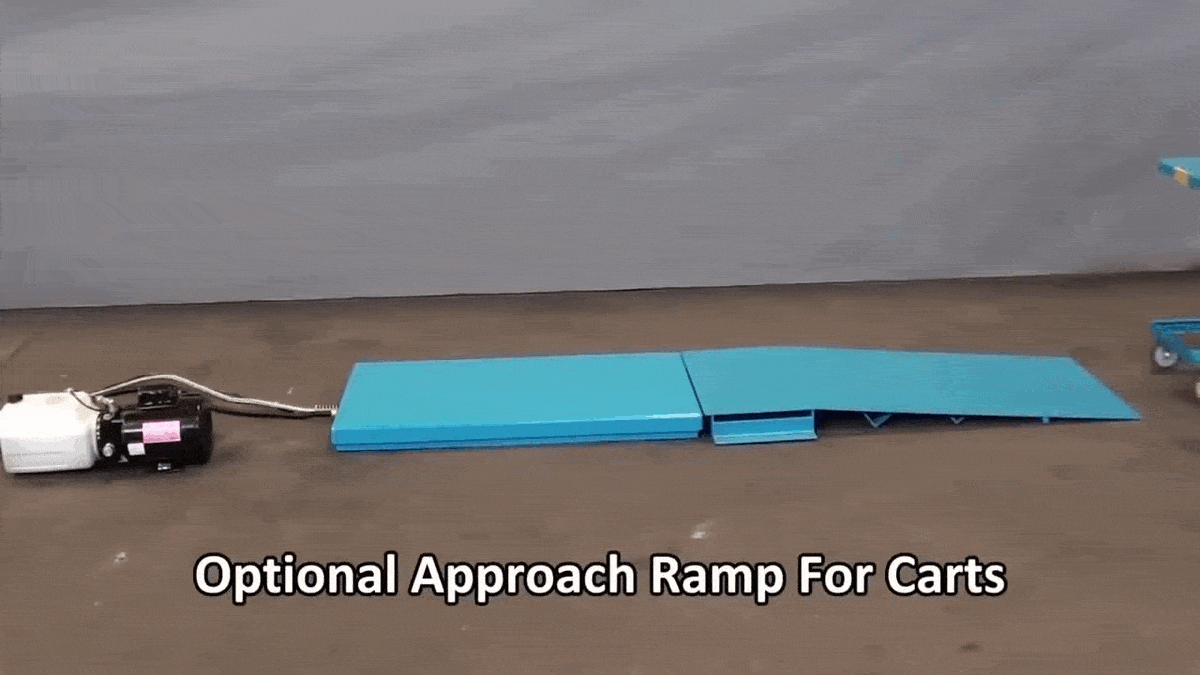

• Approach ramps are available for easier access for carts and pallet trucks. (pallet truck ramps are longer and shallower)
