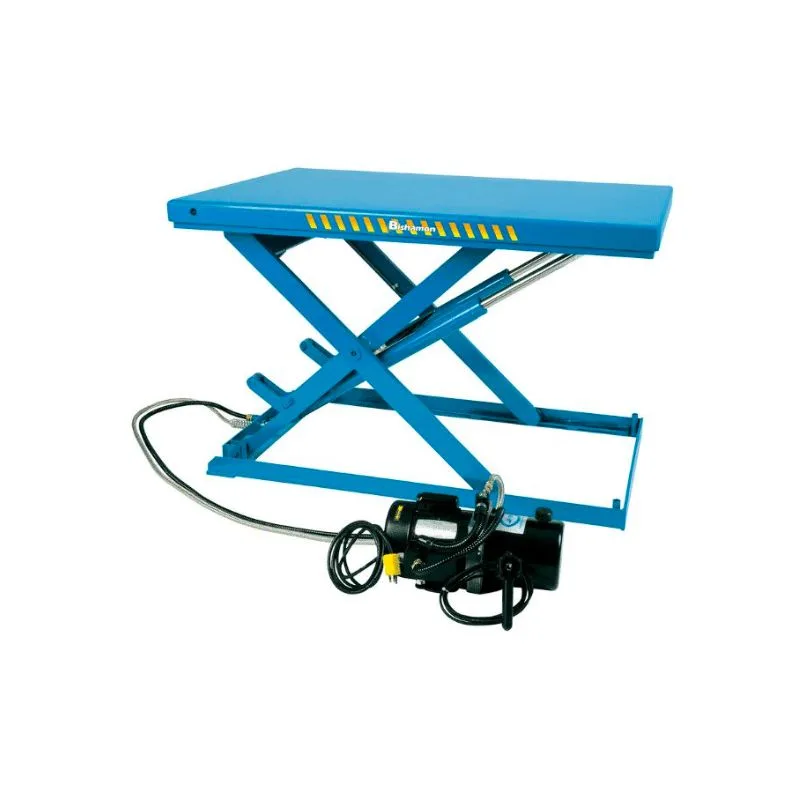

Bishamon LX-200WL Low Profile Lift Table

Bishamon LX-200WL Low Profile Lift Table offers 4,400 pounds of lifting capacity with a convenient low profile. This table feature, optional foot-operated control, lowered heights of 4.3 inches, and a platform size of 45.5 inches x 81 inches. With the optional approach ramp accessory, these are ideal for pallet trucks, products, parts, carts, or other portable industrial equipment.

• Vertical Travel: 35.1 in.
• Max. Height: 39.4 in.
• Min. Height: 4.3 in.
• Time to Max. Height: 34 sec. (115V motor may increase the time by up to 50%)
• Time to Min. Height: 26 sec.
• Power Units:
• 1 HP / 115V or 230V (single phase)
• 1 HP / 230V or 480V (three phase)
• Operator Control Voltage: 24V
• Approx. Ship Weight: 1,435 lbs.
• Extremely low collapsed height of 4.3 in. provides access for rolling products, carts, or pallet trucks.

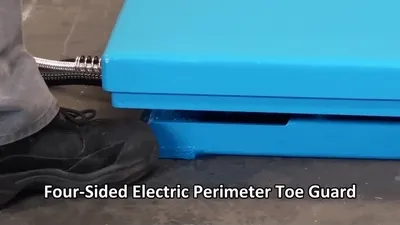

• Electric full-perimeter toe guard around the platform provides optimum operator safety.
• Heavy-duty construction with captured scissor rollers for maximum stability and baked enamel finish.

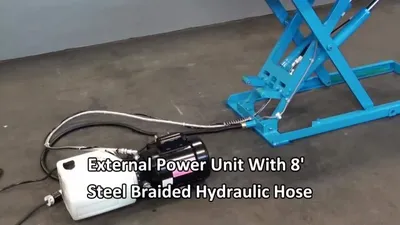

• High-performance external electric-hydraulic remote power unit with 8 ft. long steel braided hydraulic hose.
• Handheld operator control unit with 8 ft. of cord. (foot-operated control optional)

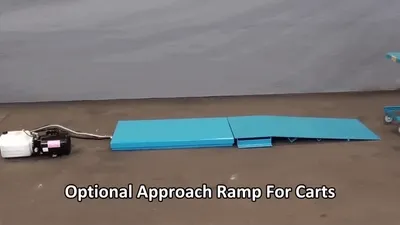

• Approach ramps are available for easier access for carts and pallet trucks. (pallet truck ramps are longer and shallower)
