Item #F89017 · MFR #F89017
Valley Craft
Sales & expertise backed by Premier Handling Solutions, Inc.

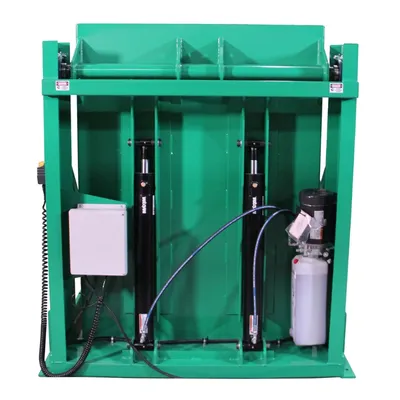

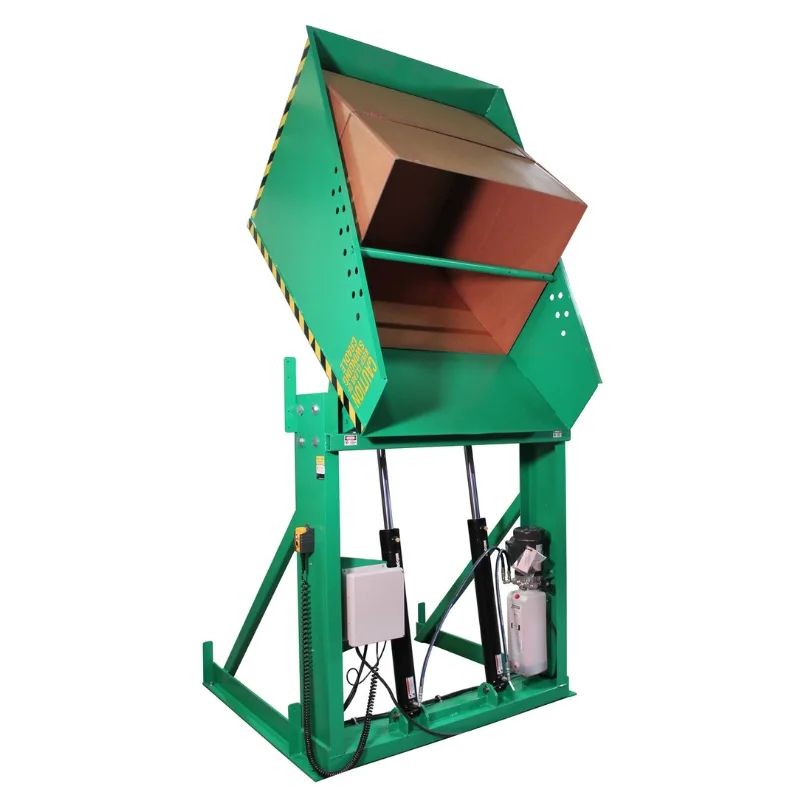

Valley Craft’s box dumper (F89017) is a heavy-duty solution designed to simplify material handling and reduce strain on workers. With a 4,000 lb. capacity, a 60” dump height, and a spacious 51” x 48” chute, it’s ideal for a wide range of container sizes including gaylords, totes, and tubs. Powered by a 230V 3-phase motor and operated using a magnetic handheld pendant, this dumper delivers reliable performance with every cycle—and it ships fully assembled, and made in the U.S.A.
| Item Number | F89017 |
|---|---|
| Manufacturer Part # | F89017 |
| Brand | Valley Craft |
| Weight | 2275 lb |
| Dimensions (in.) | 66"W x 63"D x 72"H |
| Load Capacity (lbs.) | 4000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Chute Size (in.) | 51"W x 48"D |
| Frame Height (in.) | 68" |
| Chute Height (in.) | 72" |
| Chute Reach (in.) | 5" |
| Dump Height (in.) | 60" |
| Overhead Clearance (in.) | 146" |
| Horizontal Clearance (in.) | 91" |
| Dump Angle (degrees) | 45�� |
| Voltage | 230 |
| Horsepower | 2 |
| Power Source | 3 Phase |
| Lead Time | 20 days |
