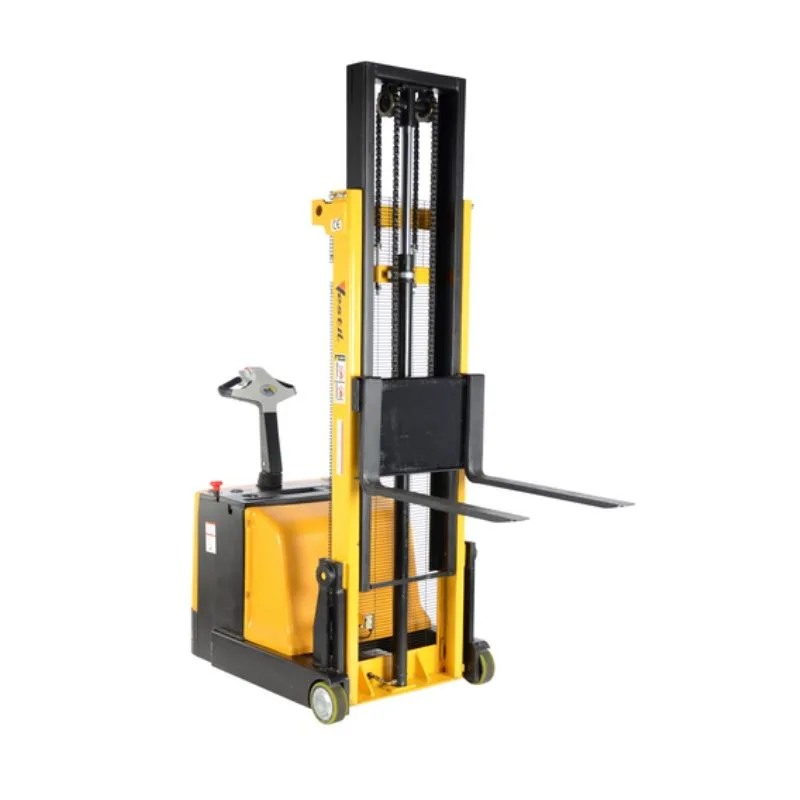

Vestil S-CB-118 Steel Counter Balanced Powered Drive Lift

Vestil Item #S-CB-118 · MFR #S-CB-118
Quick Answer: The Vestil S-CB-118 Steel Counter Balanced Powered Drive Lift is a pallet stacker with 1000 load capacity and 2 lowered height. Priced at $10,999, in stock with factory-direct shipping.
  • The Vestil S-CB-118 Steel Counter Balanced Powered Drive Lift is ideal for die loading, machine feeding, and for loading and unloading trucks.
  • The high torque drive and lift motor handles heavy-duty jobs.
  • The ergonomic handle features an easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn.
Brand
Vestil
Condition
New
Weight
1832 lb
Dimensions
85″L × 32.25″W × 78″H
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (855) 719-1415 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Vestil S-CB-118 Steel Counter Balanced Powered Drive Lift is ideal for die loading, machine feeding, and for loading and unloading trucks. The high torque drive and lift motor handles heavy-duty jobs. The ergonomic handle features an easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the Proprietary Safety-enhancing Emergency Reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five (5) seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than five (5) seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. The powered lift has lead acid deep cycle batteries, an integral battery charger, and battery level gauge. The stacker rolls smoothly on poly-on-steel steer & load wheels. The high level of serviceability simplifies maintenance and prolongs equipment life. The forks adjust to suit different pallets and the easy access battery compartment simplifies battery maintenance.

  • Fully-powered pallet truck makes movement of pallets quick and easy
  • Includes fingertip RAISE and LOWER buttons for operator convenience
  • Safety belly reverse button improves worker safety
  • Easy-to-operate throttle for forward and reverse direction

Specifications

Item NumberS-CB-118
Manufacturer Part #S-CB-118
Brand Vestil
Weight1832 lb
Dimensions (L×W×H)85″ × 32.25″ × 78″
Lead Time3 days for 1–1 units · 12 days for 2–3 units · 20 days for 4+ units
Load Capacity (lbs.)1000
Fork Width Min/Max (in.)6-3/8 to 23-5/8
Fork Length (in.)30
Lowered Height (in.)2
Raised Height (in.)118
Drive Motor24V
Lift Motor24V
Drive Motor (kW)0.7
Lift Motor (kW)2
Fork Width (in.)3-1/8
Battery Qty2
Capacity (lbs)1000
MaterialSteel
ColorBlack / Yellow
Freight Class110
Country of OriginCN
Warranty1 Year (Limited - Parts)
