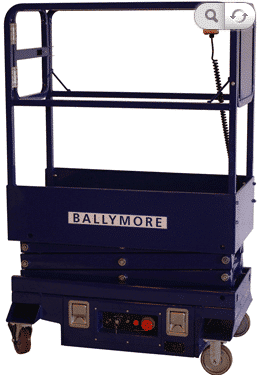

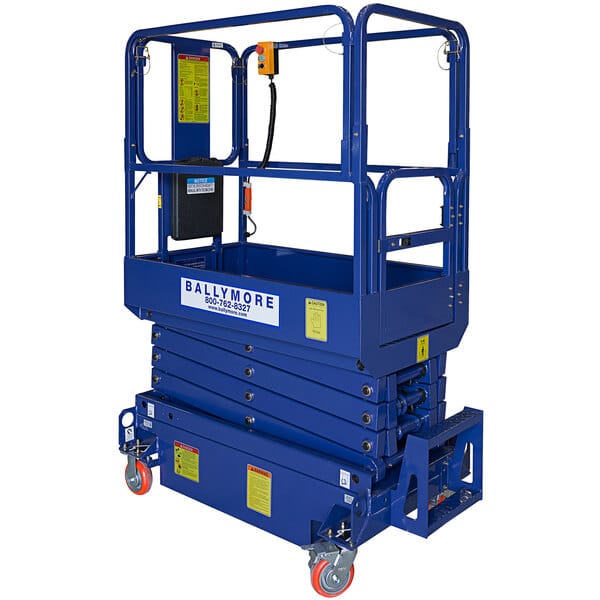

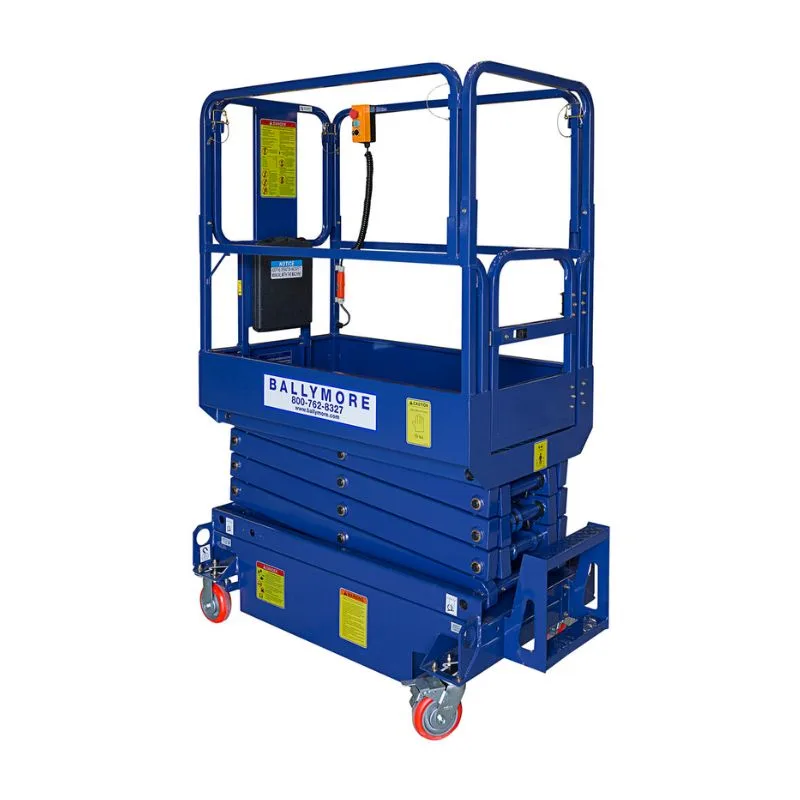

Ballymore MSL-10 Battery-Powered Compact Scissor Lift Work Platform

Ballymore Item #MSL-10 · MFR #MSL-10
Quick Answer: The Ballymore MSL-10 Battery-Powered Compact Scissor Lift Work Platform is a platform lift with 500 lbs. load capacity and 77 Inches overall height. Priced at $10,874.40, in stock with factory-direct shipping.
  • This Ballymore MSL-10 28″ x 50″ Battery-Powered Compact Scissor Lift Work Platform with 16′ working height features a compact design that simplifies vertical access in areas like warehouse aisles where space may be limited.
  • For further convenience where mobility is concerned, the base of the unit has integrated pockets to allow it to be lifted by a forklift.
  • A set of (4) 6″ casters otherwise allows the unit to be pushed where it’s needed, while floor locks eliminate movement during use.
Condition
New
Weight
1200 lb
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (855) 719-1415 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

This Ballymore MSL-10 Battery-Powered Compact Scissor Lift Work Platform - 28" x 50" with 16' working height features a compact design that simplifies vertical access in areas like warehouse aisles where space may be limited. For further convenience where mobility is concerned, the base of the unit has integrated pockets to allow it to be lifted by a forklift. A set of (4) 6" casters otherwise allows the unit to be pushed where it's needed, while floor locks eliminate movement during use.

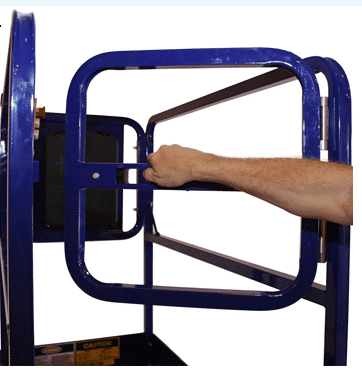

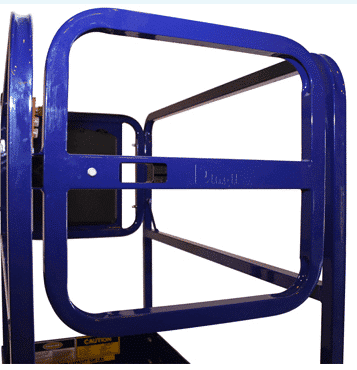

Powered by a 12V DC battery stored in a built-in, locking drawer, this unit effortlessly lifts a combined operator and equipment load of up to 500 lb. The unit has a safe and spacious 28" x 50" platform, propelled manually by a simple push-button controller, that raises and lowers between 26" and 9' 10", reaching an approximate working height up to 16'. To provide simple access while ensuring operator safety, the platform has a hinged gate and is equipped with tall guard rails, midrails, and toe guards.

For additional safety, the unit features an emergency stop button and an emergency lowering system. Constructed of heavy-duty steel, this unit is built tough to easily endure the demands of industrial applications.

Overall Dimensions:
Length: 57"
Width: 30"
Height: 77"
Capacity: 500 lb.

Platform Dimensions:
Length: 50"
Width: 28"
Height: 26" - 9' 10"

Specifications

Item NumberMSL-10
Manufacturer Part #MSL-10
Brand Ballymore
Weight1200 lb
Load Capacity (lbs.)500 lbs.
Overall Length (in.)57 Inches
Overall Width (in.)30 Inches
Overall Height (in.)77 Inches
Platform Length (in.)50 Inches
Platform Width (in.)28 Inches
Adjustable HeightAdjustable
Platform Height (in.)26 - 118 Inches
Battery Type12V
Caster Size (in.)6 Inches
Caster TypeWith Casters
FeaturesPowered
MaterialSteel
Caster Qty4 Casters
Power TypeBattery
StyleScissors
SubtypeScissor Lifts
