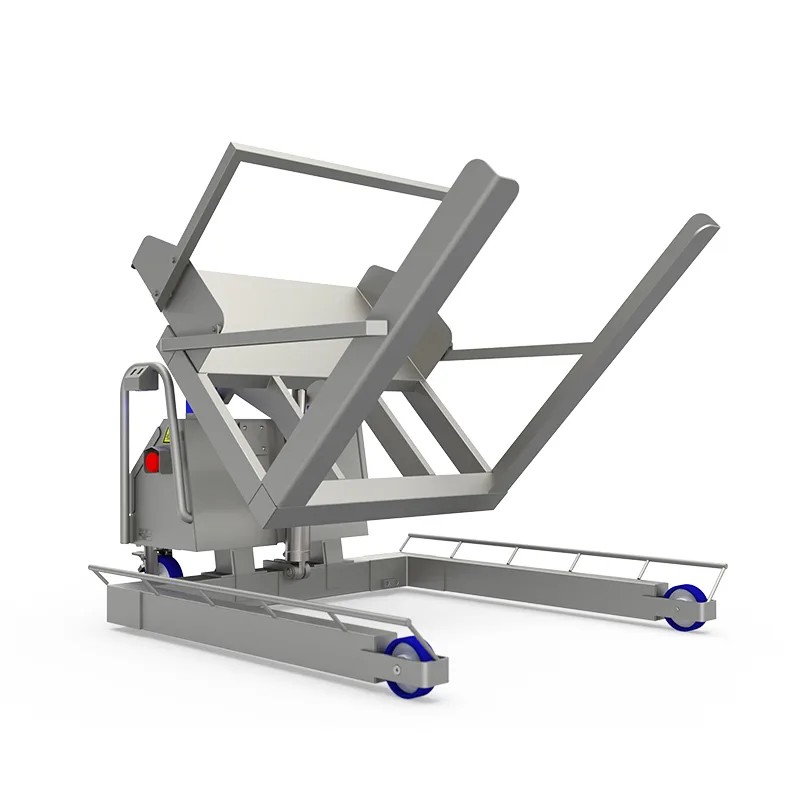

Stainless Steel Wide Bin Tipper

Improved Process

The Premier Handling Stainless Steel Wide Bin Tipper are simple, easy-to-use machines that enhance production and reduce the risk of workplace injury. Independent controls on both sides of the machine are reachable regardless of its actual position with respect to a post-processing or sorting table, thus eliminating all the extra walking around the machine to operate it, reducing downtime and making it a very popular solution at deboning facilities. This machine can also be easily integrated into a process line to discharge large bins onto a belt conveyor or into a screw conveyor’s hopper.

Enhanced Productivity

Our Tippers is designed to be installed at specific locations for emptying operations. When needed, it can still be occasionally relocated. A bin of product (meat, fish, vegetables, etc.) is moved to the designated area and loaded into the tipper with a pallet jack or forklift. The bin is then tipped in a single smooth motion until the product starts to come out or even further to the maximum set angle. Because manual lifting, crouching and bending are no longer necessary, the risk of back pain, strain and injury is reduced. Healthy personnel are happier, more efficient and productive, and throughput is maximized.

Rechargeable Battery

Our Tippers are powered by rechargeable batteries, so they can be used everywhere on the work floor. The battery is suitable for operation in refrigerated areas and can be plugged in overnight for convenient charging. With a fully charged battery you can handle approximately 50 tons of products.

Operational Safety

Our Tippers with two heavy-duty locking swivel casters mounted outside of the frame for maximum stability, can optionally be set to a tipping angle of up to 110 degrees while remaining safe and stable. Like other Tippers, this machine is driven by a hydraulic cylinder that uses gravity for the lowering action. So, it’s very safe because it significantly reduces the risk that its moving parts might incur bodily injury. For even greater safety, it features an audible backup signal that warns others about parts in motion, ensuring extra attention during operation.

Hygiene and Food Safety

The food industry can enjoy the benefits of our specially designed tippers. Not only are they safe and suitable for direct contact with food items, but also feature stainless steel construction to simplify cleaning processes–even power washers! Make your cleanup routine a breeze today.

Standard Features:

• Single hydraulic cylinder
• Backup sound alarm
• Heavy-duty locking casters
• Powerful rechargeable battery
• Independent controls on each side
• Dead man’s (hold-to-run) buttons (Up/Down)

Available Options:

• Increased dumping height
• Tapered discharge chute / narrowed spout for improved product flow
• Extended discharge chute: up to 100 mm (4″) without changing the machine’s frame
• Raised discharge chute sides for improved product containment
• Adjustable, swinging or customized retaining bar for various bin sizes
• Different max. tipping angles: 90, 100 and 110 degrees
• Plug-in (400 V) instead of battery-powered for stationary use
