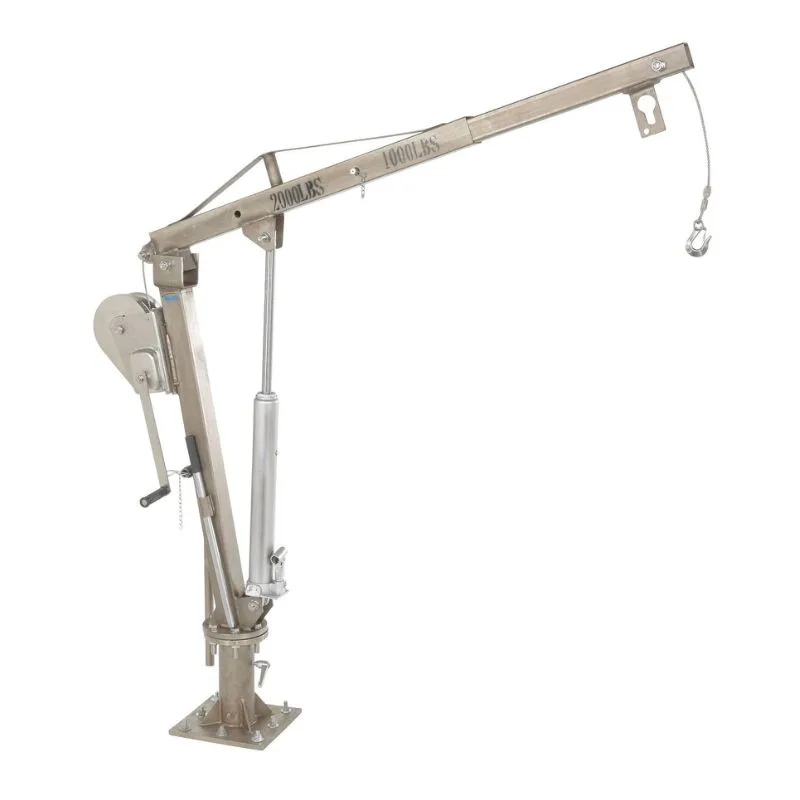

Vestil WTJ-2-SS Stainless Steel Winch Truck Jib Crane

Vestil Item #WTJ-2-SS · MFR #WTJ-2-SS
Quick Answer: The Vestil WTJ-2-SS Stainless Steel Winch Truck Jib Crane is a jib crane with 11-1/2 base height and 11 mounting plate width. Priced at $3,377.37, in stock with factory-direct shipping.

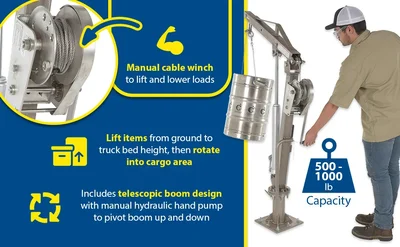

  • This Vestil WTJ-2-SS Stainless Steel Winch Truck Jib Crane lifts items from the ground to truck bed height, then rotate into the cargo area.
  • Includes telescopic boom design with a manual hydraulic hand pump to pivot boom up and down.
  • Manual cable winch to lift and lower loads.
Brand
Vestil
Condition
New
Weight
125 lb
Dimensions
11″L × 32.875″W × 59.5″H
Category
Jib Crane
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

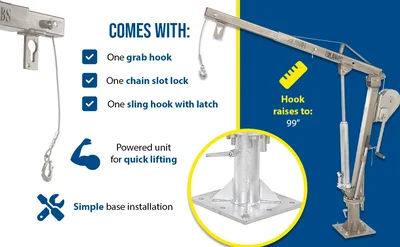

This Vestil WTJ-2-SS Stainless Steel Winch Truck Jib Crane lifts items from the ground to truck bed height, then rotate into the cargo area. Includes telescopic boom design with a manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads. The unit comes with one grab hook, one chain slot lock, and one sling hook with a latch. The unit is designed for vertical lifting only. Do not use the unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy

Specifications

Item NumberWTJ-2-SS
Manufacturer Part #WTJ-2-SS
Brand Vestil
Weight125 lb
Dimensions (L×W×H)11″ × 32.875″ × 59.5″
Lead Time2 days for 1–10 units · 5 days for 11–15 units · call for 16+ units
Extended Boom Reach (in.)52
Extended Lift Range (in.)0 to 86
Retracted Boom Reach (in.)30-1/2
Retracted Lift Range (in.)15-1/2 to 72
Overall Cable Length (ft.)32
Usable Cable Length (ft.)24
Cable Diameter (in.)3/16
Mounting Plate Length (in.)11
Mounting Plate Width (in.)11
Base Height (in.)11-1/2
Rotation (degrees)360
Piston Stroke (in.)16-3/8
Piston Stroke Per Pump (in.)1/16
Compatible ProductsQuick Ship
Capacity (lbs)500
MaterialStainless Steel
ColorSilver
Freight Class77.5
Country of OriginCN
Warranty90 Days (Limited - Parts)
