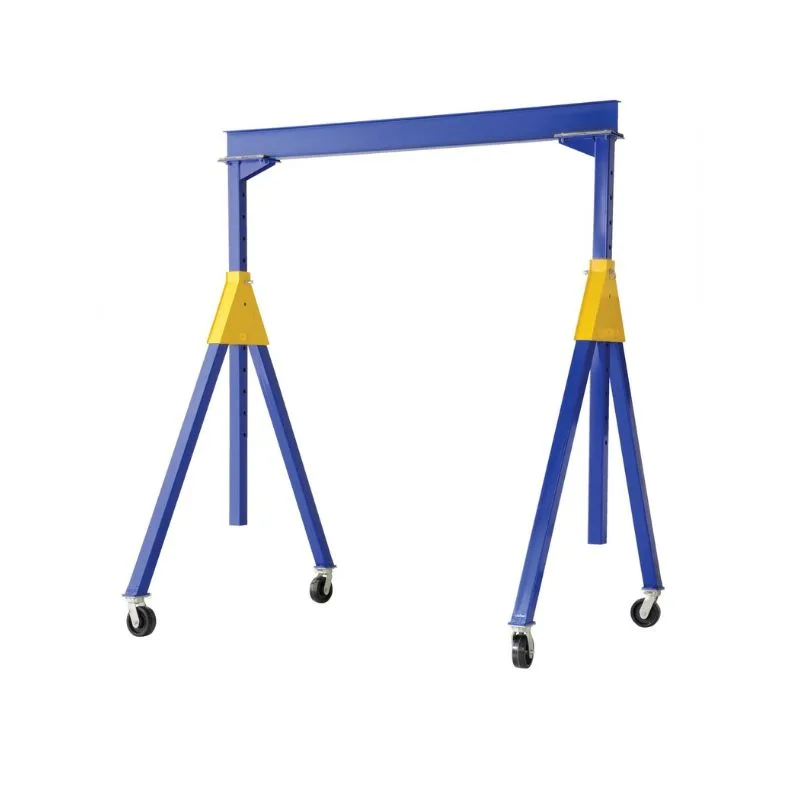

Vestil AHSN-8-15-16 Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters

Vestil Item #AHSN-8-15-16 · MFR #AHSN-8-15-16
Quick Answer: The Vestil AHSN-8-15-16 Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters is a gantry crane with 8000 load capacity and 10-1/8 i beam height. Priced at $5,186.07.
  • The Vestil AHSN-8-15-16 Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters is designed for transporting and positioning materials along the beams length.
  • The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective.
  • Unit comes standard four (4) position locking swivel casters with roller bearings.
  • Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right.
  • Height is adjustable in 6″ increments.
Brand
Vestil
Condition
New
Weight
1152 lb
Dimensions
179.75″L × 88″W × 203.0625″H
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Vestil AHSN-8-15-16 Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) position locking swivel casters with roller bearings. Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • Easily maneuvered between stations when unloaded

Specifications

Item NumberAHSN-8-15-16
Manufacturer Part #AHSN-8-15-16
Brand Vestil
Weight1152 lb
Dimensions (L×W×H)179.75″ × 88″ × 203.0625″
Lead Time25 days for 1–6 units · call for 7+ units
Load Capacity (lbs.)8000
I Beam Length (ft.)15
I Beam Height (in.)10-1/8
I Beam Flange Width (in.)4
I Beam Usable Height (in.)127 to 193
Base Width (in.)88
Caster StyleSwivel (4) Position Locking Casters
Caster MaterialPhenolic
Usable Travel Distance (in.)149-3/4
StyleKnock-Down
Capacity (lbs)8000
MaterialSteel
ColorBlue
Freight Class77.5
Country of OriginUS
Warranty1 Year (Limited - Parts)
