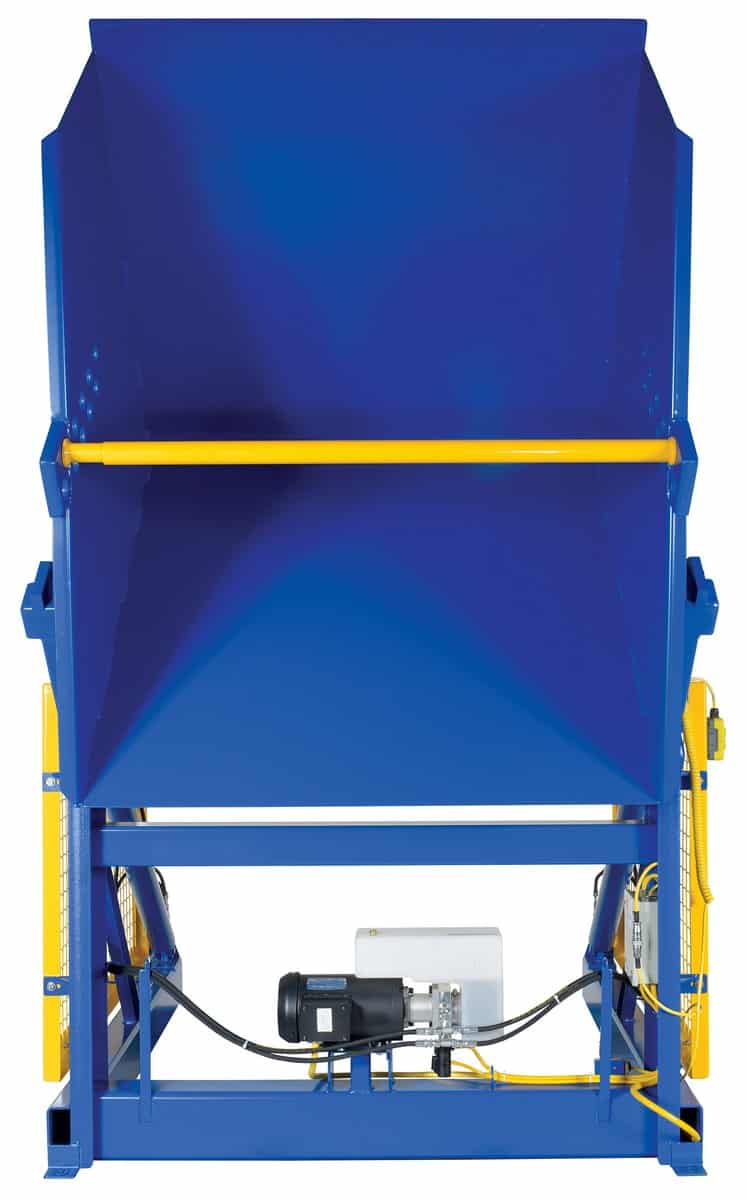

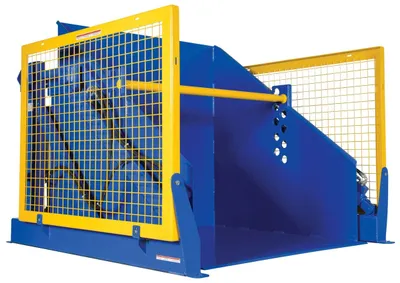

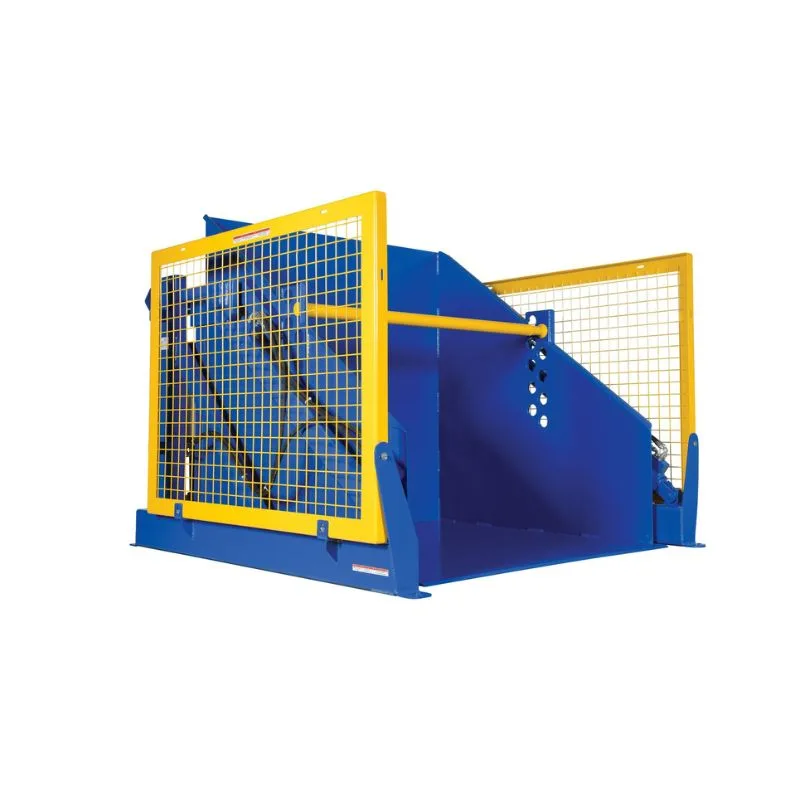

Vestil HBD-6-36 Steel Electric Hydraulic Box Dumper

Vestil Item #HBD-6-36 · MFR #HBD-6-36
Quick Answer: The Vestil HBD-6-36 Steel Electric Hydraulic Box Dumper is a dumper with 6000 lbs. load capacity and 36" dump height. Priced at $10,311.80, in stock with factory-direct shipping.
  • The Vestil HBD-6-36 Steel Electric Hydraulic Box Dumper is designed for controlled dumping of material from boxes, crates, and other types of containers.
  • It is designed for pallet truck loading and unloading.
  • The retaining bar adjusts to accommodate a wide range of container heights.
  • Each dump height has a hold down range and an internal power unit with a hand held control standard.
  • It has a heavy-duty welded steel construction with protective mesh side screens included.
Brand
Vestil
Condition
New
Weight
1804 lb
Dimensions
69″L × 69″W × 53.5″H
Category
Dumpers
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (855) 719-1415 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Vestil HBD-6-36 Steel Electric Hydraulic Box Dumper is designed for controlled dumping of material from boxes, crates, and other types of containers. It is designed for pallet truck loading and unloading. The retaining bar adjusts to accommodate a wide range of container heights. Each dump height has a hold down range and an internal power unit with a hand held control standard. It has a heavy-duty welded steel construction with protective mesh side screens included.

  • Universal design will dump contents of many types and sizes of containers
  • 135° maximum dump angle may be stopped at any point during the dump cycle
  • Complete electric/hydraulic power unit to rotate chute at the push of a button
  • Safety mesh screens included on each side of unit for added safety

Specifications

Item NumberHBD-6-36
Manufacturer Part #HBD-6-36
Brand Vestil
Weight1804 lb
Dimensions (L×W×H)69″ × 69″ × 53.5″
Lead Time35 days for 1–2 units · call for 3+ units
Load Capacity (lbs.)6000 lbs.
Dump Height (in.)36"
Rotated Height (in.)111
Lowered Height (in.)3/8
Hold Downs (in.)18 to 36
Dump Angle (degrees)45
Motor Horsepower5.5
Voltage460/3 Phase
Duty Cycle Per Hour15
Hand Control Voltage24
Hand Control Length (ft.)8
Standard OutputAC
Cord Length (ft.)2
Capacity (lbs)6000
MaterialSteel
ColorBlue / Yellow
FinishLiquid Coat and Powder Coat
Freight Class100
Country of OriginUS
Warranty1 Year (Limited - Parts)

Documents & Resources

Owner's Manuals

Approval Drawings

Testing Certificates

Warranty

Customer Reviews

No reviews yet — be the first to review this product.

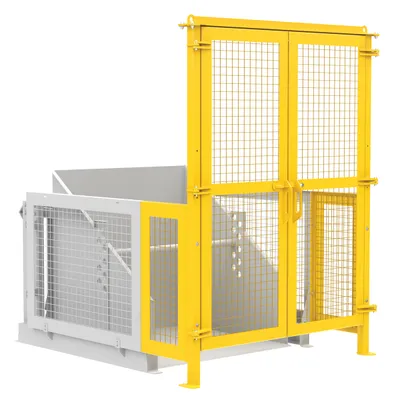

Options & Accessories for This Product
