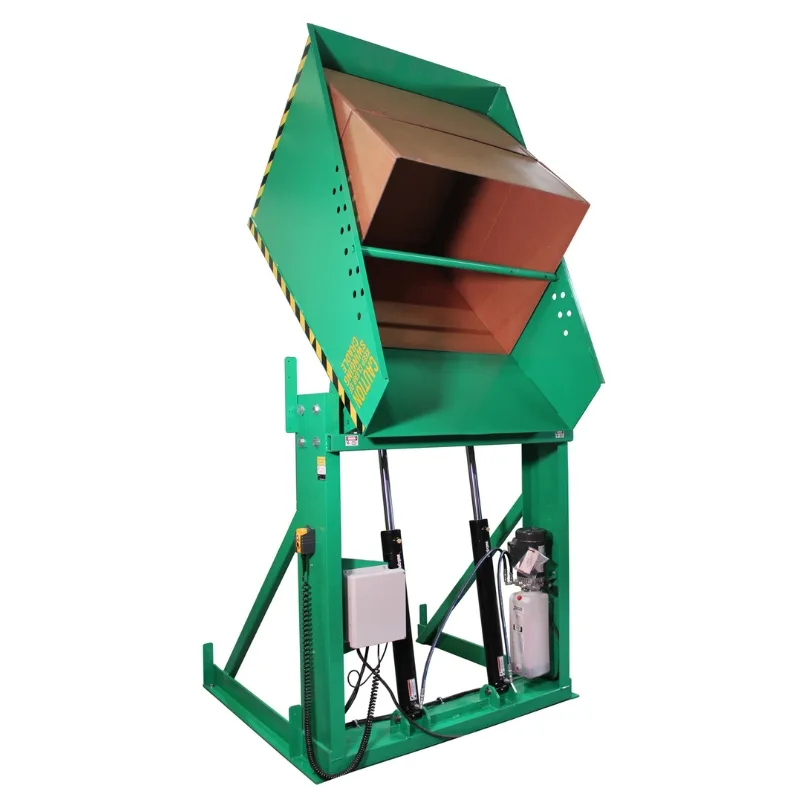

Box Dumper F89015, 2,000 lb. Capacity

Valley Craft Item #F89015 · MFR #F89015
Quick Answer: The Box Dumper F89015, 2,000 lb. Capacity by Valley Craft is a dumper with 2000 lbs. load capacity and 78" frame height. Priced at $10,190, in stock with factory-direct shipping.
  • The Valley Craft Box Dumper (F89015) includes a spacious 51” x 48” chute and is capable of lifting and dumping loads up to 2,000 lbs.
  • at a height of 72”.
  • It operates on 230V power with a 2HP motor, and uses a simple hand-held pendant to control a 30-second powered dump cycle.
  • Containers can be loaded manually or with a pallet jack, and secured with an adjustable hold-down bar.
  • This unit ships fully assembled, is easy to install, and is proudly made in the U.S.A.
Condition
New
Weight
1950 lb
Category
Dumpers
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (855) 719-1415 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

Valley Craft’s Box Dumper (F89015) makes it easy to dump containers safely and efficiently, while helping to reduce physical strain on workers. It’s powered by a 230V, 2HP motor and features a 51” x 48” chute with a 72” dump height and a 2,000 lb. load capacity. The spring-loaded hold-down bar adjusts in 2” increments to keep containers between 30” and 56” tall securely in place. You can control the dumping process using a magnetic-backed, hand-held pendant, which operates a quick 30-second dump cycle with gravity return. The dumper is shipped fully assembled and ready to use, and it’s built from heavy-duty 7-gauge steel with a durable green powder coat finish.

Specifications

Item NumberF89015
Manufacturer Part #F89015
Brand Valley Craft
Weight1950 lb

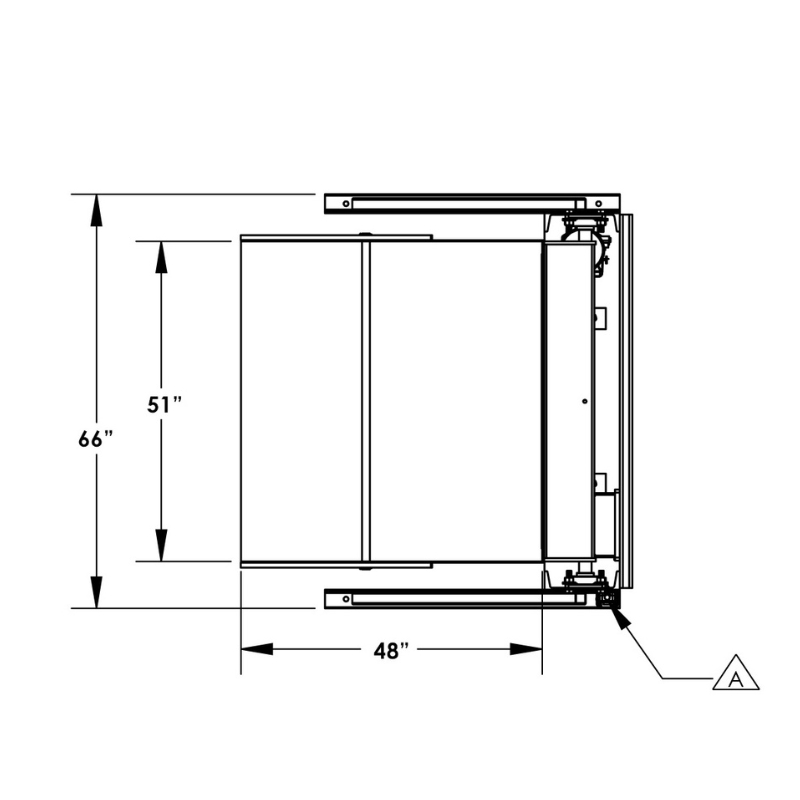

Dimensions (in.)66"W x 62"D x 84"H
Load Capacity (lbs.)2000 lbs.
ColorGreen
FinishPowder Coat Paint
Chute Size (in.)51"W x 48"D
Frame Height (in.)78"
Chute Height (in.)84"
Chute Reach (in.)5"
Dump Height (in.)72"
Overhead Clearance (in.)167"
Horizontal Clearance (in.)101"
Dump Angle (degrees)45��
Voltage230
Horsepower2
Power Source3 Phase
Lead Time20 days
