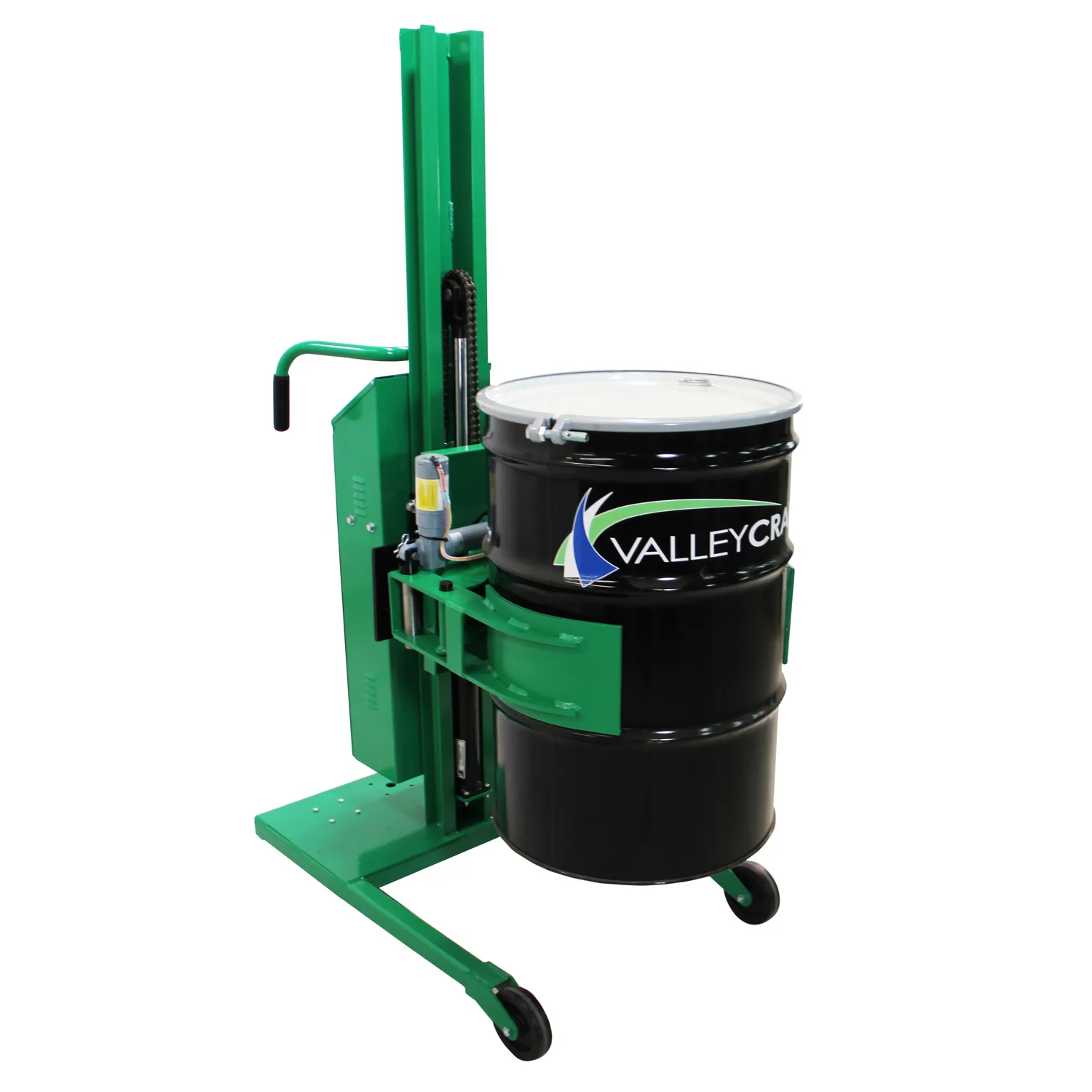

Drum Lift & Rotator Semi-Powered F88588C0, 800 lb. Capacity
π Hover to zoom Β· Click βΆ for gallery
Valley Craft (F88586C2) is a game-changer in the world of drum handling. This US-made standalone unit does not require a forklift and is powered by a 24V battery to lift, rotate, and maneuver drums with a capacity of up to 800lbs, anywhere in your facility. The heavy-duty steel construction with a premium green powder coat finish can safely handle drums of 30-55 gallons, with the ability to raise the middle of the drum to a maximum height of 84", continuously rotate 360Β° in either direction, and easily maneuver on 4 casters. With accessory options for added convenience and safety, this unit ships fully assembled and ready to work for you.
β’ Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
β’ Standalone unit (no forklift required).
β’ 24V battery powered lift and rotate, manual drive.
β’ Raise middle of drum to a maximum height of 84β off the floor.
β’ Minimum center grip height of 13β off the floor.
β’ Rotate 360Β° continuously in either direction, at 6 RPM
β’ Straddle legs extend under pallets, shelving, or on outside of drums.
β’ Electronic jaws for securing drums.
β’ Compatible with steel/plastic/fiber drums, 30-55 gallons (18-24β in diameter).
β’ Manuevers easily on 4 casters: (2) 6" front rigid, (2) 4" rear swivel.
β’ 45"L x 30"W x 90"H.
β’ 800 lb. capacity.
β’ Heavy gauge steel construction.
β’ Premium powder coat paint finish in green.
β’ Accessory options include: floor lock (sold separately).
β’ Ships fully assembled, ready to use.
β’ Made in the U.S.A.
| Item Number | F88586C2 |
|---|---|
| Manufacturer Part # | F88586C2 |
| Brand | |
| Weight | 630 lb |
| Dimensions (in.) | 45" x 30" x 90" |
| Load Capacity (lbs.) | 800 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Drum Type | 18 - 24" in diameter, and fiber drums, Plastic, Steel |
| Drum Diameter (in.) | 18 - 24" |
| Drum Capacity (gal.) | 30/55 gal |
| Function - Lift | Battery Powered Hydraulic Motor |
| Function - Grip | Jaws Actuated with Electric Cylinder |
| Function - Rotate | Battery Powered Hydraulic Motor |
| Max Lift Height (in.) | 84" |
| Lift Distance (in.) | 71" |
| Lift Speed (in./sec) | 3.4 |
| Turning Radius (in.) | 44" |
| Rotation Speed | 360Β°, 6 RPM |
| Jaw Size W x H (in.) | 13" x 8" |
| Base Style | Straddle |
| Power Source | 12V Battery Powered, Rechargable |
| Material | Steel |
| Wheel/Caster Makeup | 2 rigid, 2 swivel |
| Wheel/Caster Qty | 4 |
| Wheel/Caster Dia. (in.) | 4" rear, 6" front |
| Lead Time | 10 days |
